Diagnostic Test Procedure 2

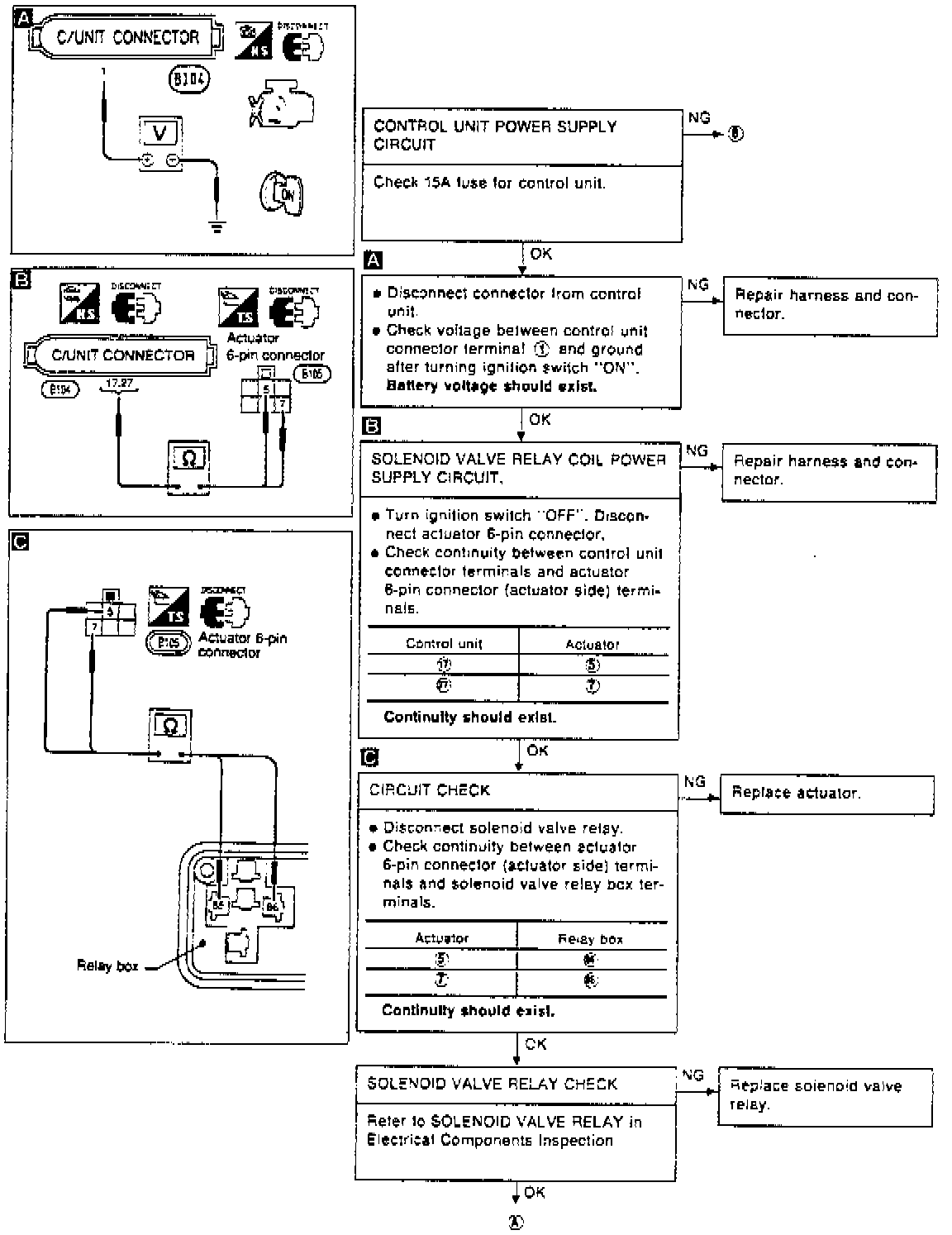

Fig. 119 Test 2: Warning Lamp Stays On Continuously (Part 1 Of 3):

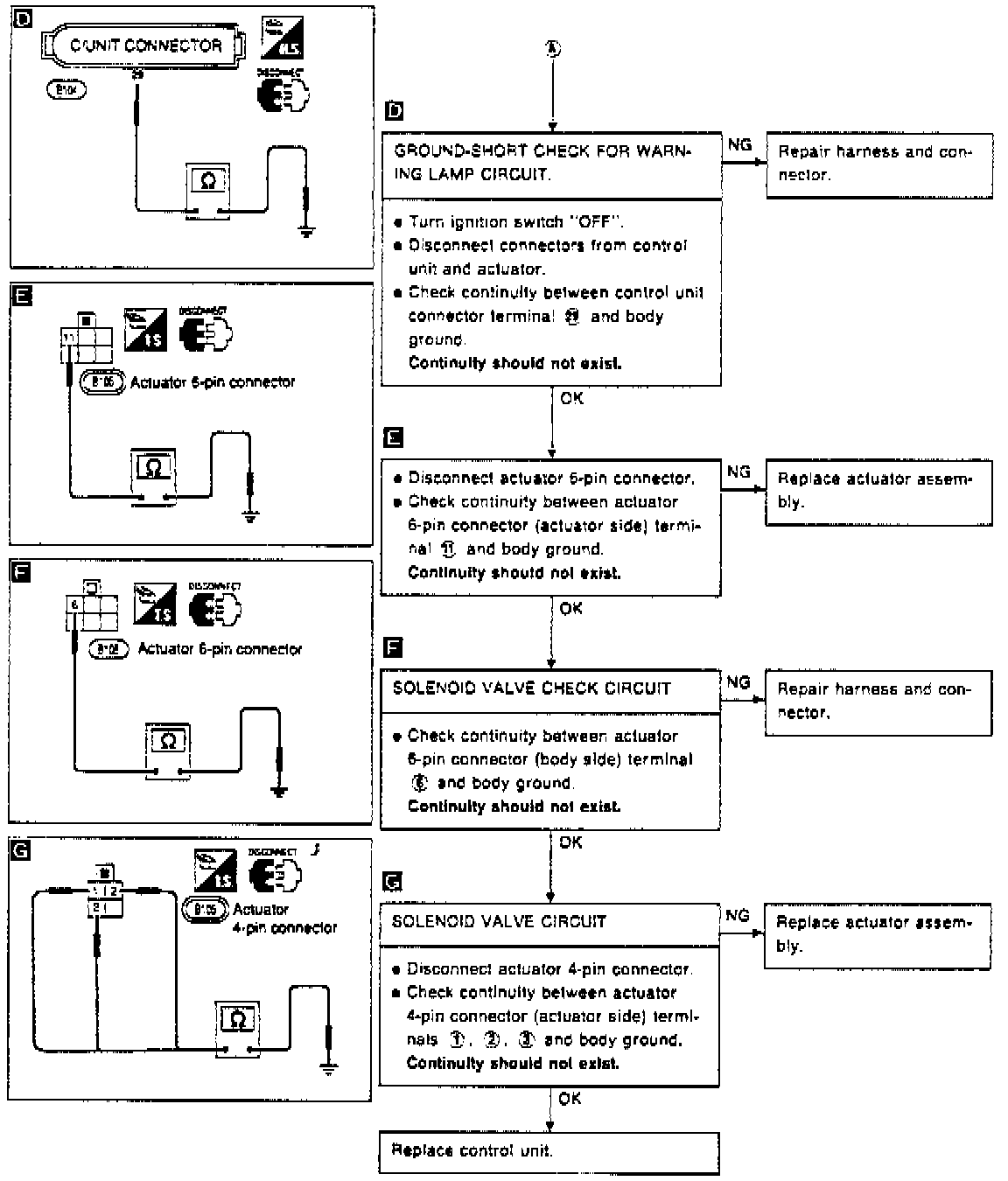

Fig. 119 Test 2: Warning Lamp Stays On Continuously (Part 2 Of 3):

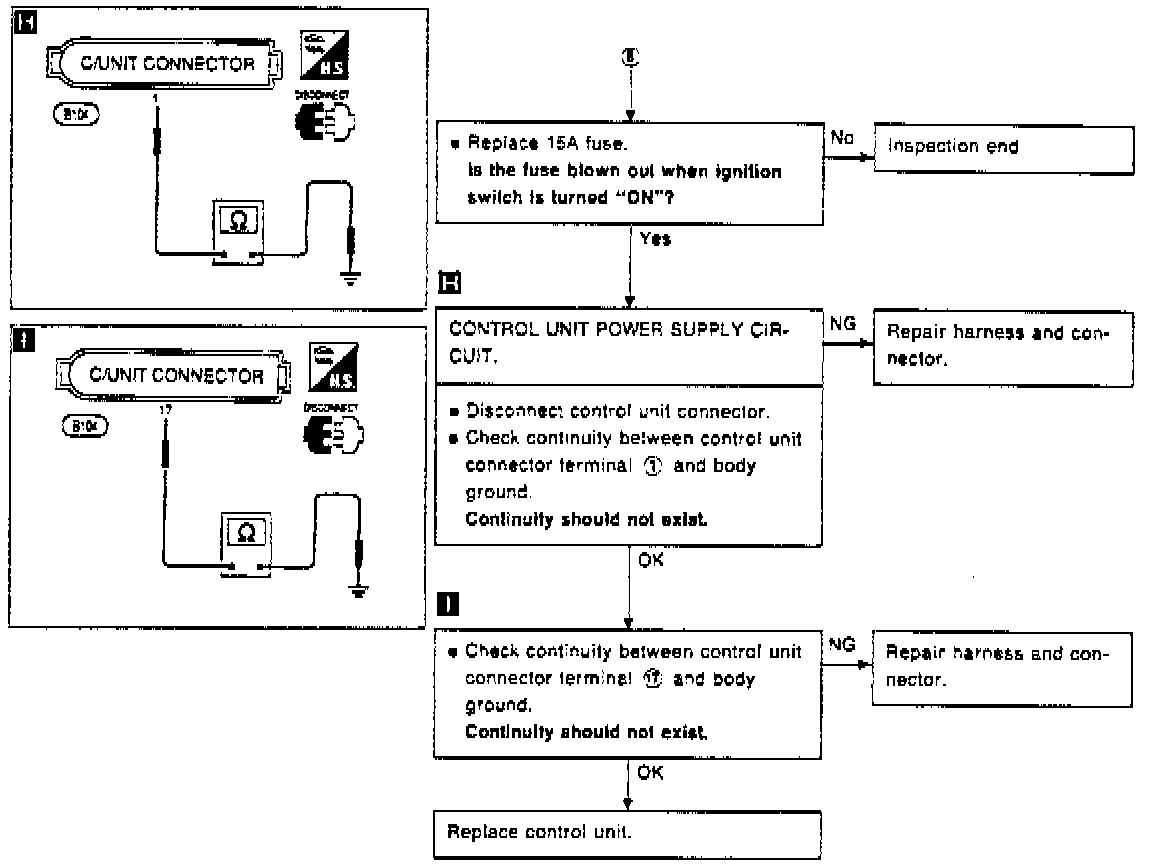

Fig. 119 Test 2: Warning Lamp Stays On Continuously (Part 3 Of 3):
