Symptom Related Diagnostic Procedures

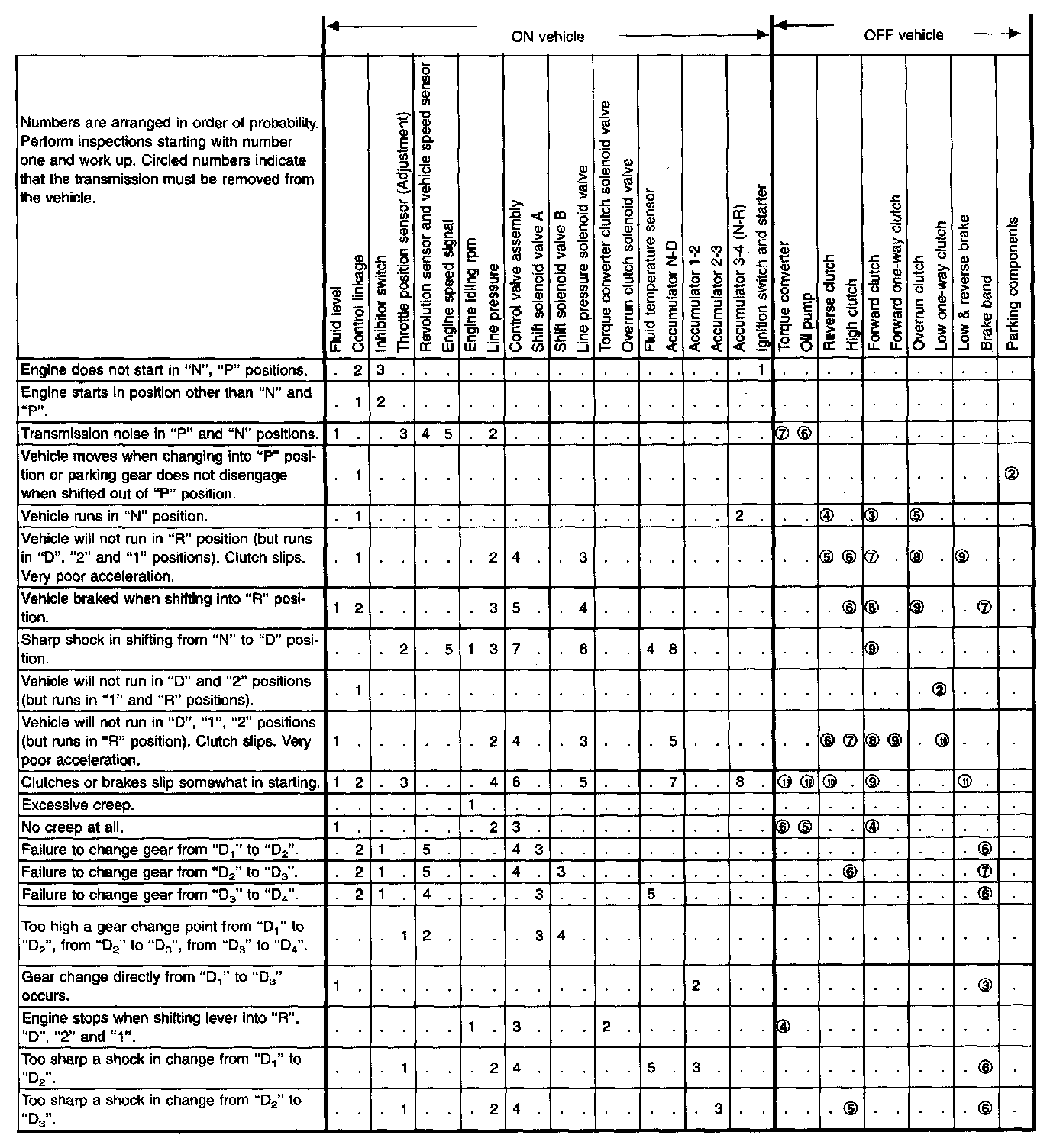

Symptom Chart Part 1:

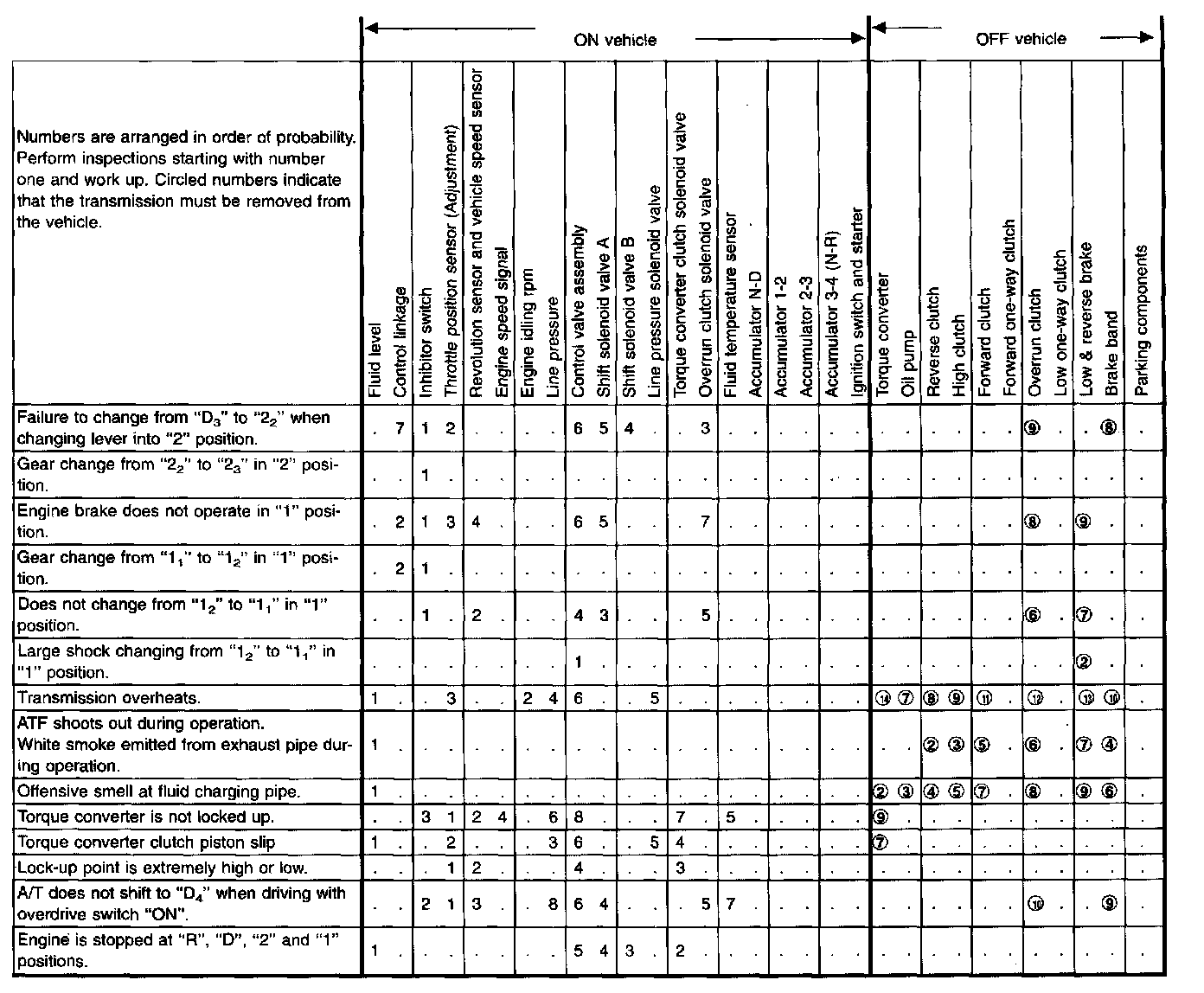

Symptom Chart Part 2:

Symptom Chart Part 3:
