Component Check

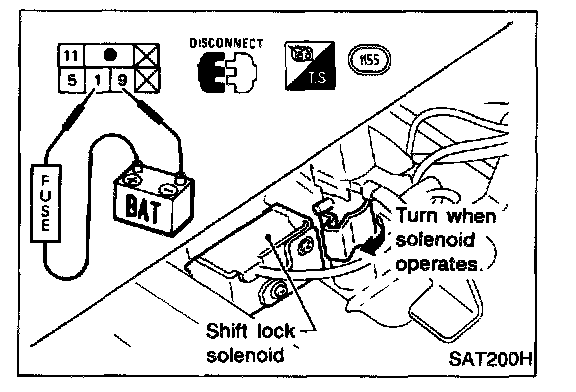

SHIFT LOCK SOLENOID
- Check operation by applying battery voltage to shift lock harness connector.

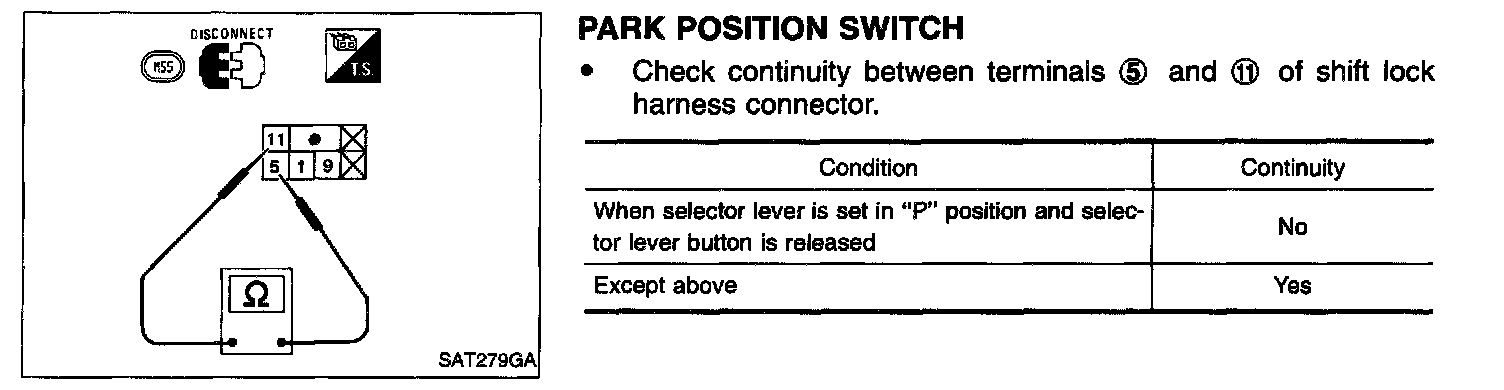

Park Position Switch:




PARK POSITION SWITCH

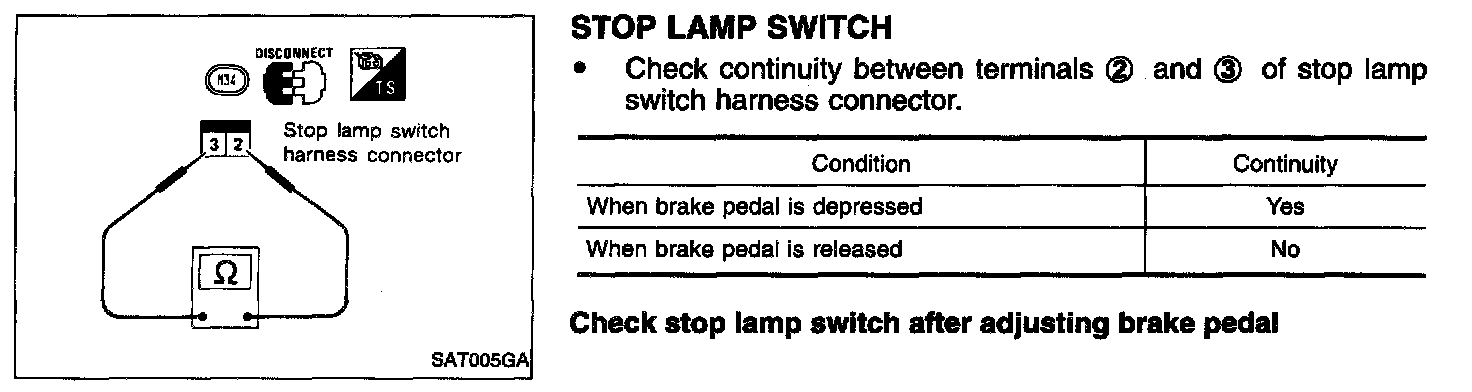

Stop Lamp Switch:




STOP LAMP SWITCH
