Tightening Torque

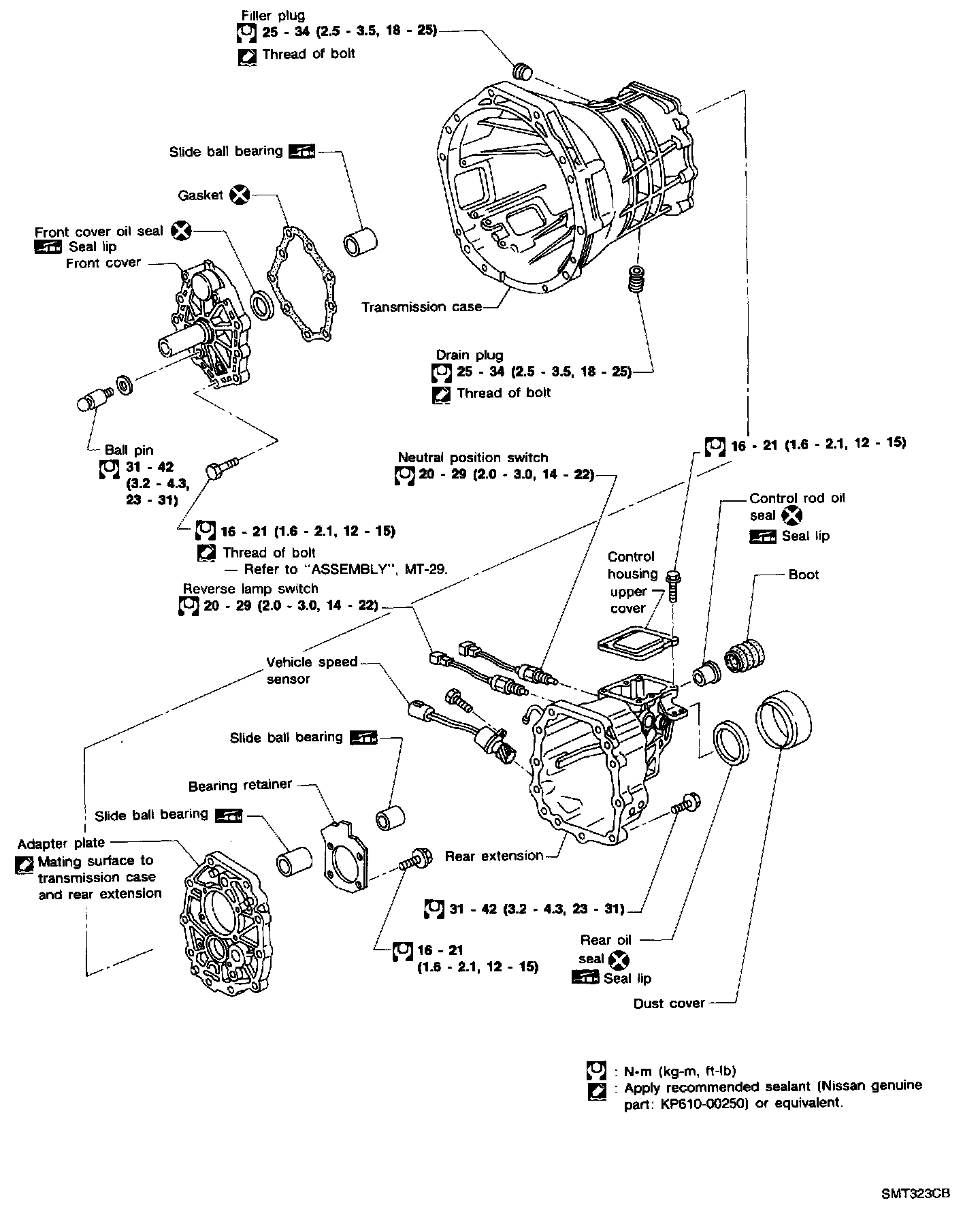

Case Components:

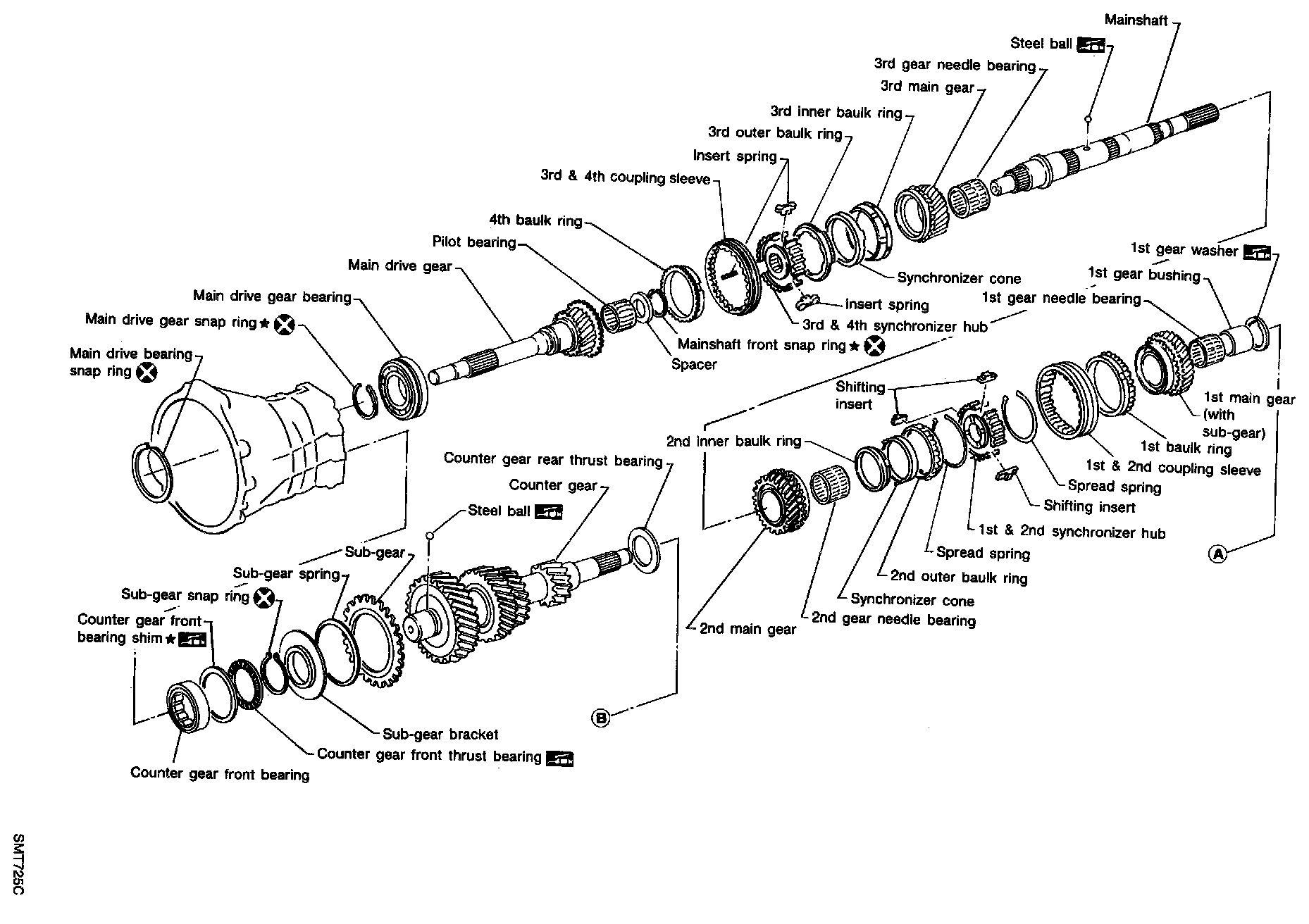

Gear Components Part 1:

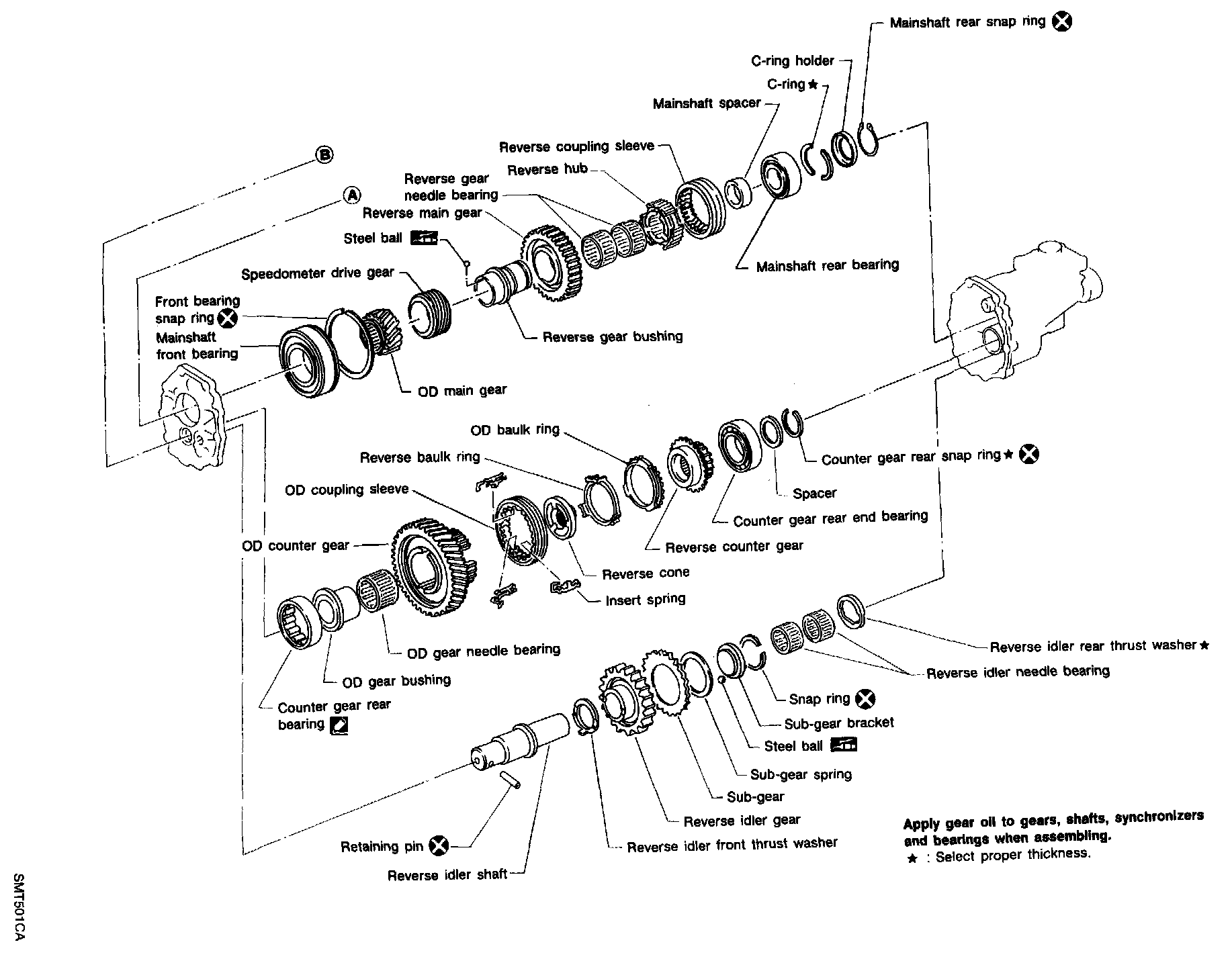

Gear Components Part 2:

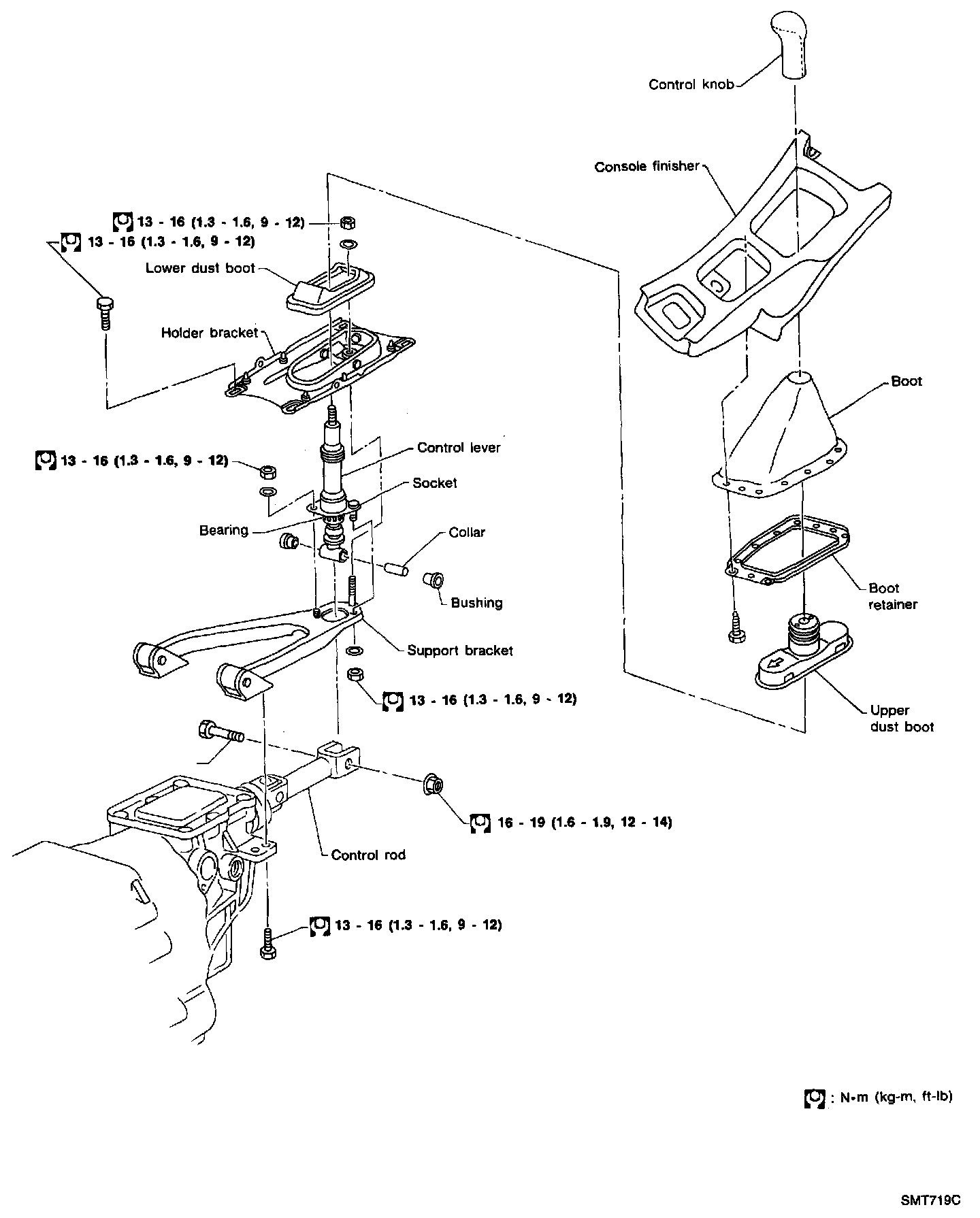

Shift Control Components Part 1:

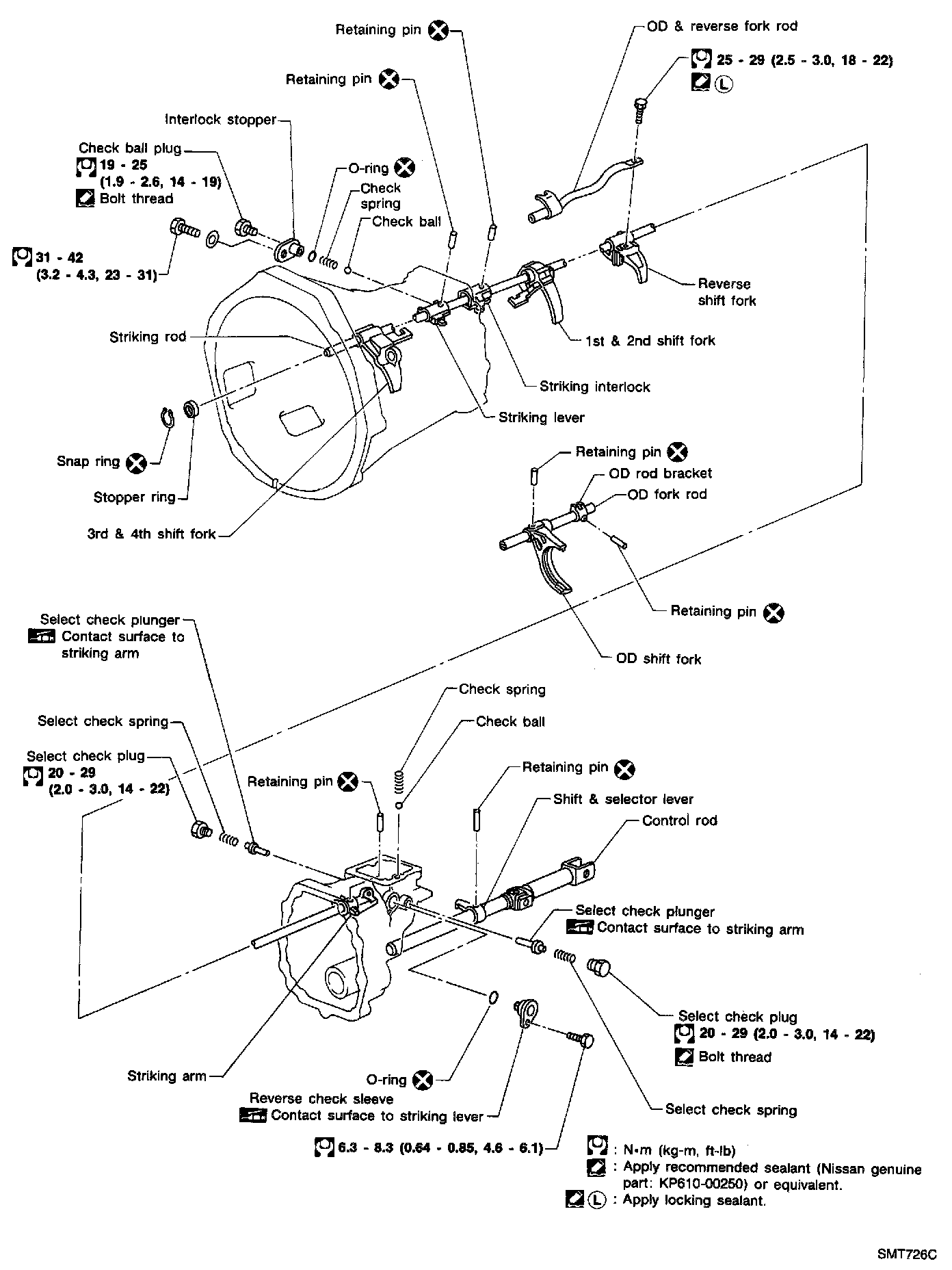

Shift Control Components Part 2:
