Fuel Gauge Sender: Testing and Inspection

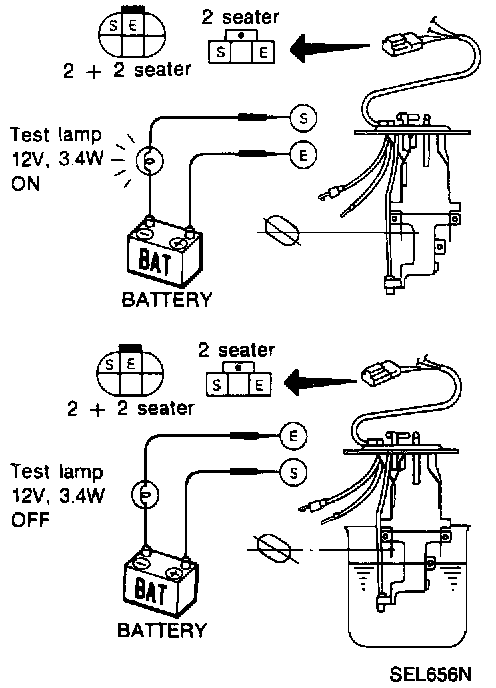

Fuel Warning Lamp Sensor Check:




^ It will take a short time for the bulb to light.
