Oil Pressure Sender: Testing and Inspection

Oil Pressure Sending Unit Check:

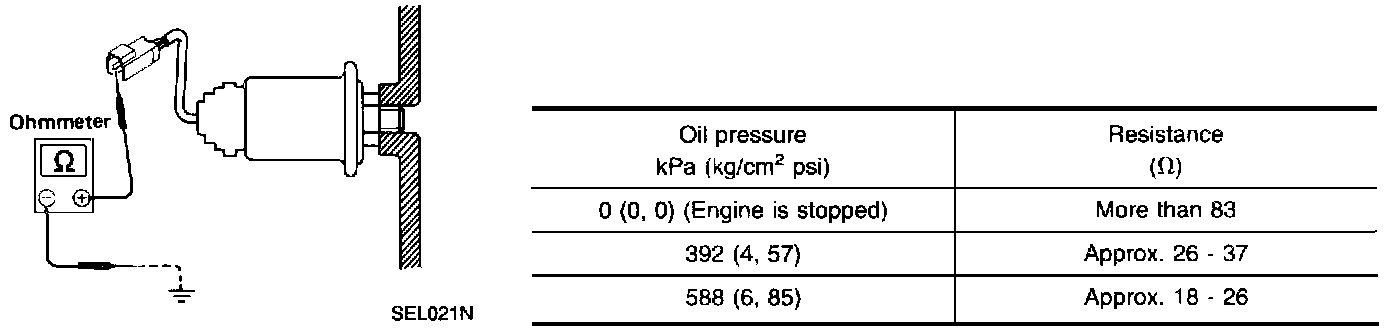

Check the resistance between the terminals of oil pressure sending unit and body ground.
