Cruise Control Switch
>>
Testing and Inspection
>>
Automatic Speed Control Device (ASCD) Main Switch
Automatic Speed Control Device (ASCD) Main Switch

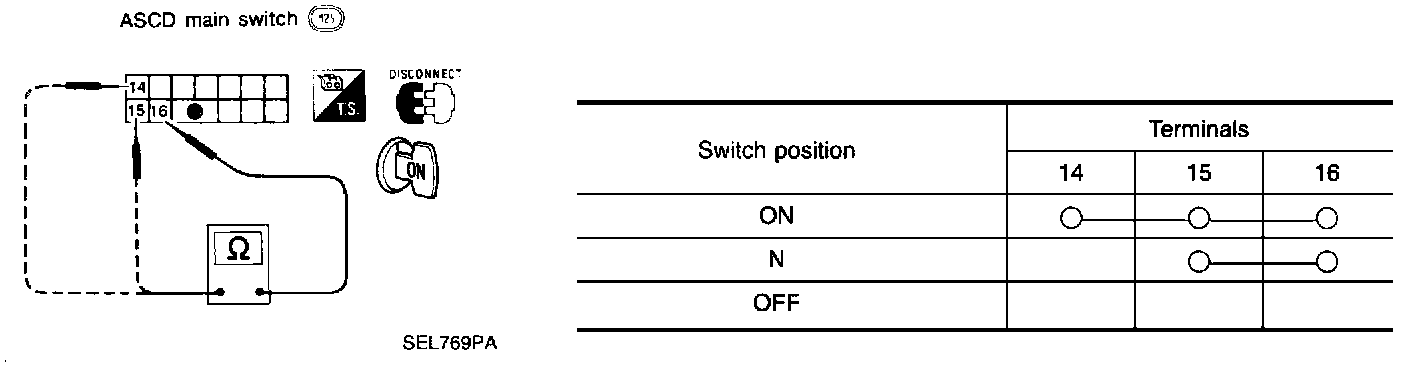

ASCD Main Switch:
Check continuity between terminals by pushing switch to each position.
