DTC 51 - Injector Circuit
DTC 51 - Injector Circuit

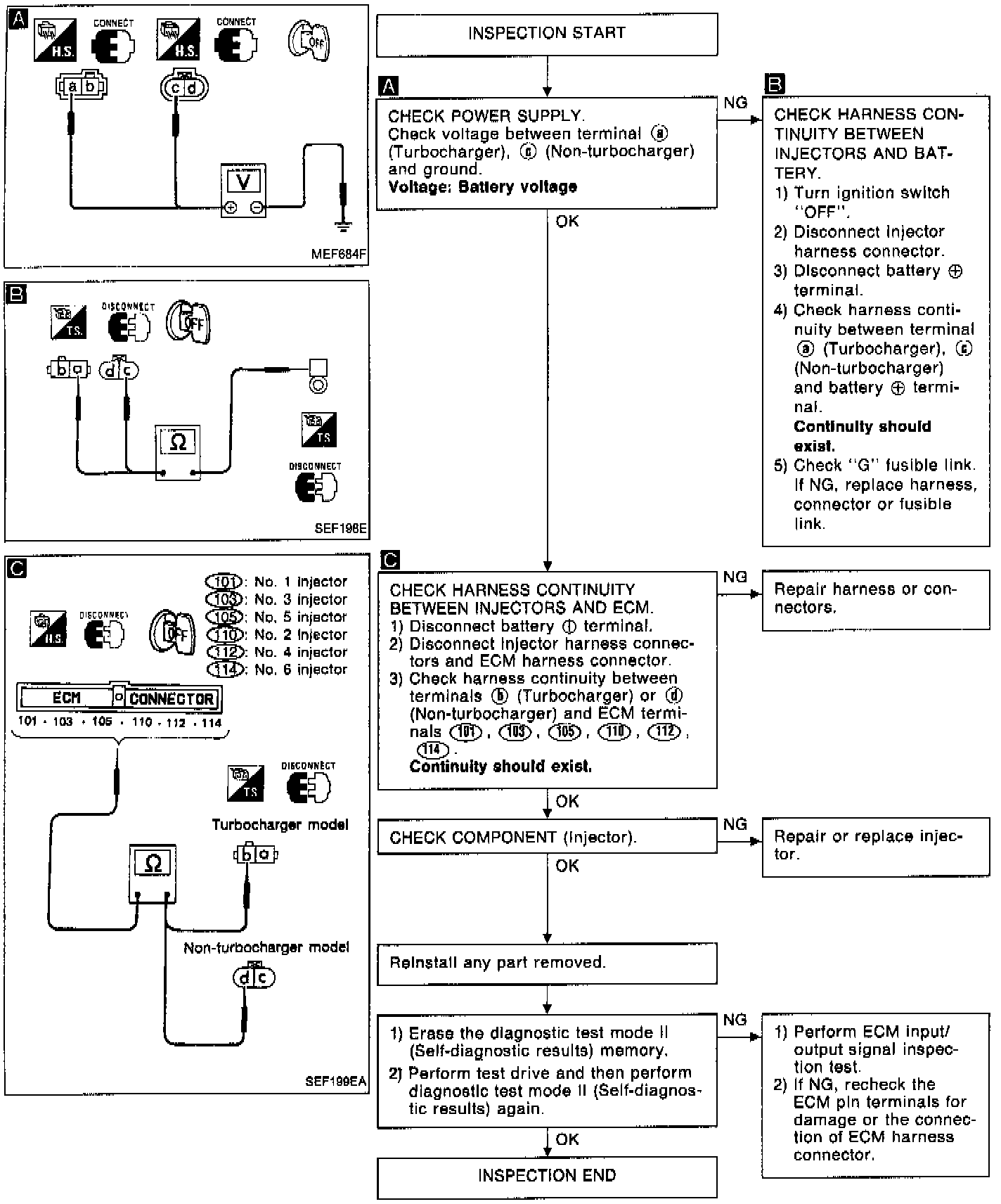

DTC 51 Fuel Injector Diagnostic Chart:
DIAGNOSTIC CHART

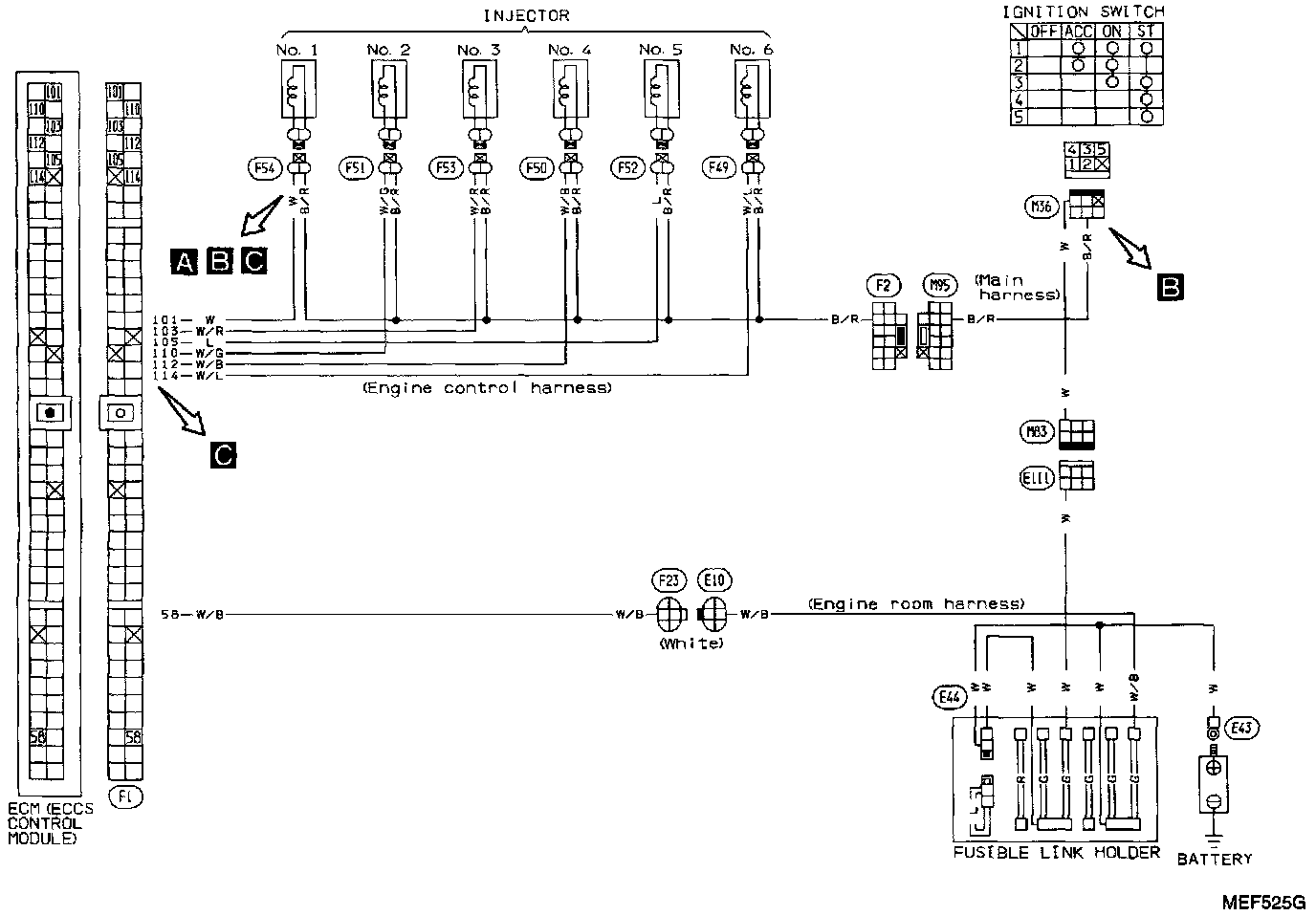

CIRCUIT DIAGRAM

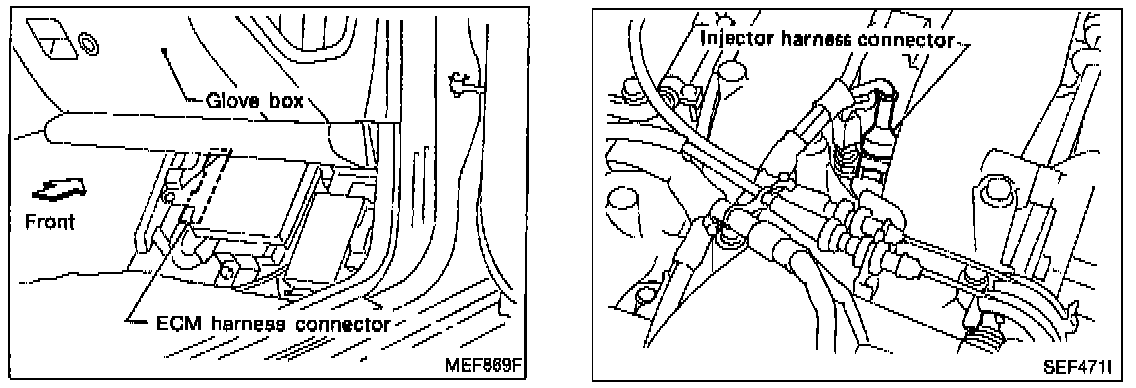

Harness Layout:
HARNESS LAYOUT
