300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Circuit Diagram For Quick Pinpoint Check
Circuit Diagram For Quick Pinpoint Check

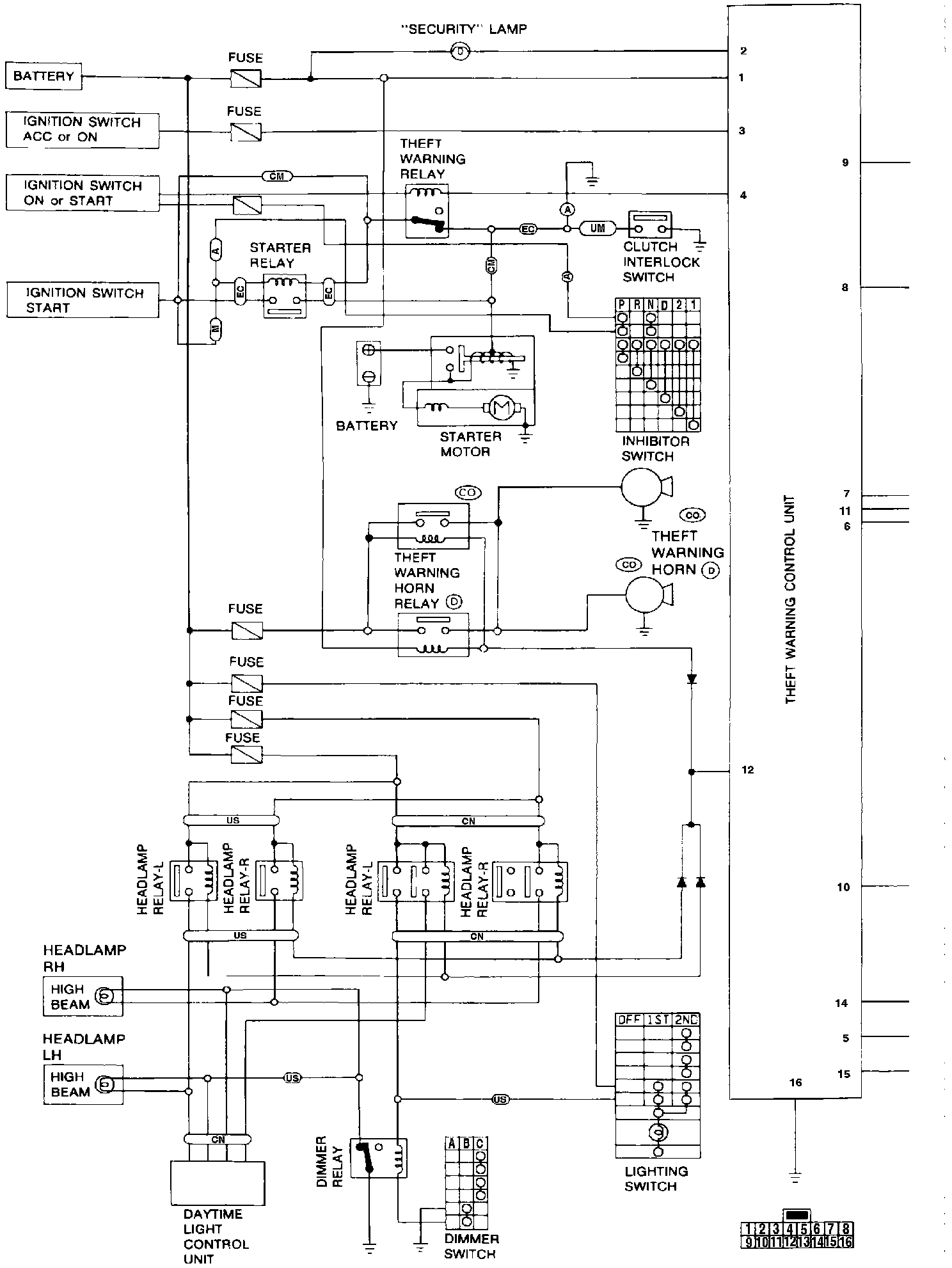

Circuit Diagram For Quick Pinpoint Check (Part 1 Of 2):

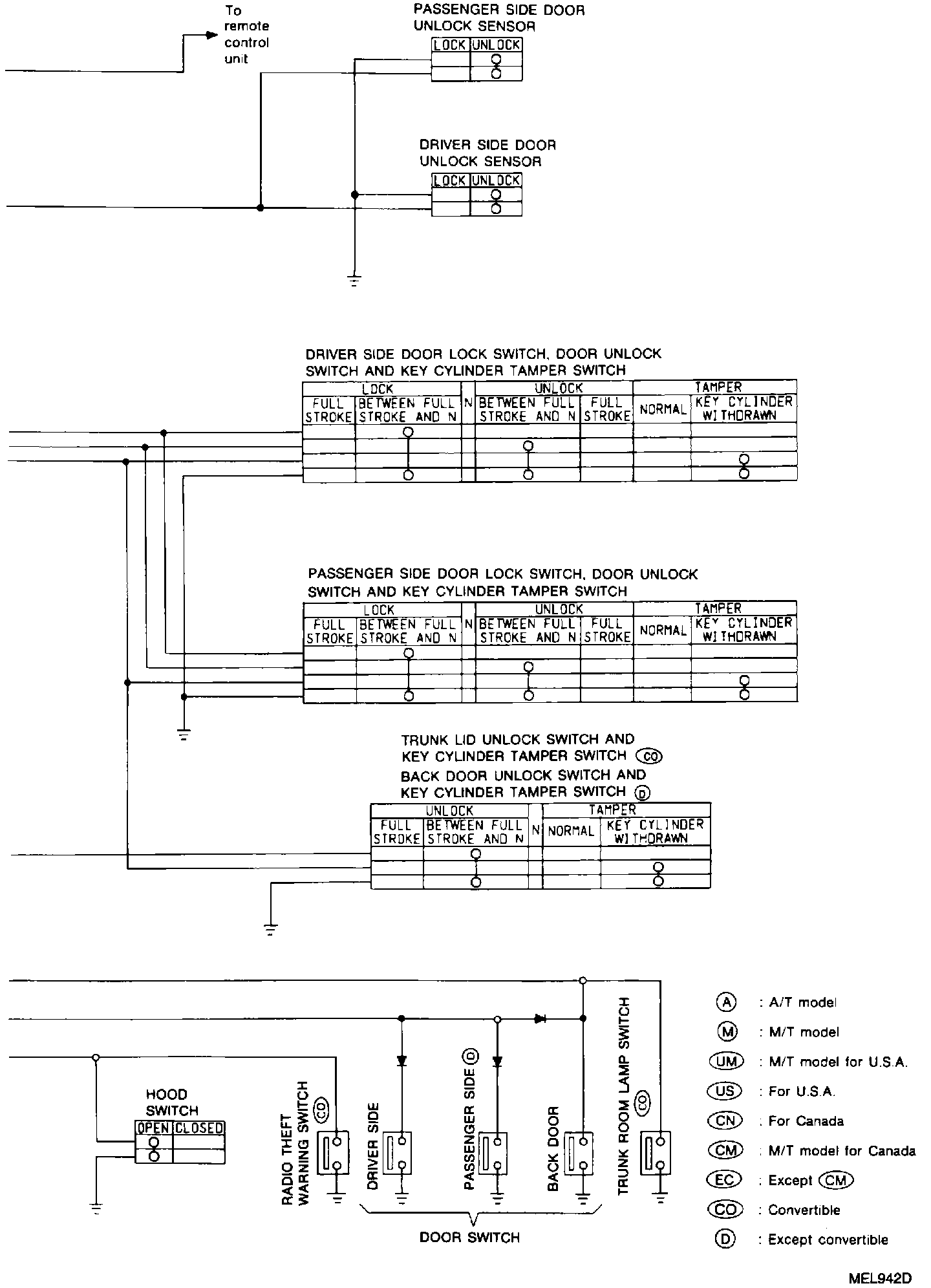

Circuit Diagram For Quick Pinpoint Check (Part 2 Of 2):
