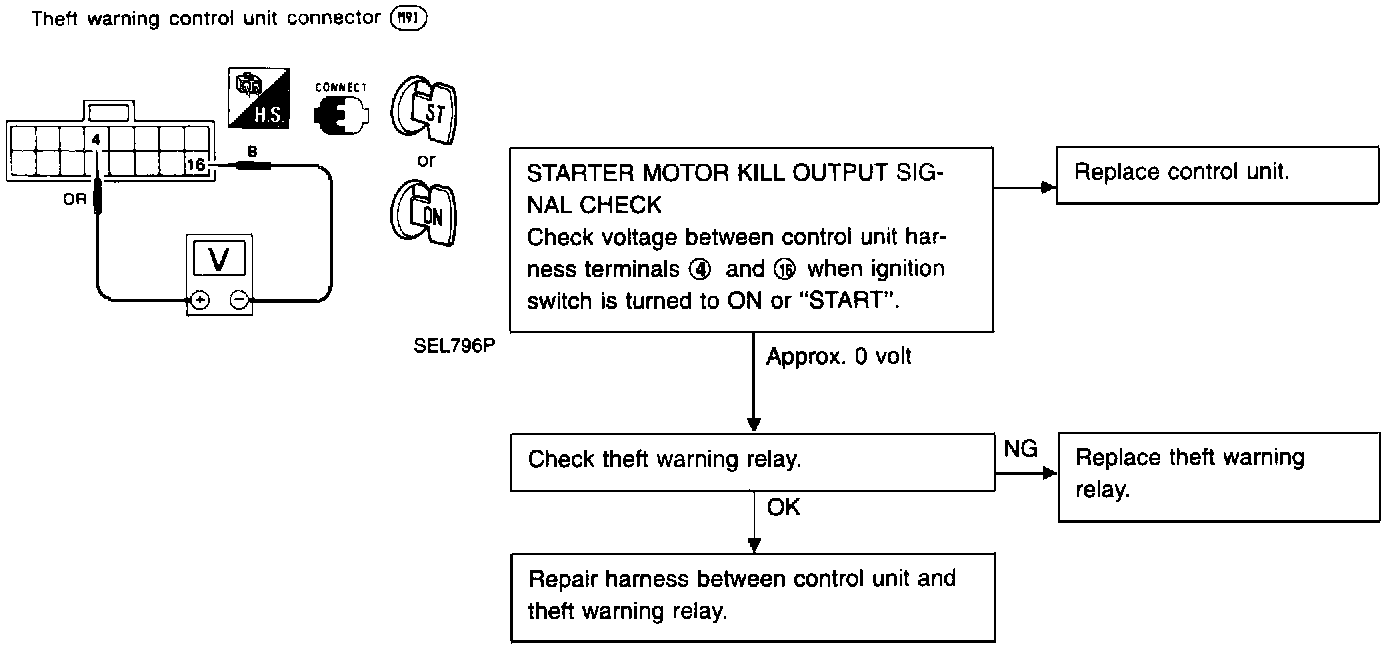

Diagnostic Procedure 6

Diagnostic Procedure 6:




SYMPTOM: STARTER MOTOR can be operated. (Starter-killed phase)
