Wiring Diagram

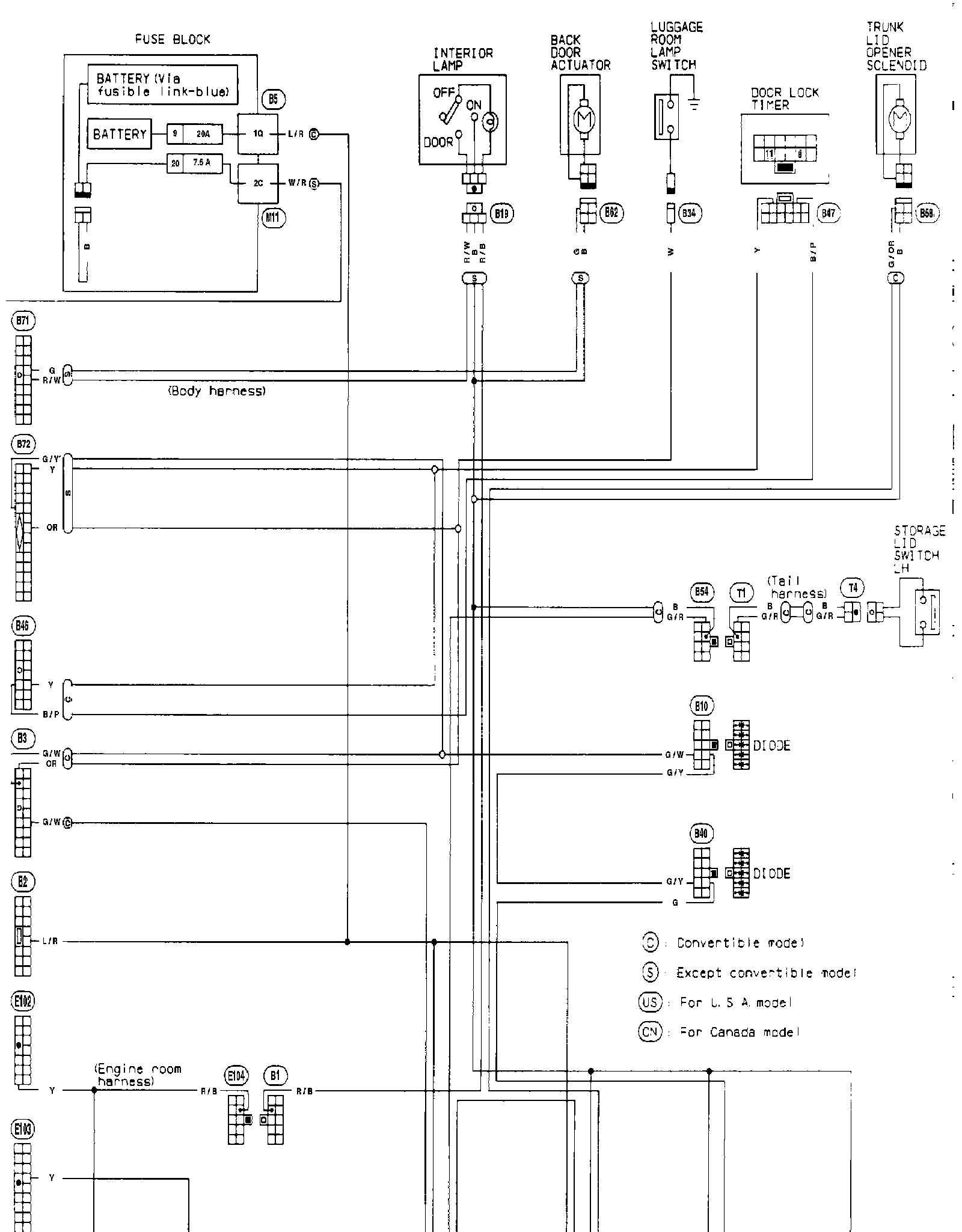

Multi-Remote Control System Wiring Diagram (Part 1 Of 2):

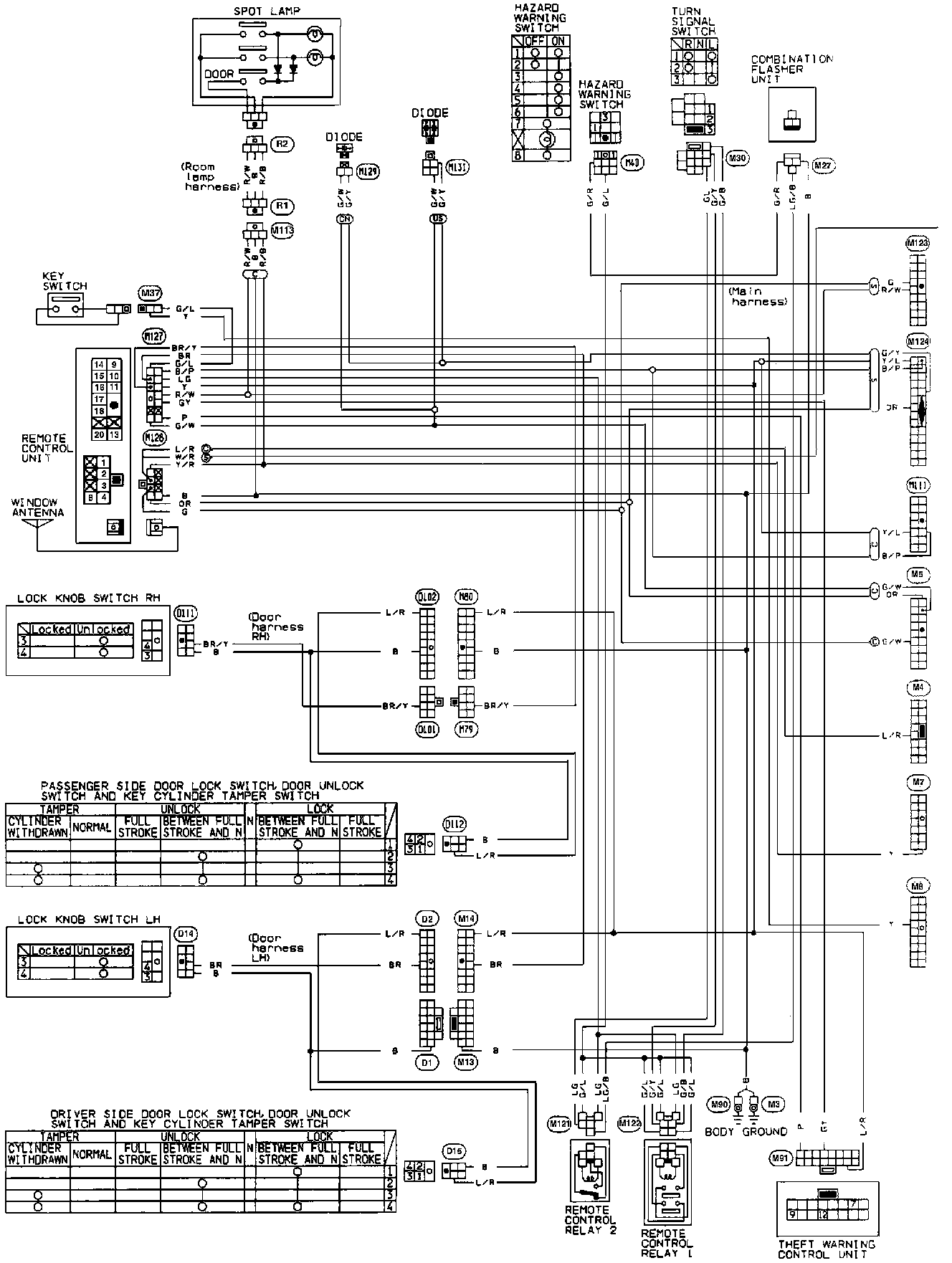

nkMulti-Remote Control System Wiring Diagram (Part 2 Of 2):
