Front

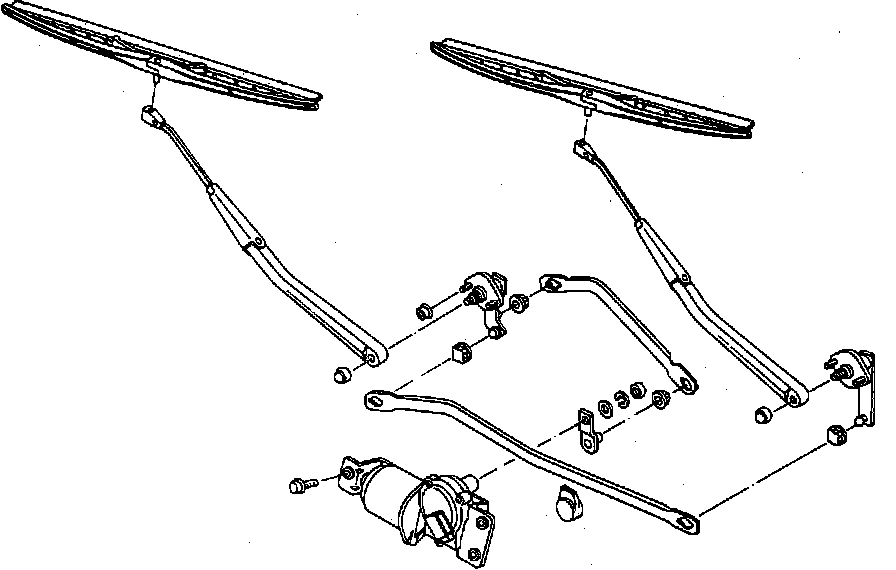

Fig. 10 Exploded View Of Wiper System:

1. Disconnect battery ground cable.
2. Remove wiper arms, then disconnect electrical connector from motor, Fig. 10.
3. Remove top grille retaining screws and top grille.
4. Remove wiper motor mounting bolts and pull motor away from firewall.
5. Disconnect motor shaft from linkage, taking care not to bend linkage.
6. Remove pivot to cowl top retaining nuts, then the wiper motor linkage.
7. Reverse procedure to install.
