Removal

- Remove exhaust tube.

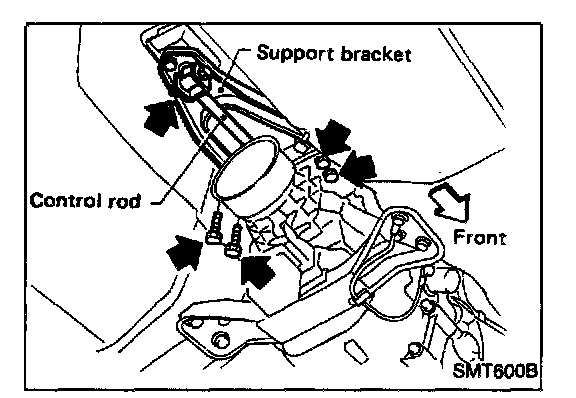

- Remove support bracket from M/T assembly.
- Remove control rod from shift lever.




- Remove propeller shaft.
- Insert plug into rear oil seal after removing propeller shaft.
- Be careful not to damage spline, sleeve yoke and rear oil seal when removing propeller shaft.
- Disconnect reverse lamp switch and neutral position switch harness connectors.
- Support manual transmission with a jack.

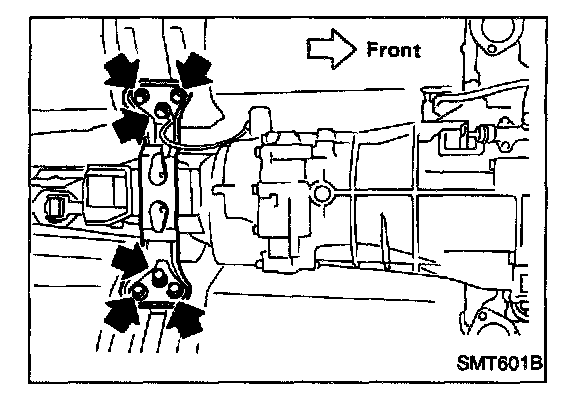

- Remove rear mounting.

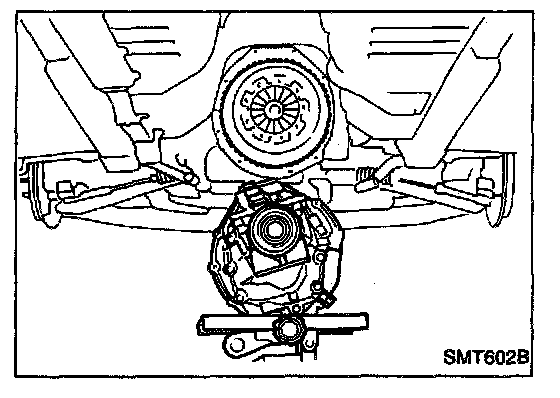

- Lower manual transmission.
