Shift Control Components

1. Mount adapter plate on vise.
2. Remove OD & reverse fork rod.

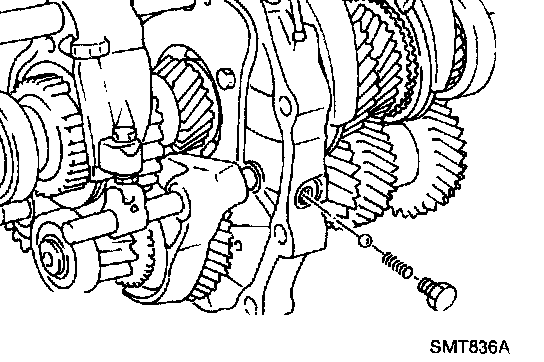

3. Remove check ball plug, check ball and return spring.




4. Drive out retaining pin from striking lever.
5. While pulling out striking rod, remove striking lever and striking interlock. Then remove 1st & 2nd, 3rd & 4th and reverse shift forks.




6. Drive out retaining pin from OD shift fork.
7. Pull out OD fork rod and then remove OD shift fork.
