Clutch Master Cylinder: Service and Repair

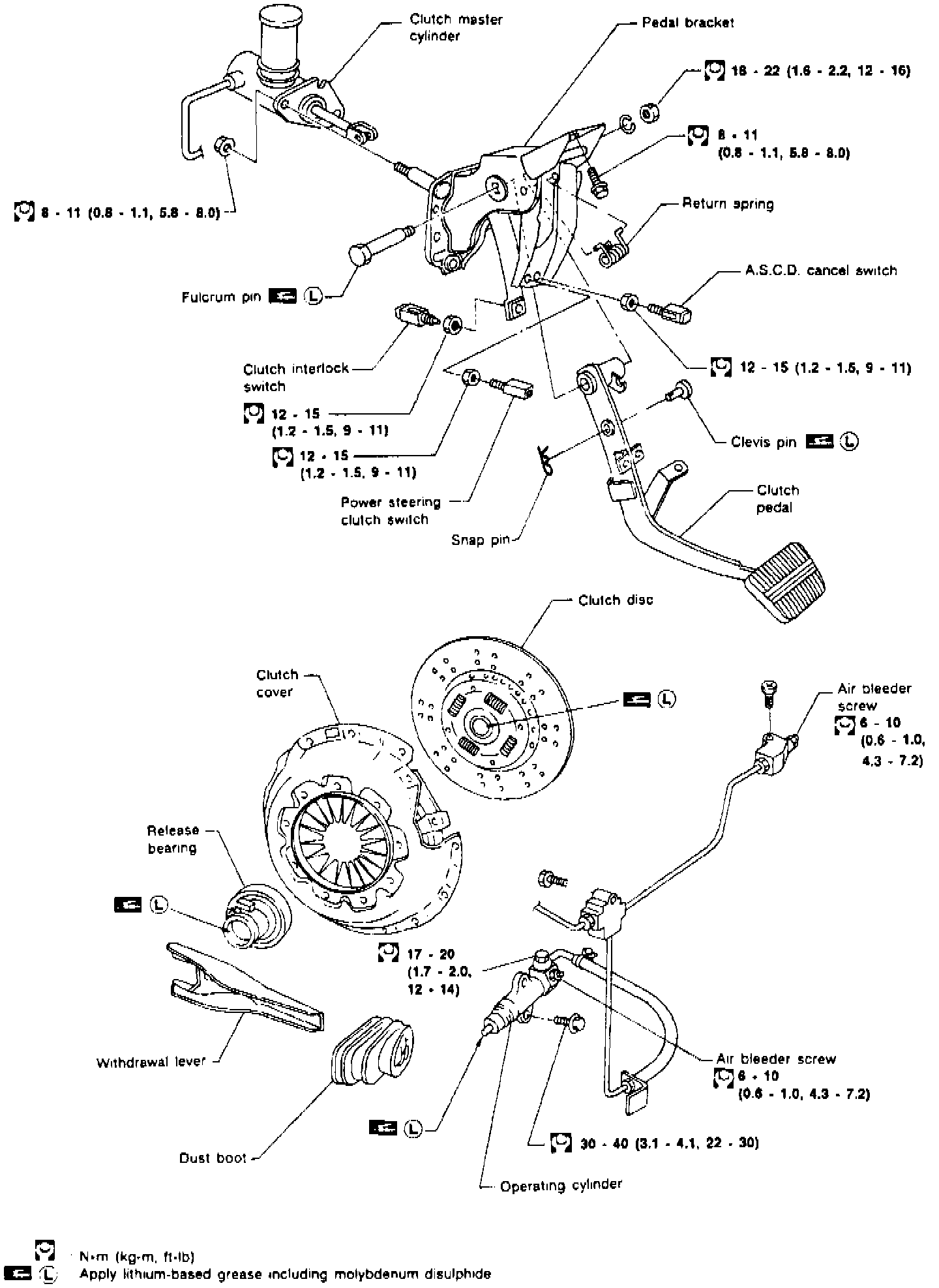

Fig. 7 Exploded View Of Clutch Assembly.:

1. Disconnect brake line from operating cylinder. Do not bend brake line.
2. Remove cylinder attaching bolts, Fig. 7.
3. Remove operating cylinder.
4. Reverse procedure to install, bleed clutch hydraulic system as outlined under Clutch, M/T.
