Key Interlock Cable

KEY INTERLOCK CABLE

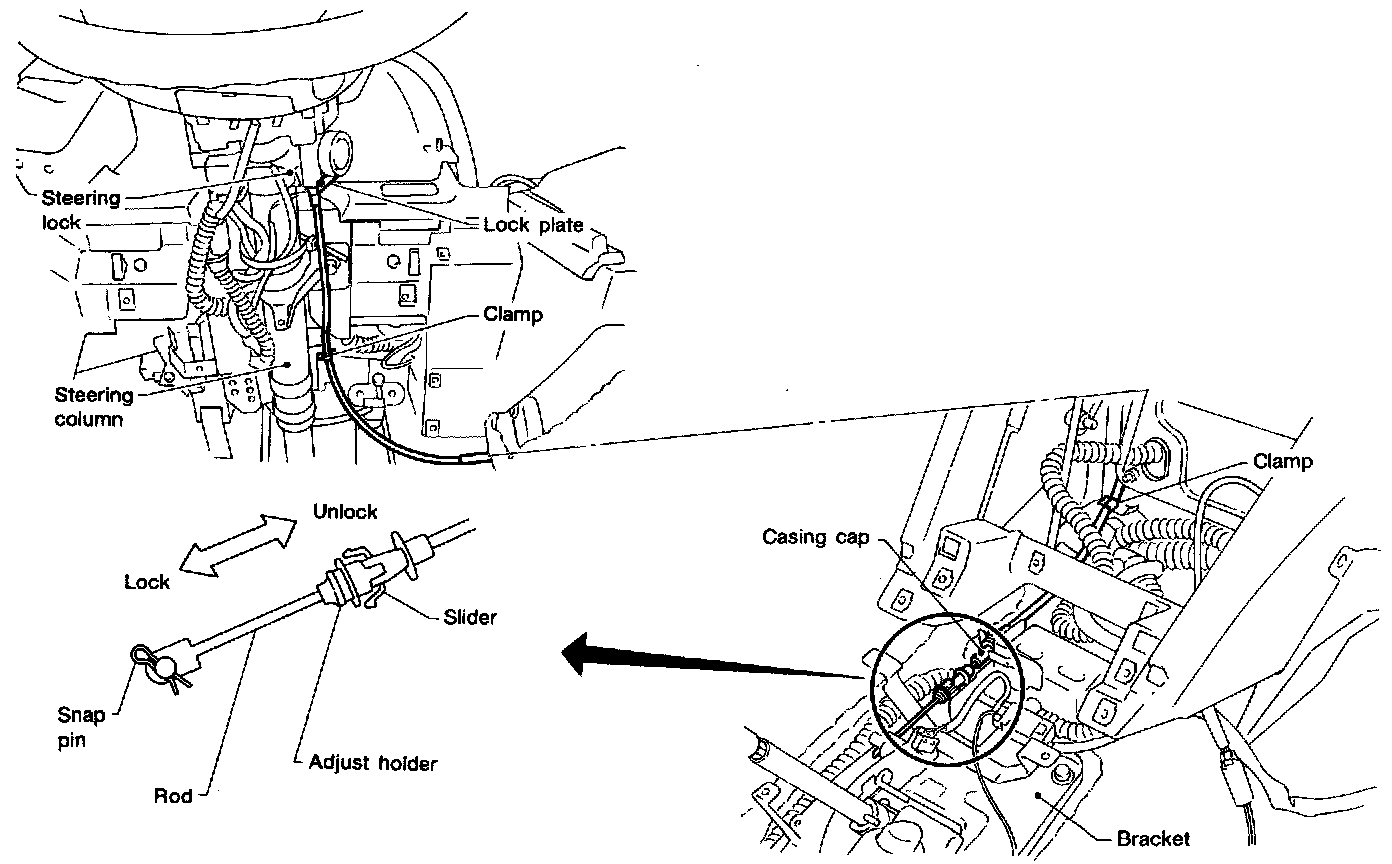

Key Interlock Cable Location:

Removal

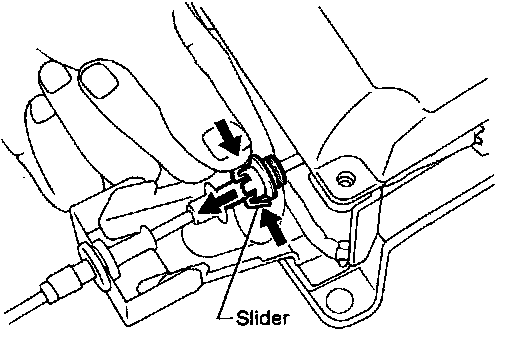

1. Unlock slider from adjuster holder and remove rod from cable

Installation




1. Set key interlock cable to steering lock assembly and install lock plate.
2. Clamp cable to steering column and fix to control cable with band.
3. Set control lever to P position.

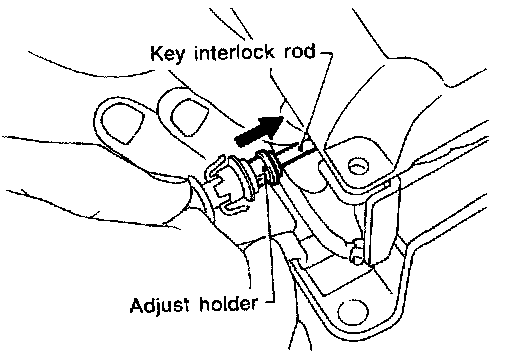

4. Insert interlock rod into adjuster holder.

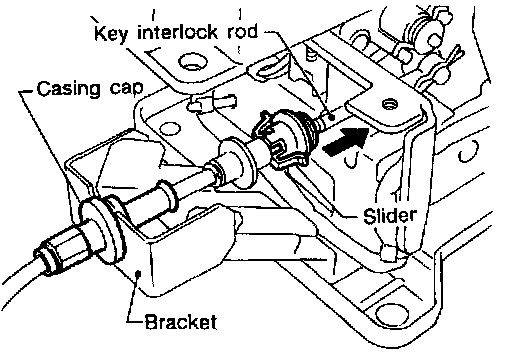

5. Install casing cap to bracket.
6. Move slider in order to fix adjuster holder to interlock rod.
