Component Checks

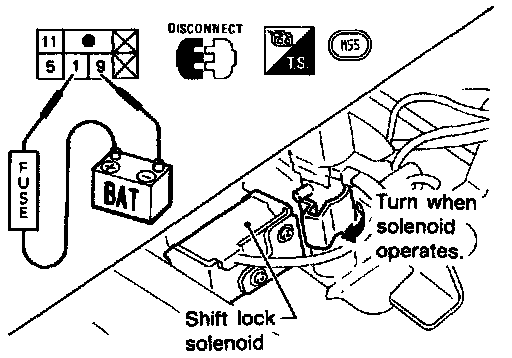

SHIFT LOCK SOLENOID




^ Check operation by applying battery voltage to shift lock harness connector.

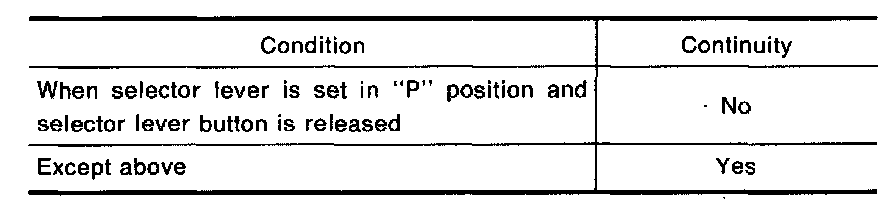

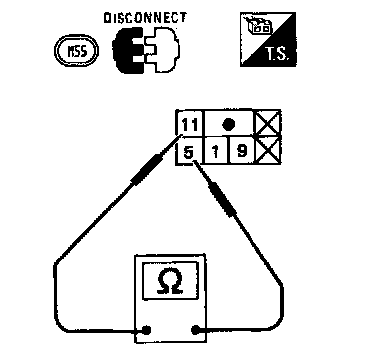

DETENTION SWITCH







^ Check continuity between terminals (5) and (11) of shift lock harness connector.

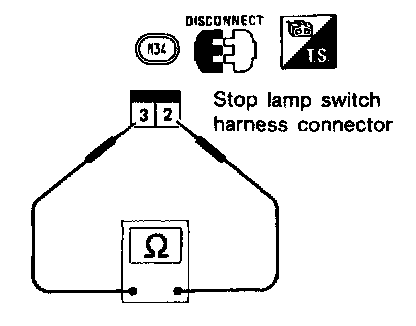

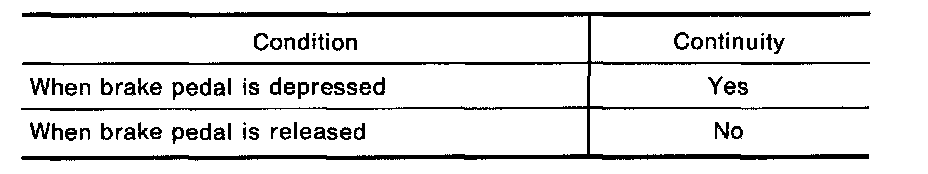

STOP LAMP SWITCH







^ Check continuity between terminals (2) and (3) of stop lamp switch harness connector.

Check stop lamp switch after adjusting brake pedal.
