Home >> Nissan-Datsun >> 1994 >> 300ZX Convertible V6-2960cc DOHC (VG30DE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Flow of Diagnosis >> Diagnostic Worksheets

Diagnostic Worksheets

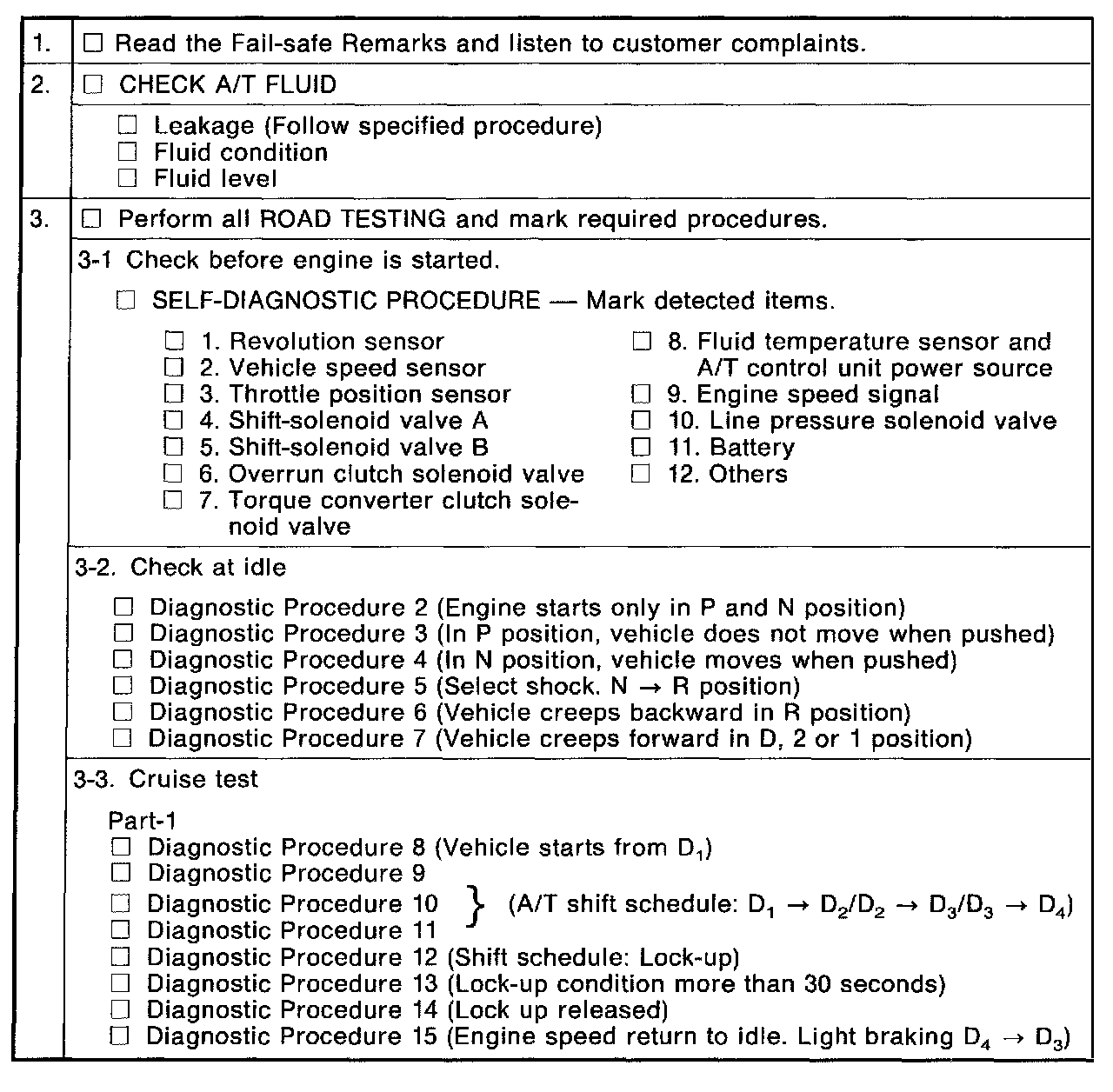

Diagnostic Worksheet (1 Of 2):

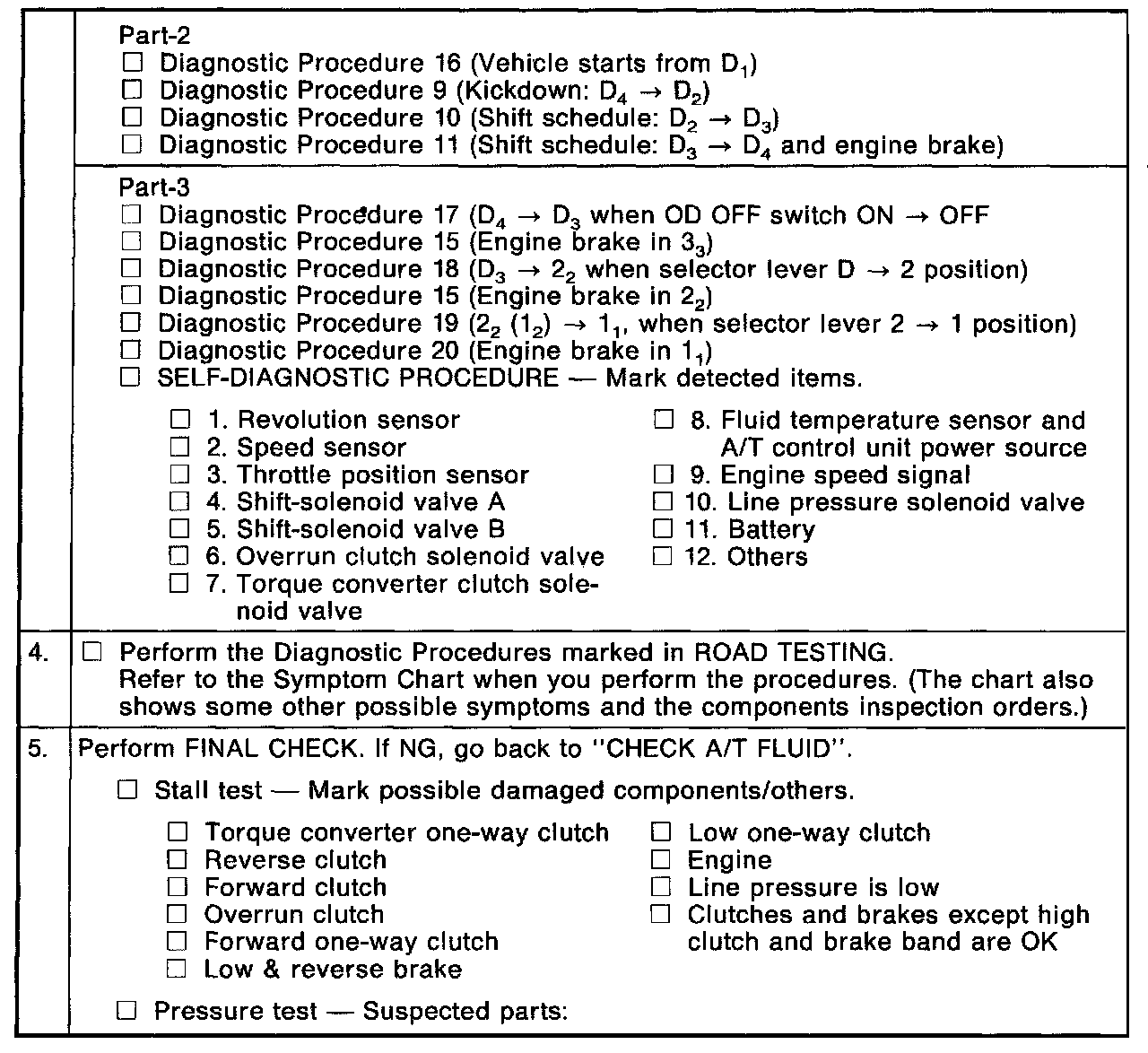

Diagnostic Worksheet (2 Of 2):
