Rear Oil Seal Replacement

Rear Oil Seal Replacement




1. Remove propeller shaft from vehicle.

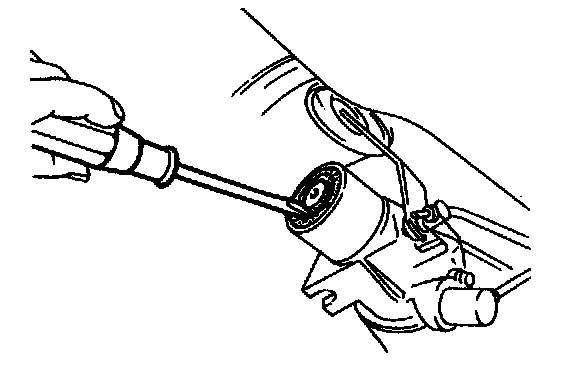

2. Remove rear oil seal.

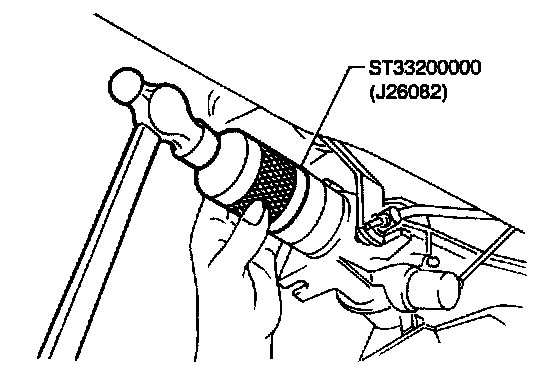

3. Install rear oil seal.
^ Apply ATF before installing.
4. Reinstall any part removed.
