Rear

Coil Spring and Shock Absorber

Removal:

- Remove shock absorber upper and lower fixing nuts.

- Do not remove piston rod lock nut on vehicle.

- Reverse procedure to install.

Adjustable Shock Absorber

Removal:

- Remove room trim.

- Disconnect sub-harness connector.

- Remove shock absorber actuator fixing bolts.

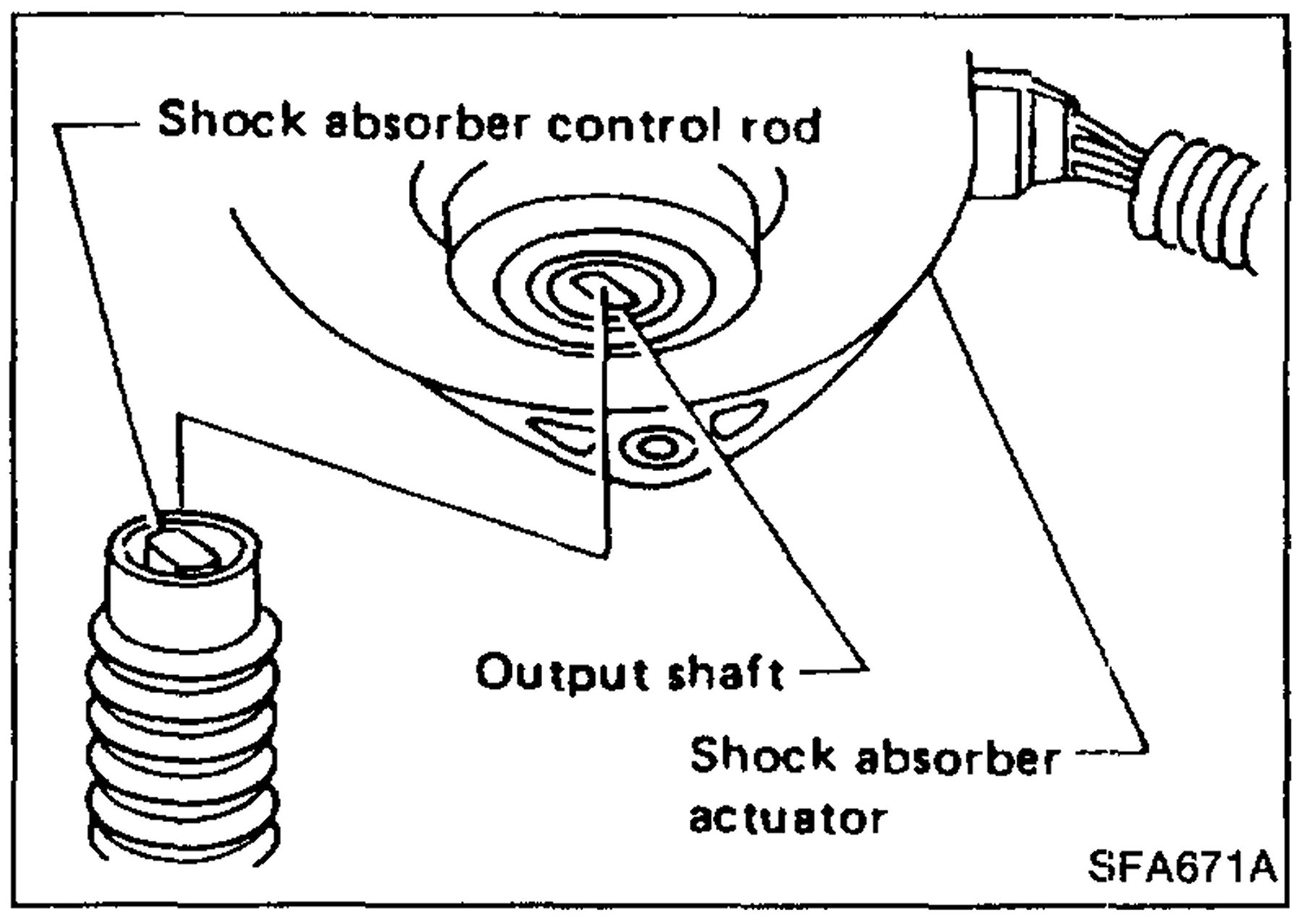

- Before installing actuator, ensure angle of shock absorber control rod is aligned with that of actuator output shaft. Otherwise, actuator may be damaged.
