Front

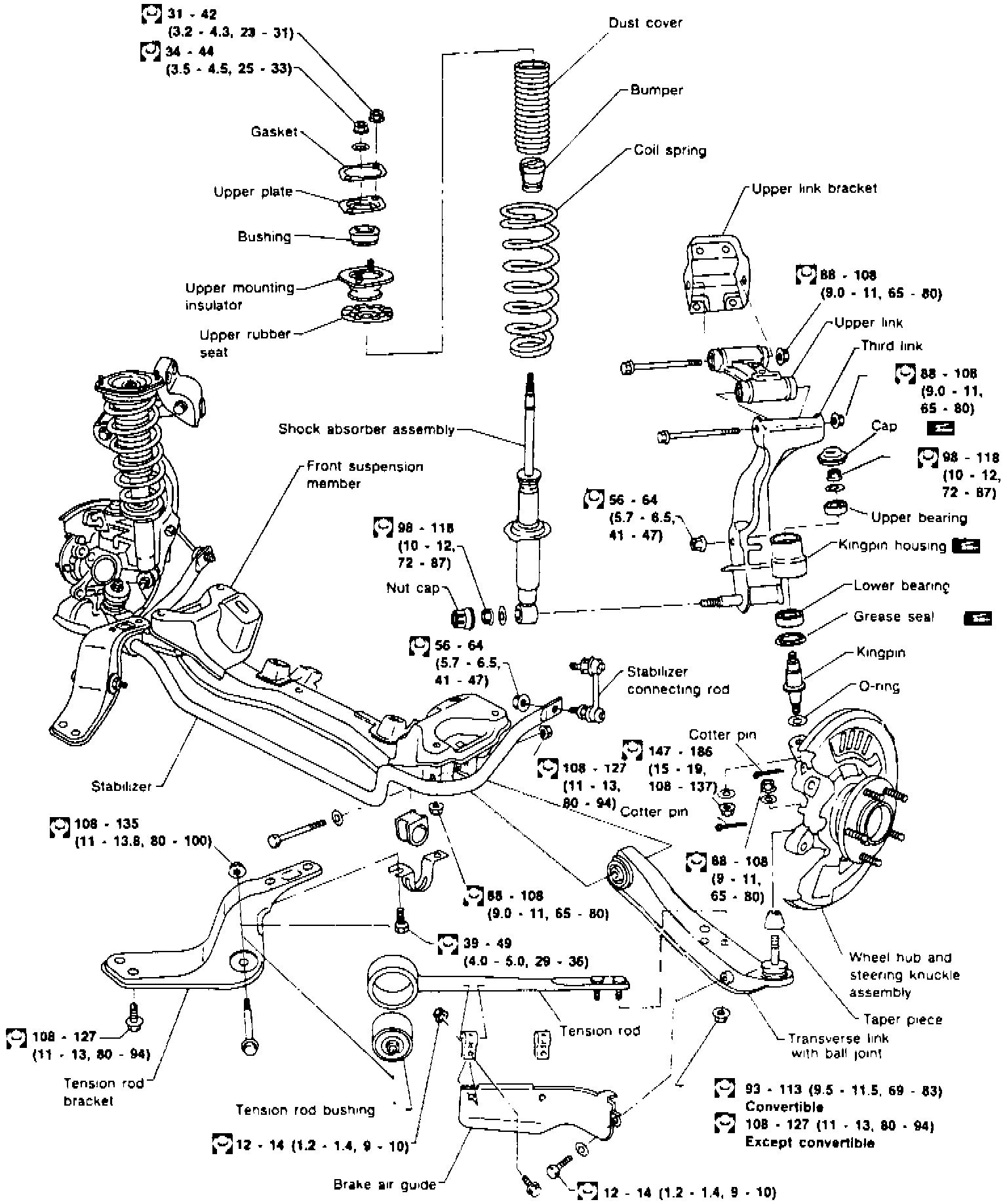

Fig. 5 Front Suspension.:

1. Raise and support front of vehicle and remove wheel.
2. Remove brake caliper assembly. Do not disconnect brake line.
3. Remove brake hose locking spring.
4. Remove brake hose from strut bracket, remove brake assembly if necessary.
5. On models with adjustable shocks, disconnect shock electrical connectors.
6. Remove strut to steering knuckle attaching bolts, Fig. 5.
7. Disconnect knuckle arm from bottom of strut.
8. Remove strut to strut tower attaching nuts, then the strut.
9. Reverse procedure to install.
