Suspension Control ( Automatic - Electronic ): Testing and Inspection

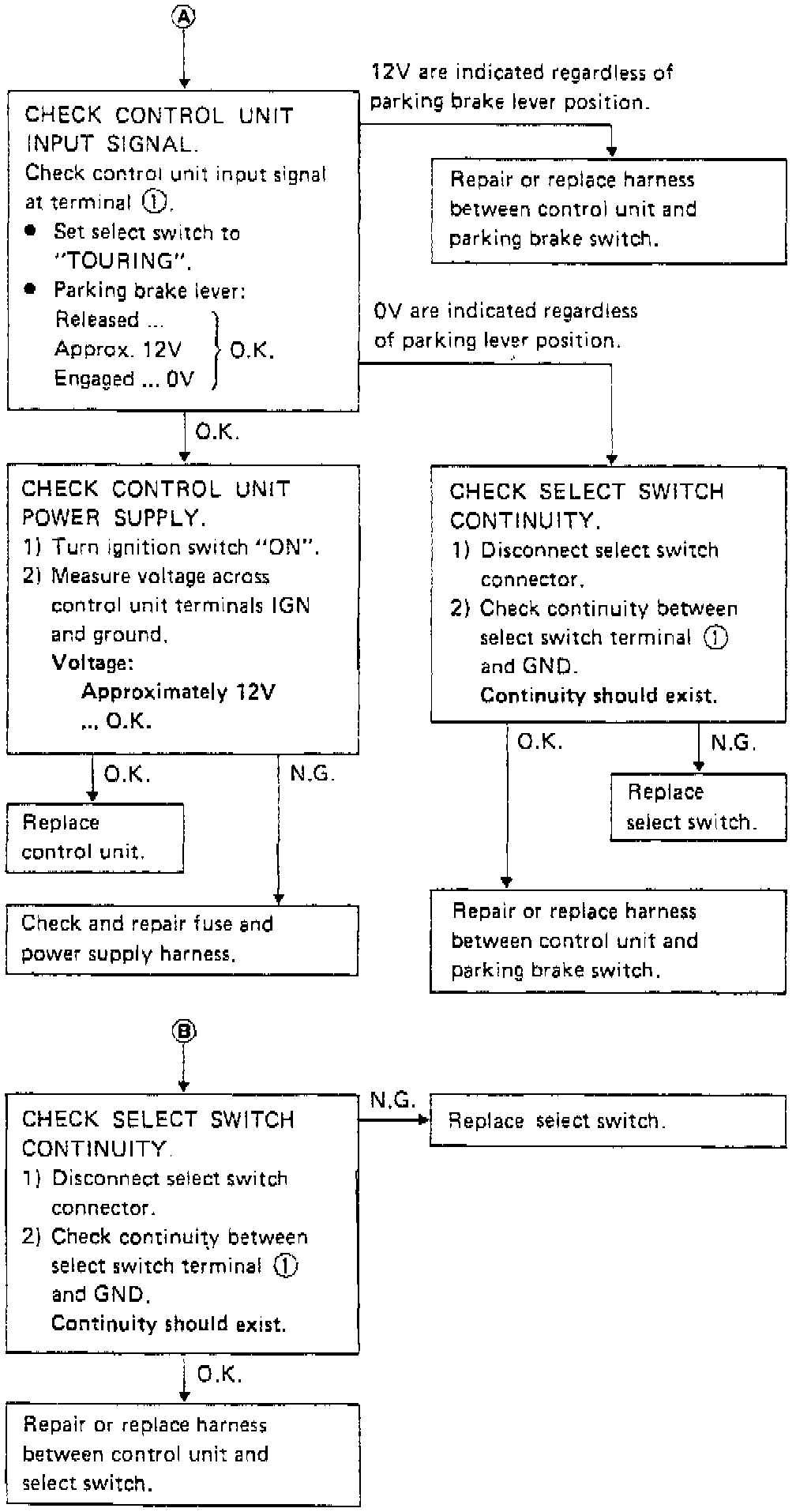

Fig. 5 Adjustable Shock Absorber System Suspension Troubleshooting Charts (Part 1 Of 3):

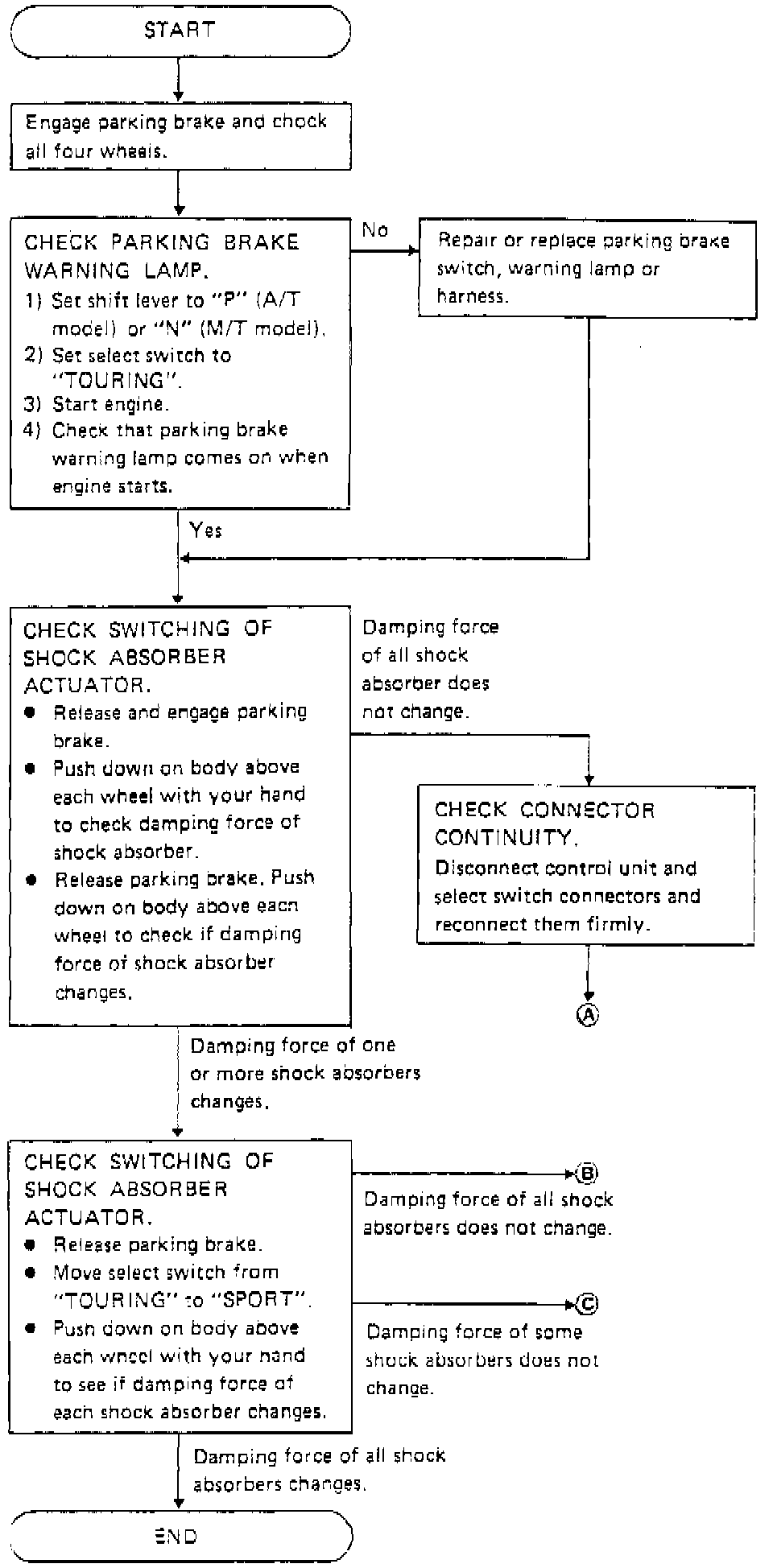

Fig. 5 Adjustable Shock Absorber System Suspension Troubleshooting Charts (Part 2 Of 3):

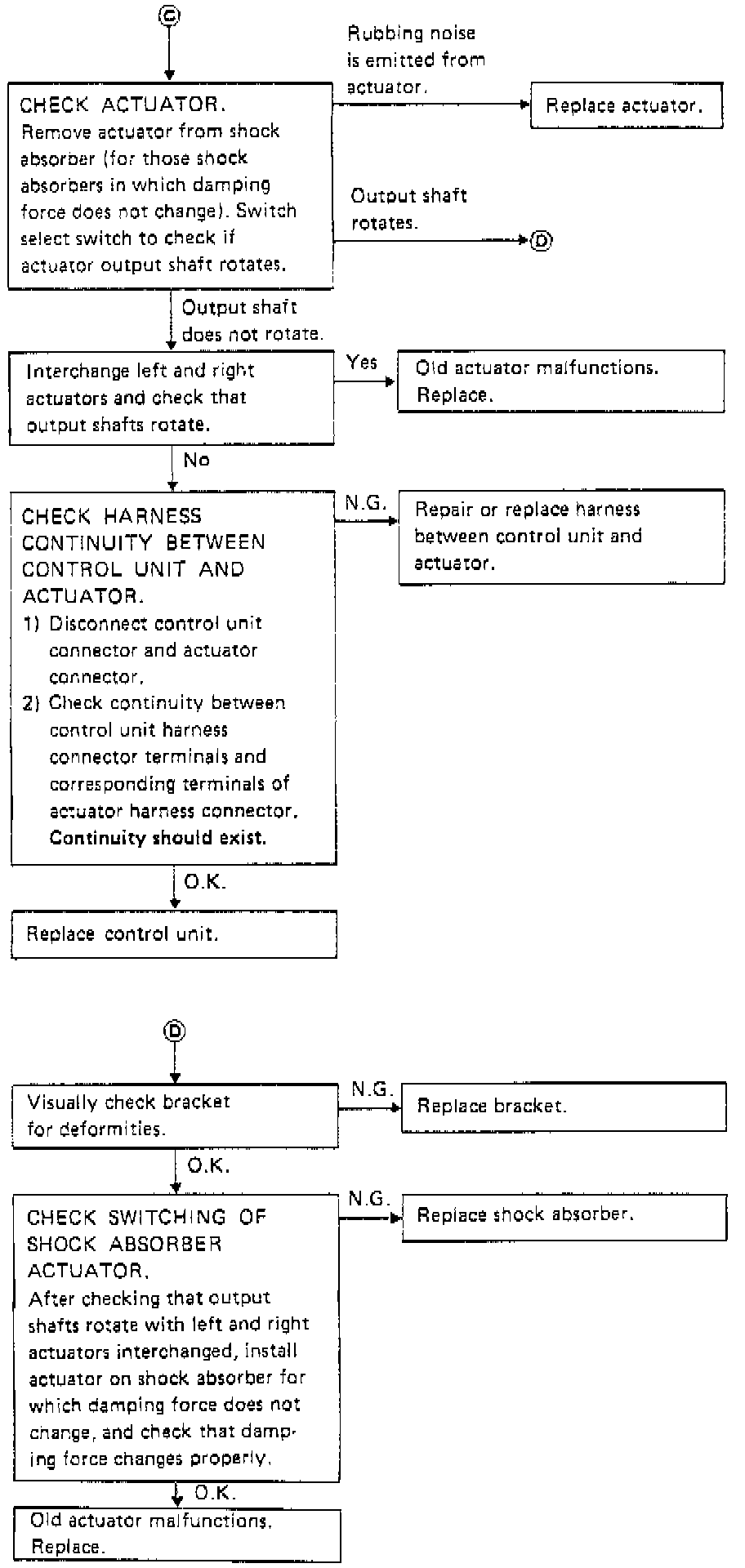

Fig. 5 Adjustable Shock Absorber System Suspension Troubleshooting Charts (Part 3 Of 3):

The shock absorber control unit has a self check function to determine whether the control unit is working properly. A malfunction is displayed by an L.E.D. which is located on select switch. Refer to Fig. 5 for system troubleshooting charts.
