Front

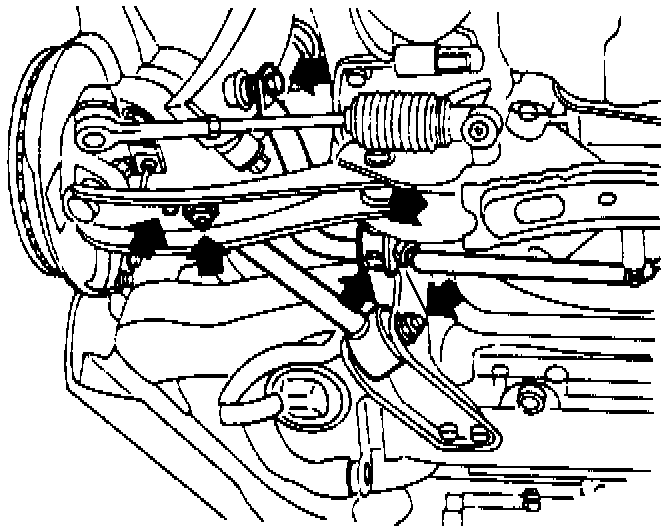

Fig. 8 Stabilizer Bar Removal.:

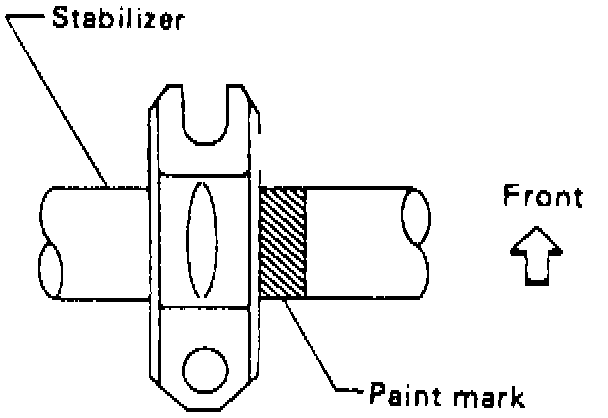

Fig. 9 Stabilizer & Bushing Installation:

1. Raise and support vehicle.
2. Remove stabilizer bar attaching bolts, Fig. 8, then stabilizer bar.
3. Reverse procedure to install, noting following:
a. When installing bar make sure paint mark and clamp face is in their correct position, Fig. 9.
