Removal and Installation

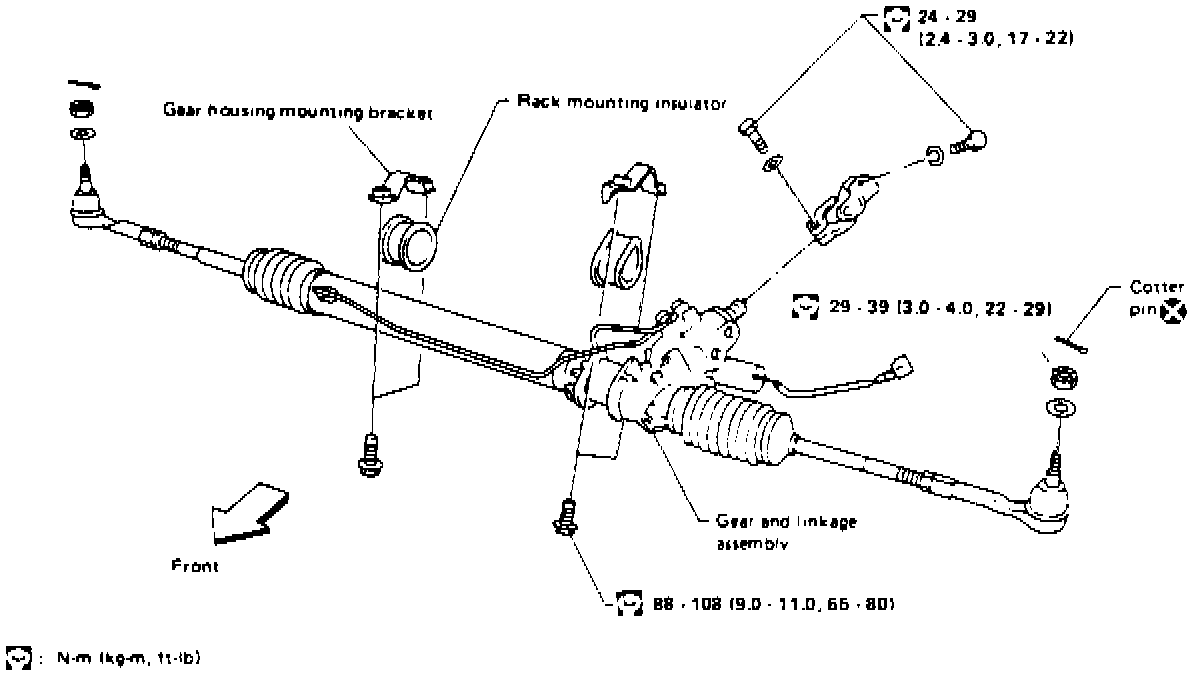

Fig. 12 Power Steering Gear Replacement.:

Refer to Fig. 12 for power steering gear replacement procedure, noting following.
1. When removing power steering hoses plug ports and lines.
2. Set wheels straight ahead before removing lower joint.
3. After removing lower joint put matching mark on pinion shaft and pinion housing.
