Home >> Nissan-Datsun >> 1994 >> 300ZX Convertible V6-2960cc DOHC (VG30DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Specifications and Adjustment >> Clutches and Brakes

Clutches and Brakes

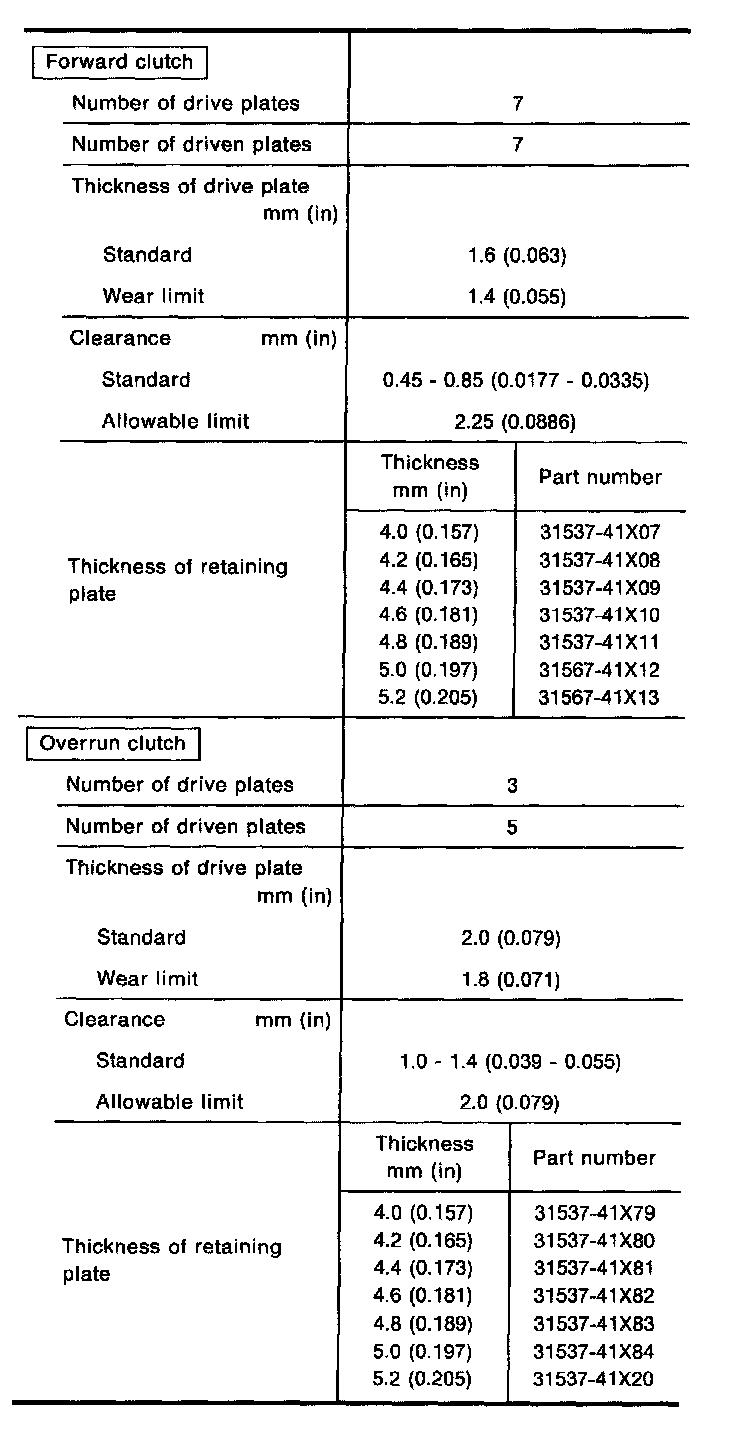

1 Of 3:

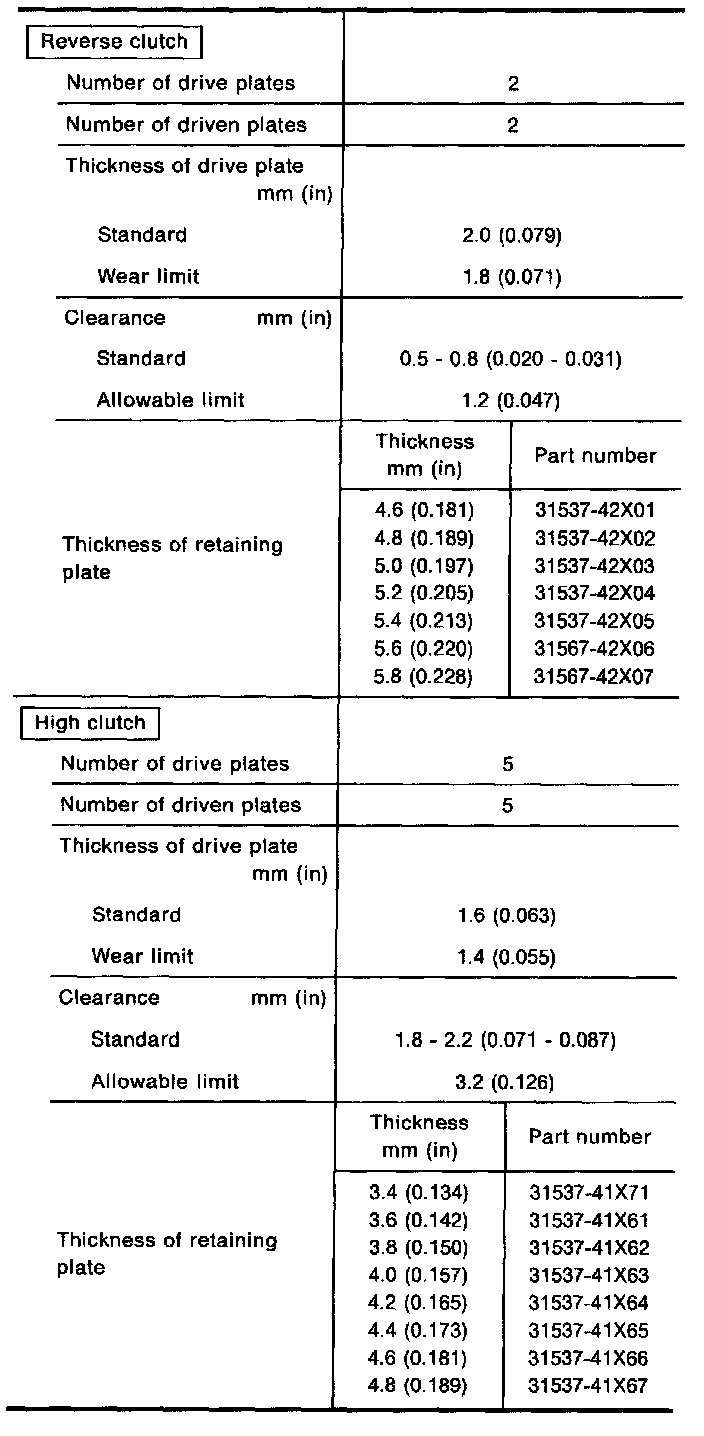

2 Of 3:

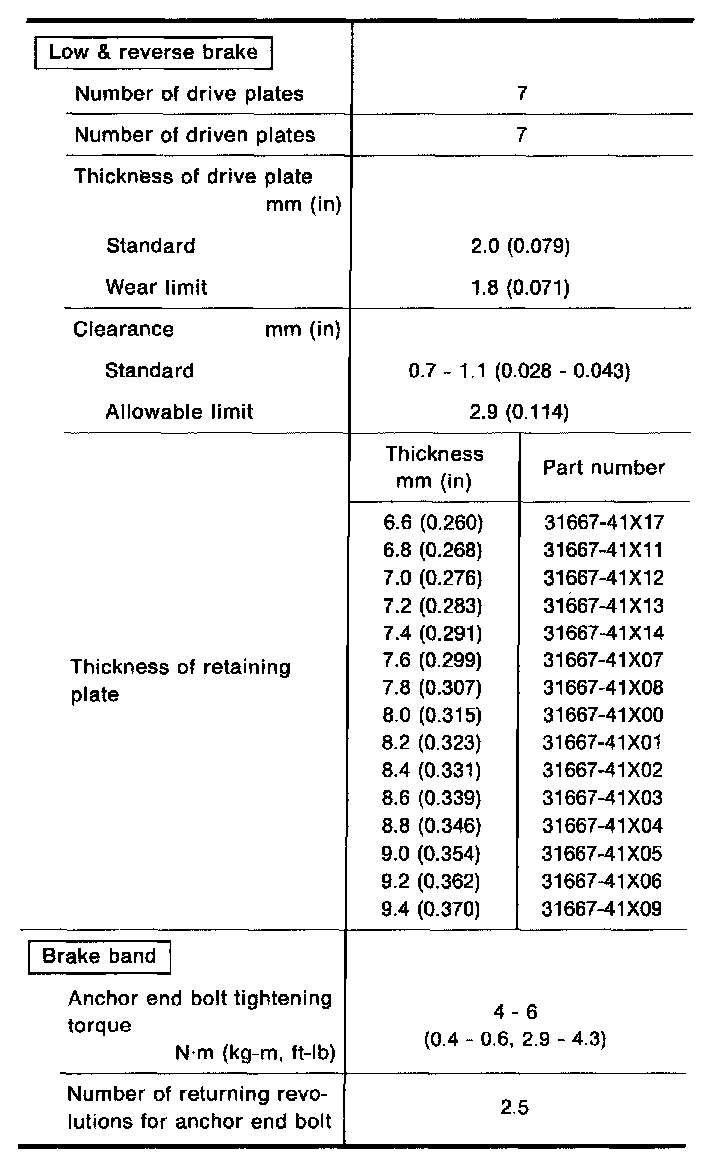

3 Of 3:
