Engine Control Module

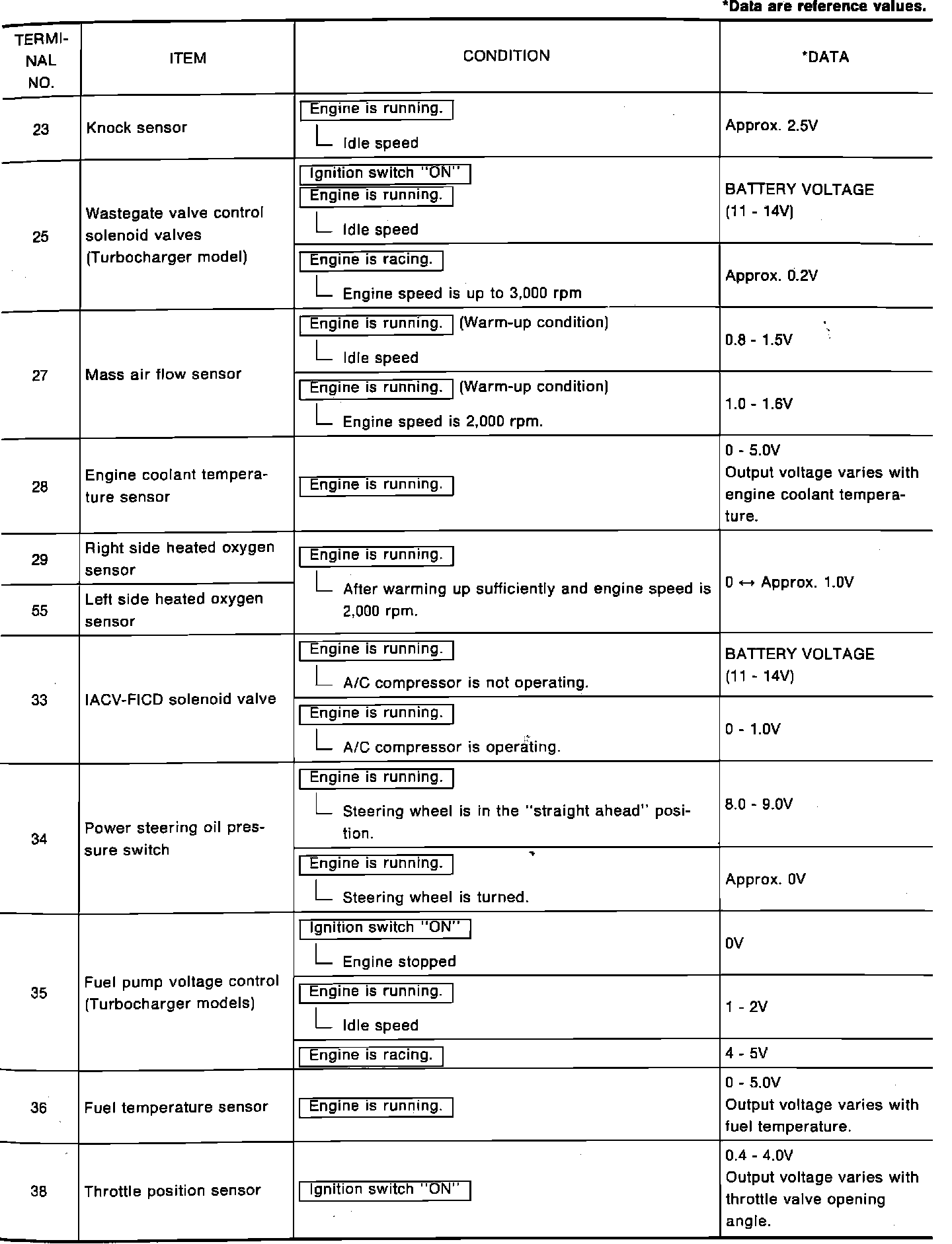

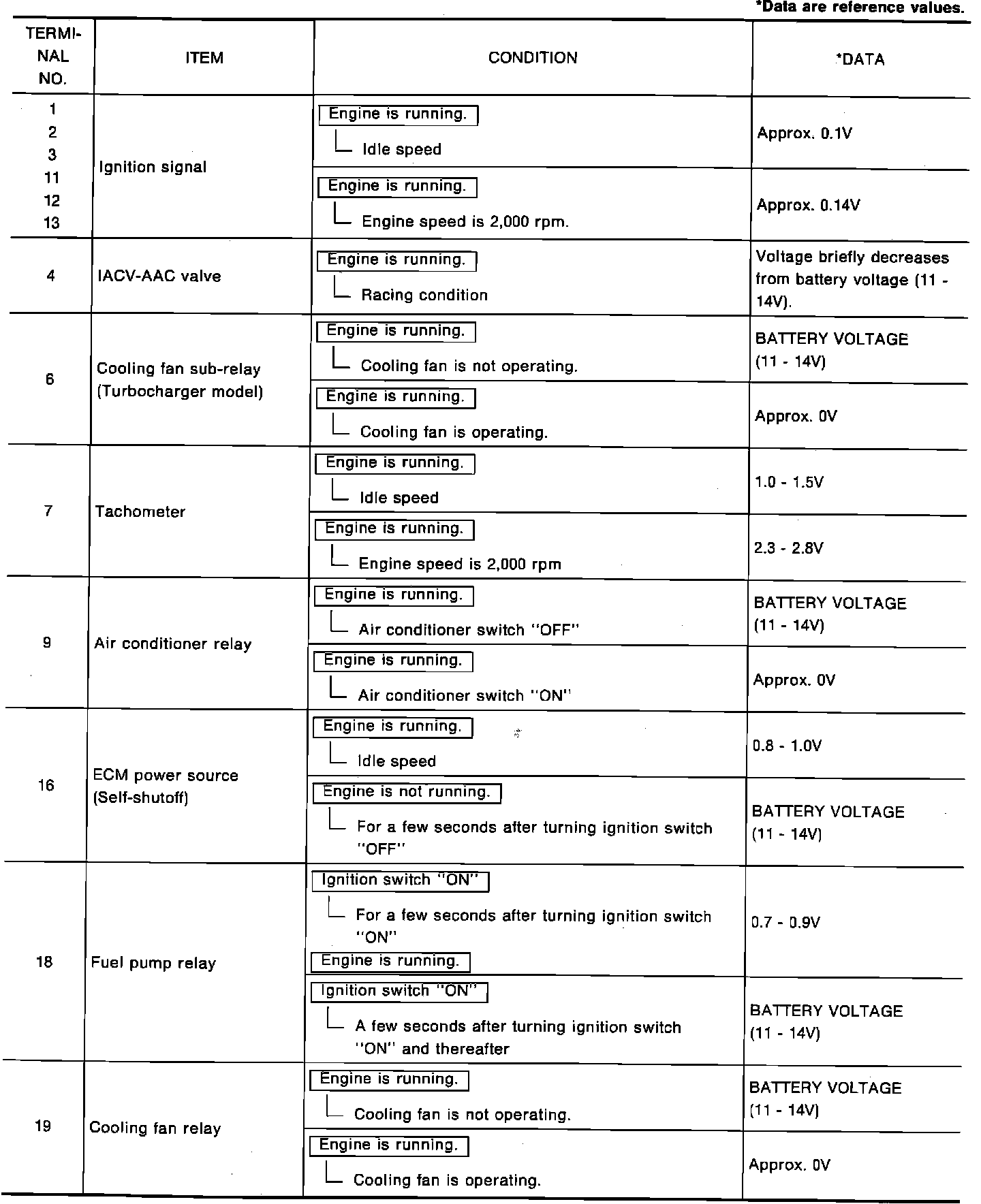

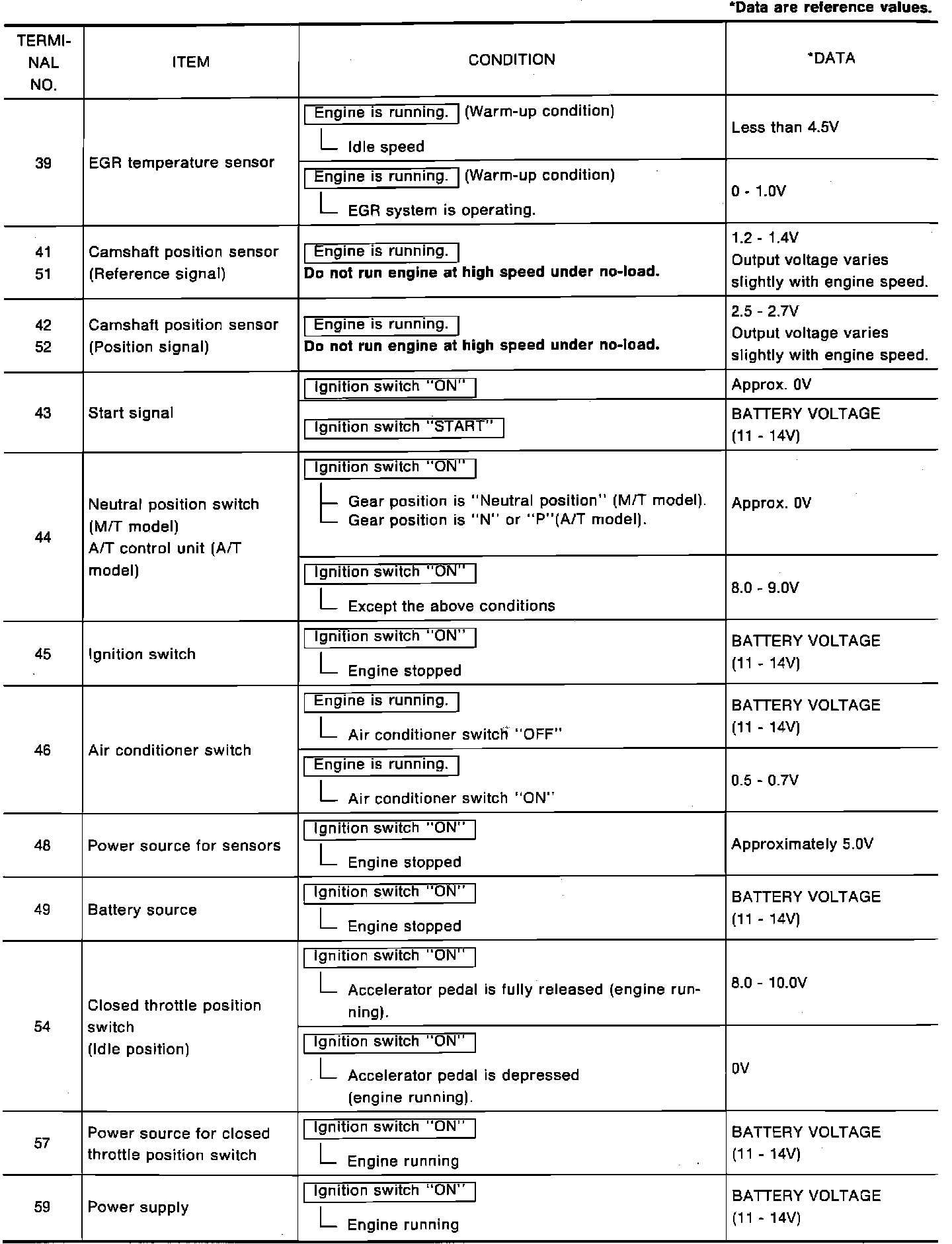

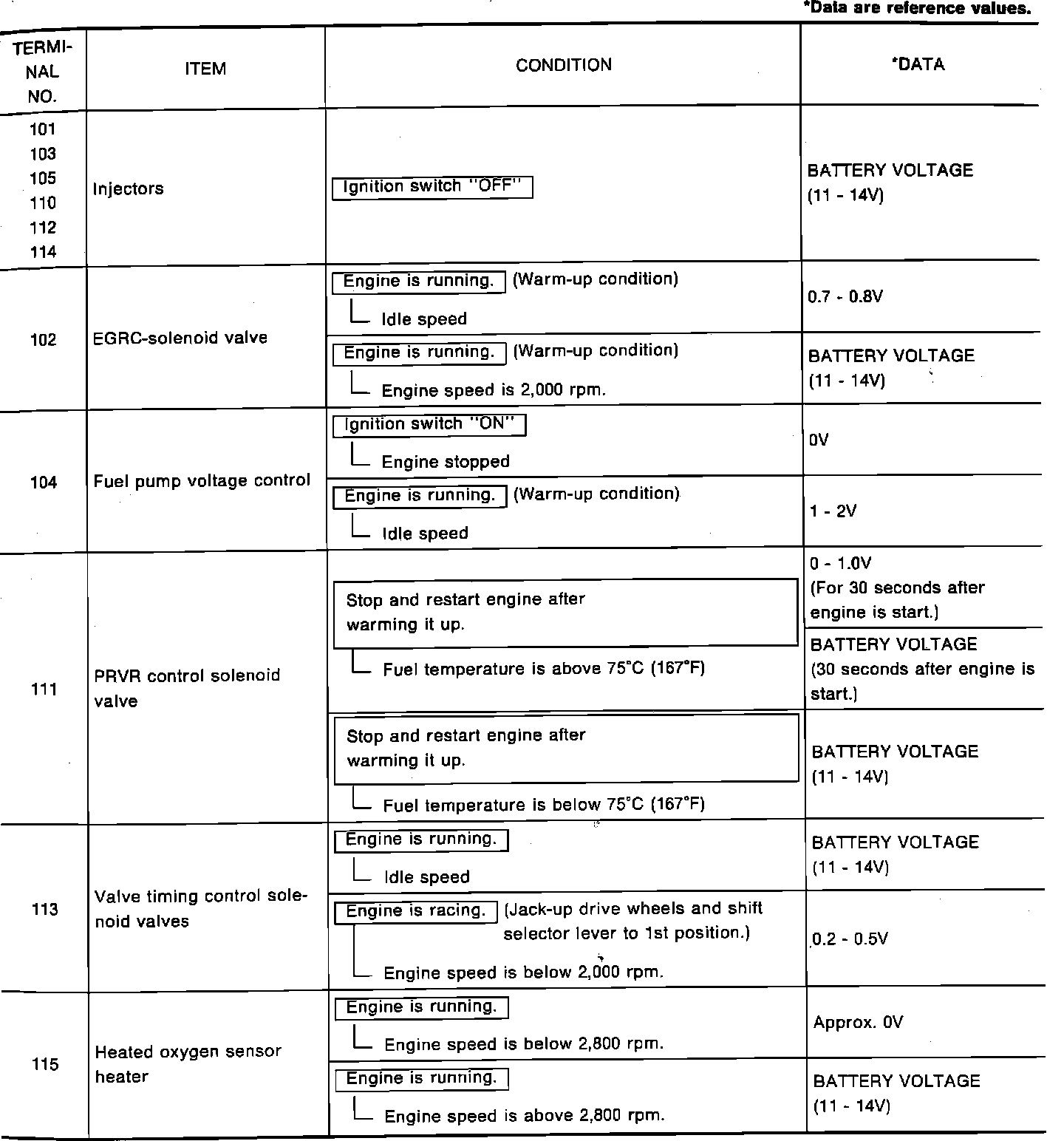

ECM Terminal Voltage Table:




ECM Terminal Voltage Table:




ECM Terminal Voltage Table:




ECM Terminal Voltage Table:




EXPECTED PIN VOLTAGES
