Fuel Pump Control Unit: Description and Operation



PURPOSE
The Fuel Pump Control Module adjusts the voltage supplied to the fuel pump to control fuel quantity.

Fuel Pump Voltage Control:




OPERATION

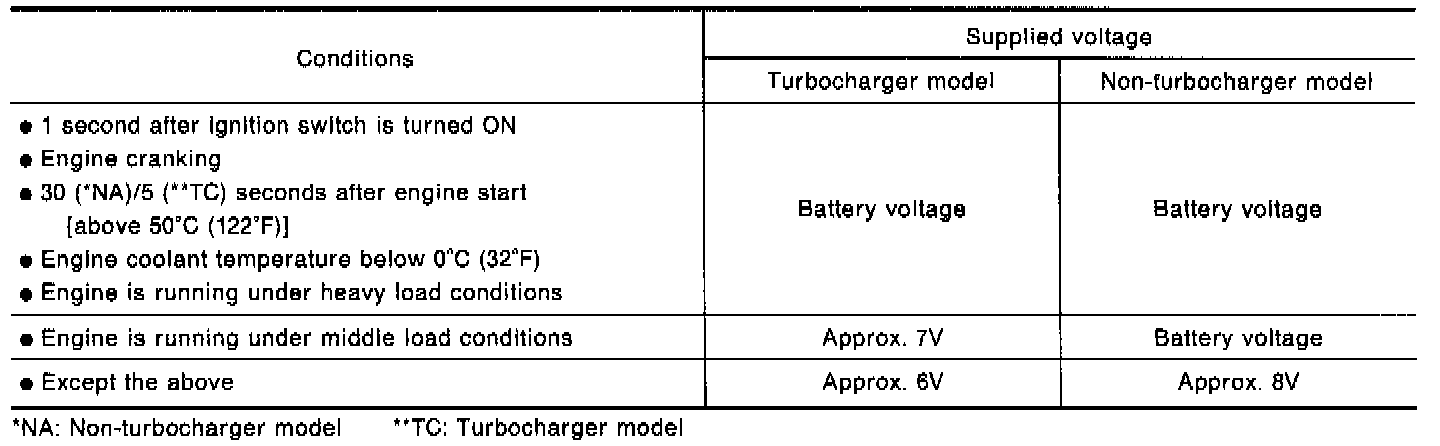

The Fuel Pump Control Module will supply full battery voltage to the Fuel Pump as shown in image.
