Shift Interlock Control Module: Testing and Inspection

Shift Lock Control Unit Inspection

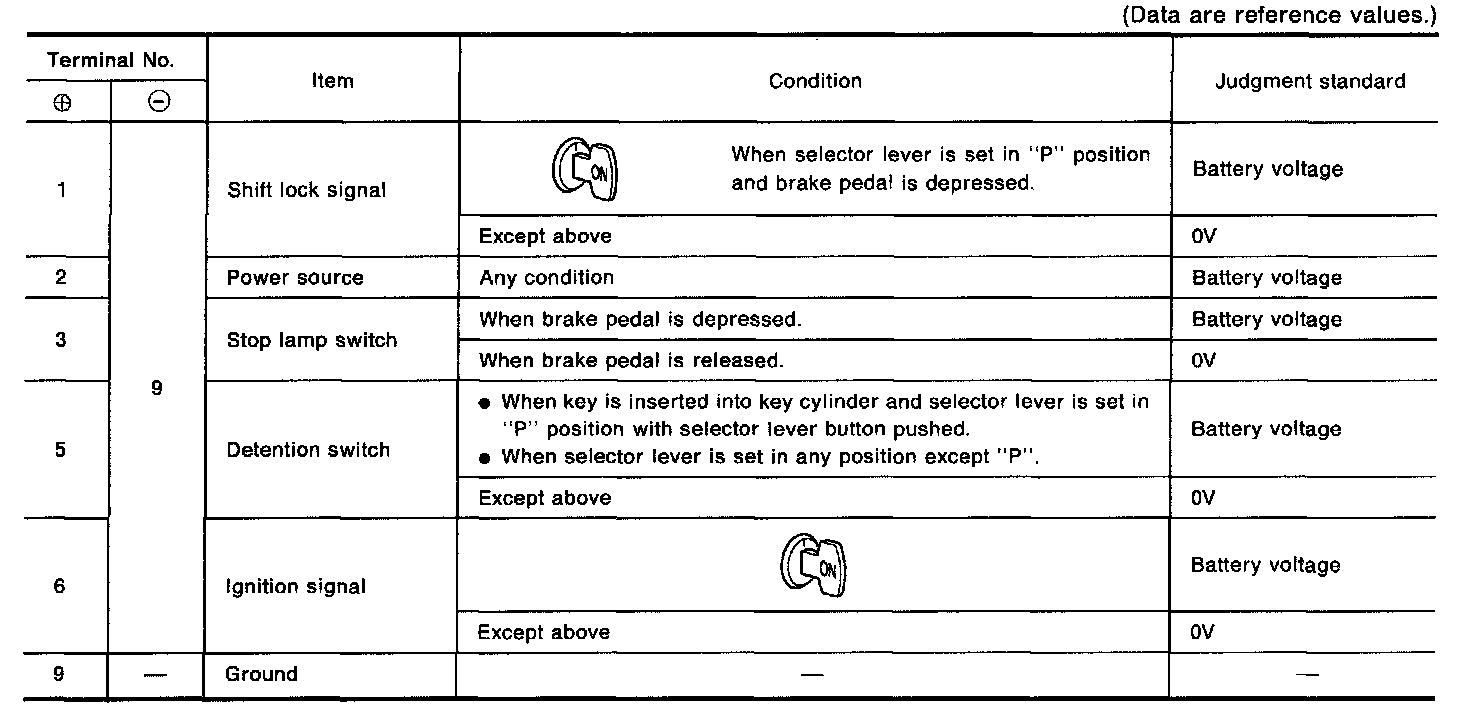

Shift Lock Control Unit Inspection Table:





^ Measure voltage between each terminal and terminal (9) by following "Shift Lock Control Unit Inspection Table".

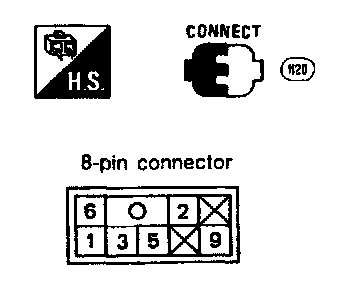

^ Pin connector terminal layout.
