DTC 11 - Camshaft Position Sensor

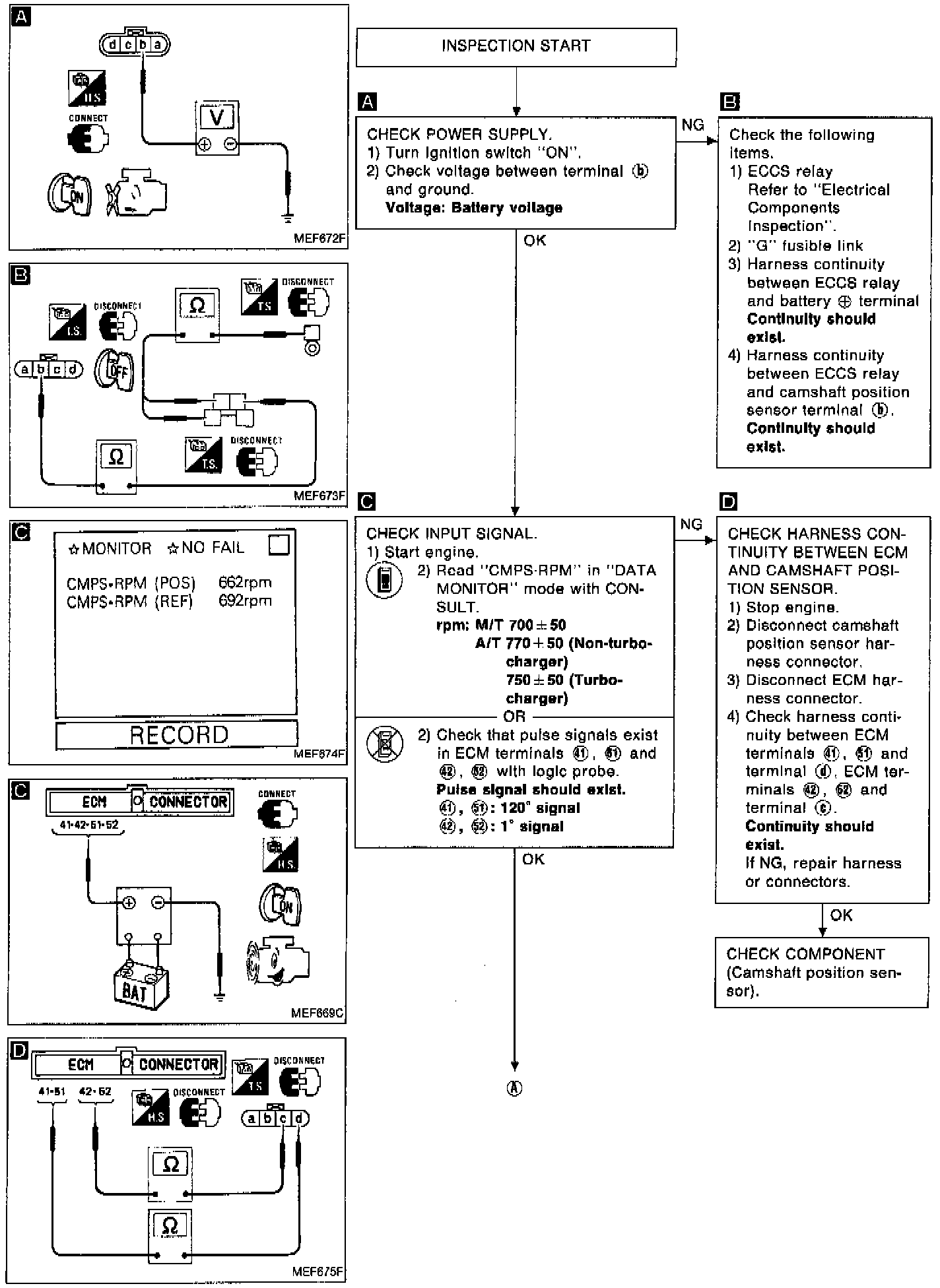

DTC 11 Camshaft Position Sensor Diagnostic Chart:




DTC 11 Camshaft Position Sensor Diagnostic Chart:

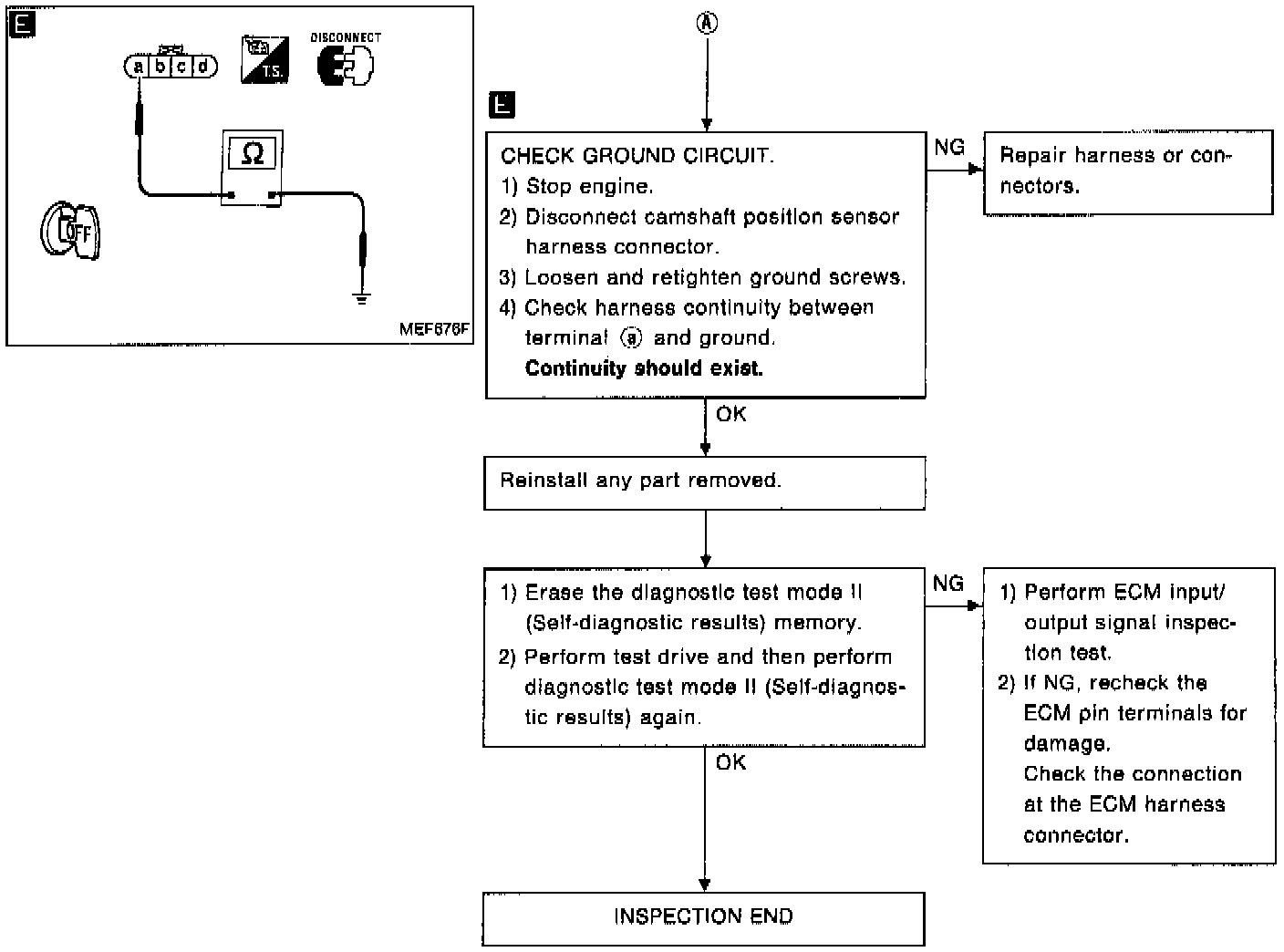

DIAGNOSTIC CHART

Camshaft Position Sensor Circuit:





CIRCUIT DIAGRAM

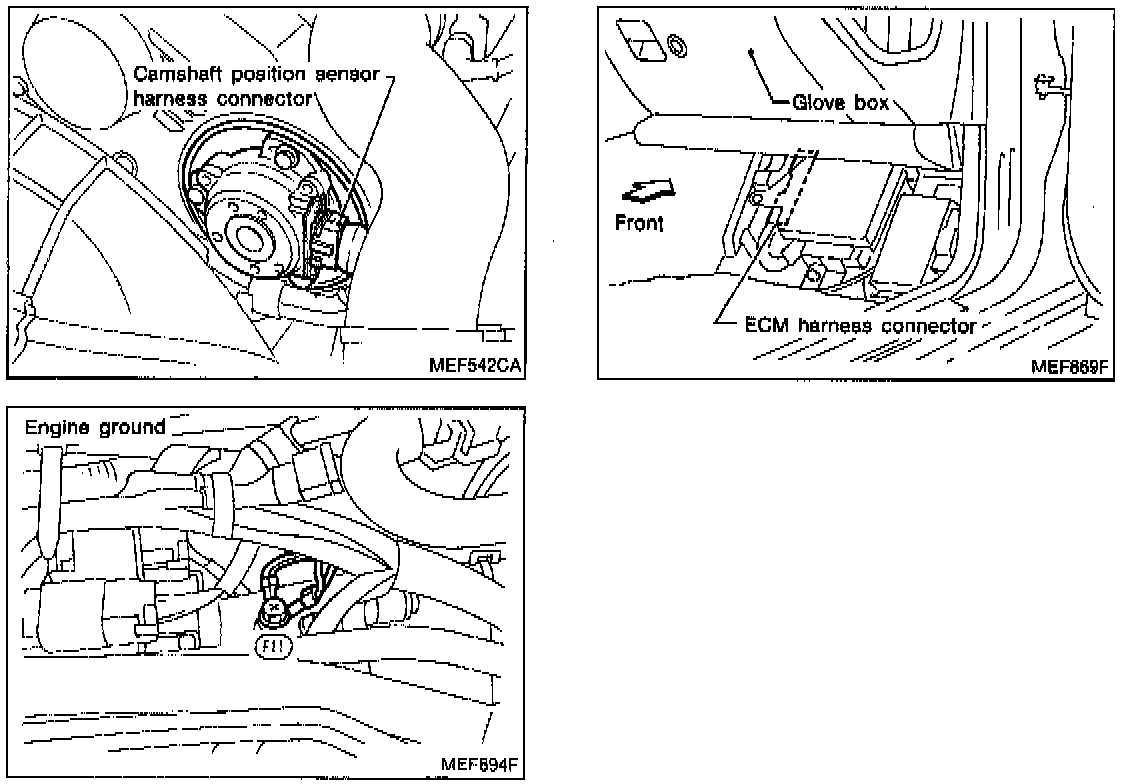

Harness Layout:





HARNESS LAYOUT
