DTC 45 - Injector Leak

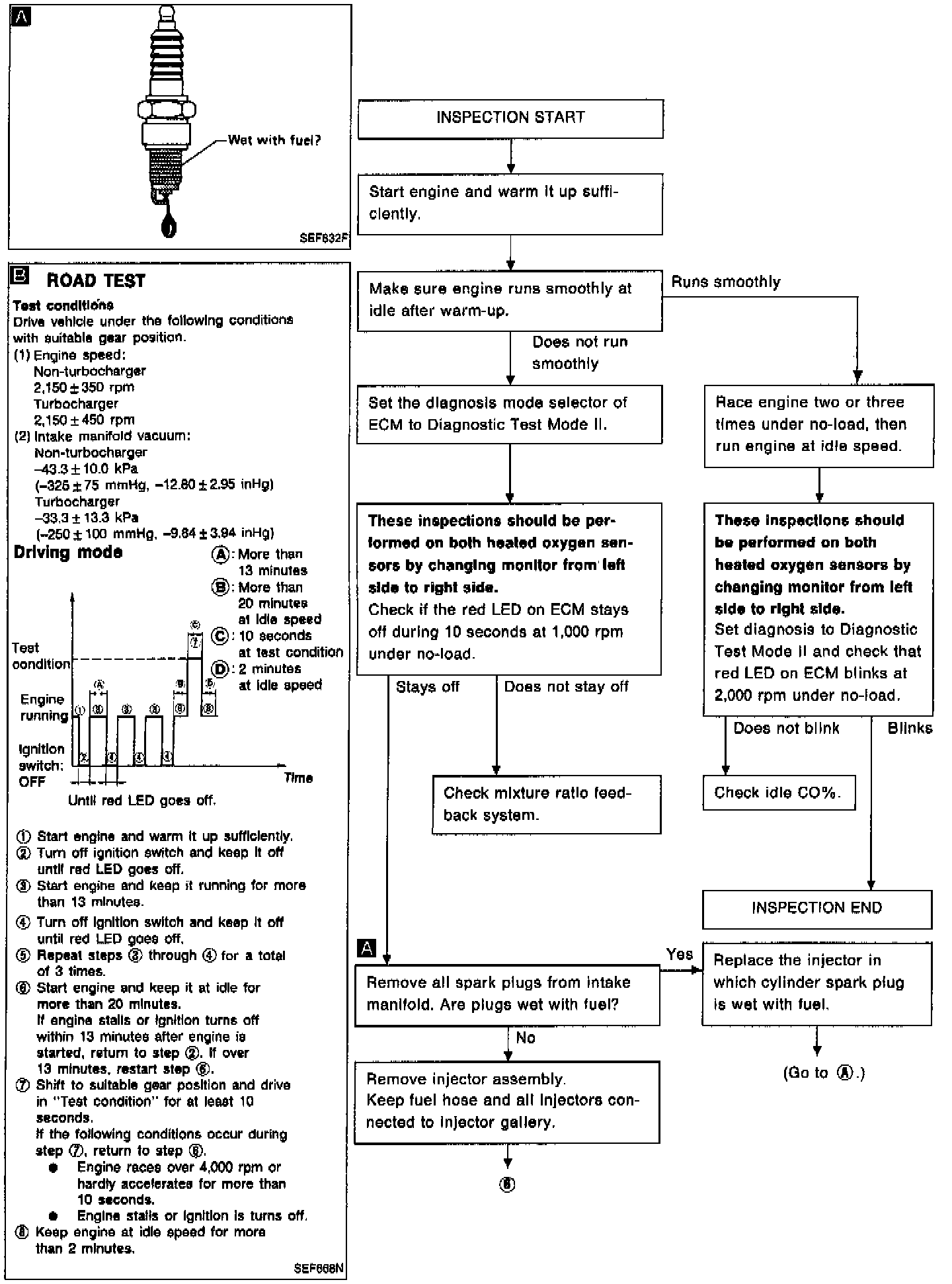

DTC 45 Injector Leak Diagnostic Chart:



DTC 45 Injector Leak Diagnostic Chart:
