EGR Valve: Testing and Inspection

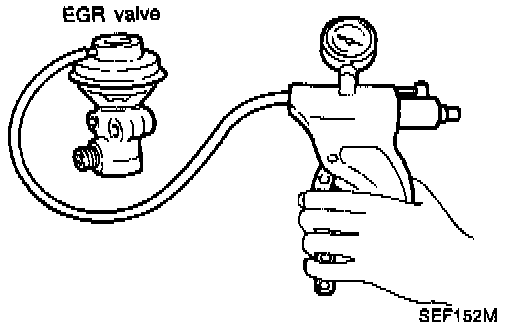

EGR Test:
Apply vacuum to
Exhaust Gas Recirculation
(EGR)
vacuum port with a hand vacuum pump.
^
EGR valve
spring should lift.
^
If NG, replace
EGR valve
.
