Evaporative Emission Control Canister: Testing and Inspection

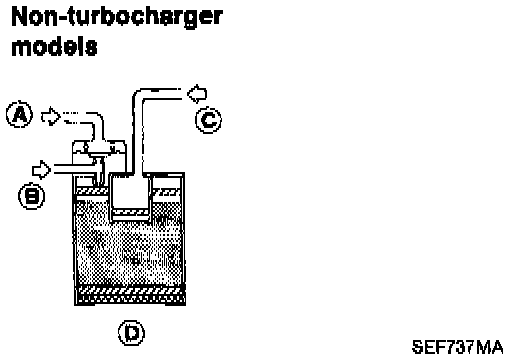

Carbon Canister Test:

Check Carbon Canister as follows:

^ Blow air in port A and ensure that there is no leakage.

^ Apply vacuum to port A.

^ Cover port D with hand.

^ Blow air in port C and ensure free flow out of port B.
