Home >> Nissan-Datsun >> 1994 >> 300ZX Convertible V6-2960cc DOHC (VG30DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Function Test Mode

Function Test Mode

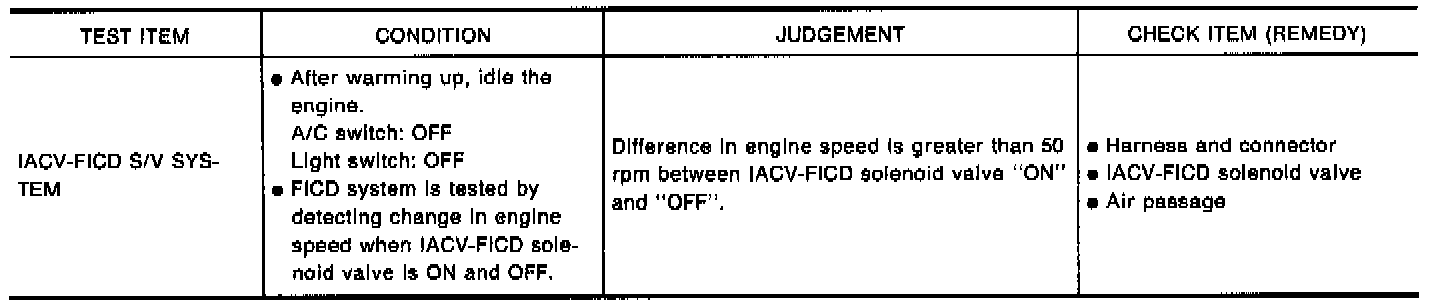

Function Test Mode Chart-1:

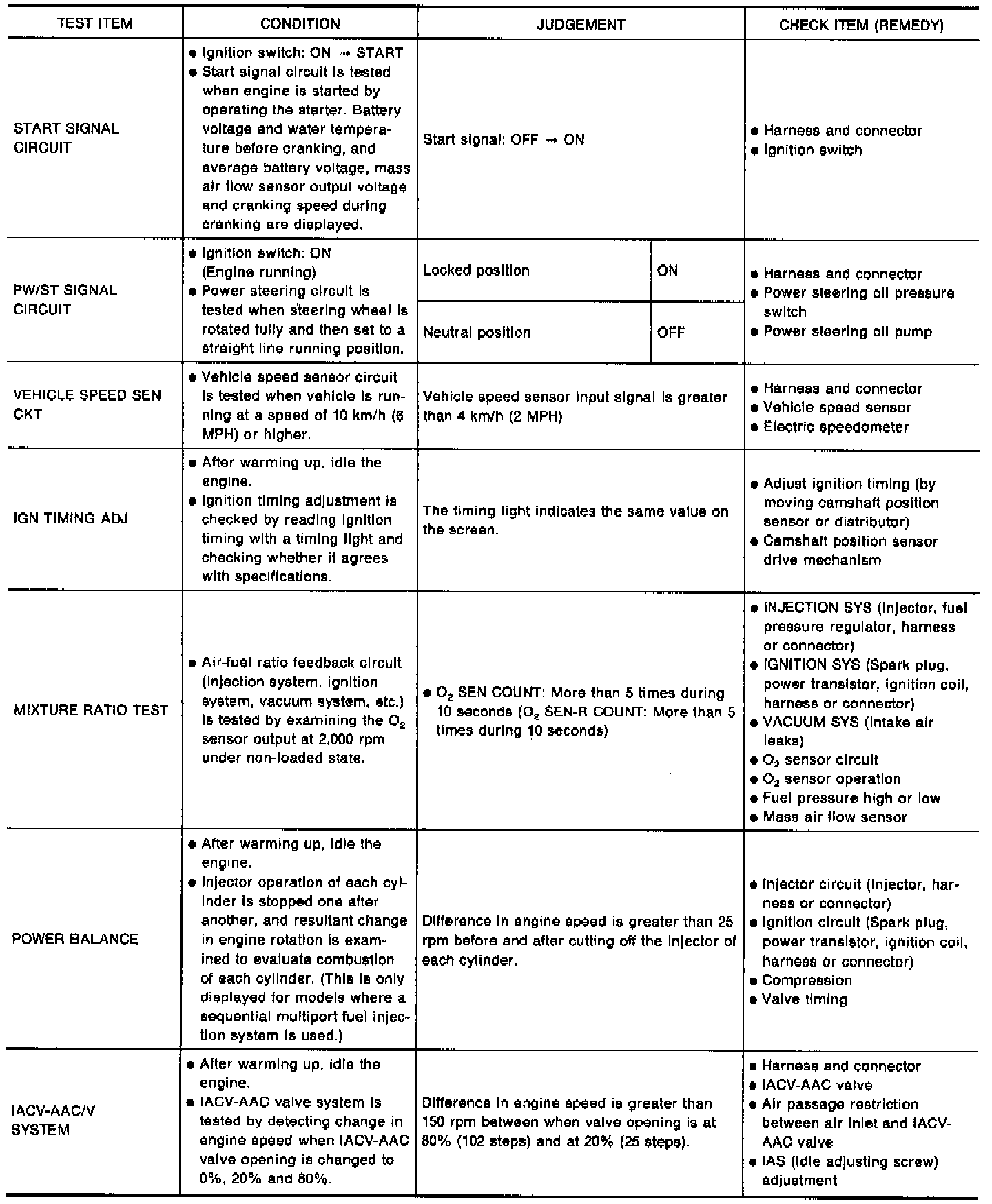

Function Test Mode Chart-2:

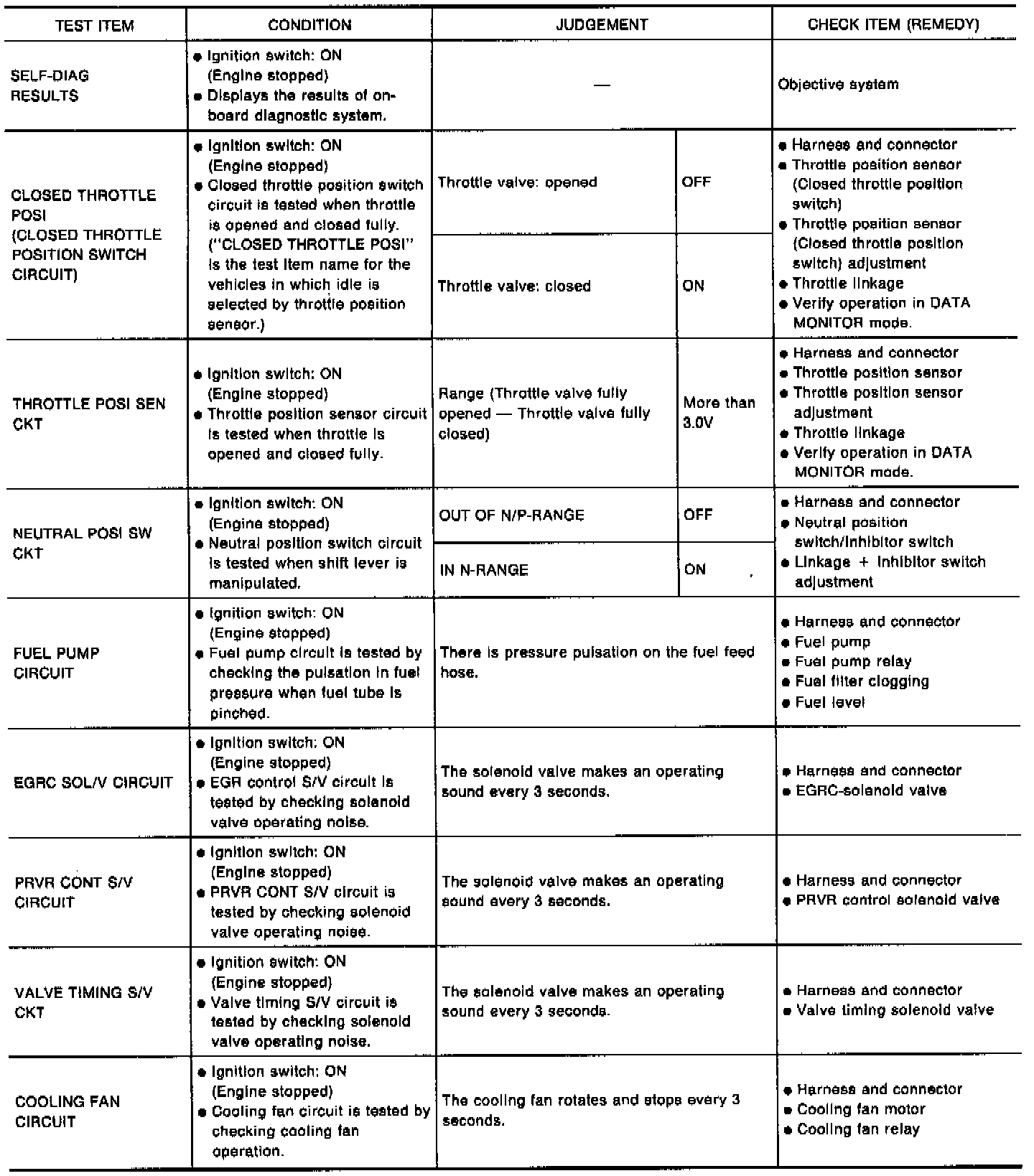

Function Test Mode Chart-3:
