CONSULT Test Mode Charts

CONSULT Test Mode Chart:




CONSULT DIAGNOSTIC TEST MODE

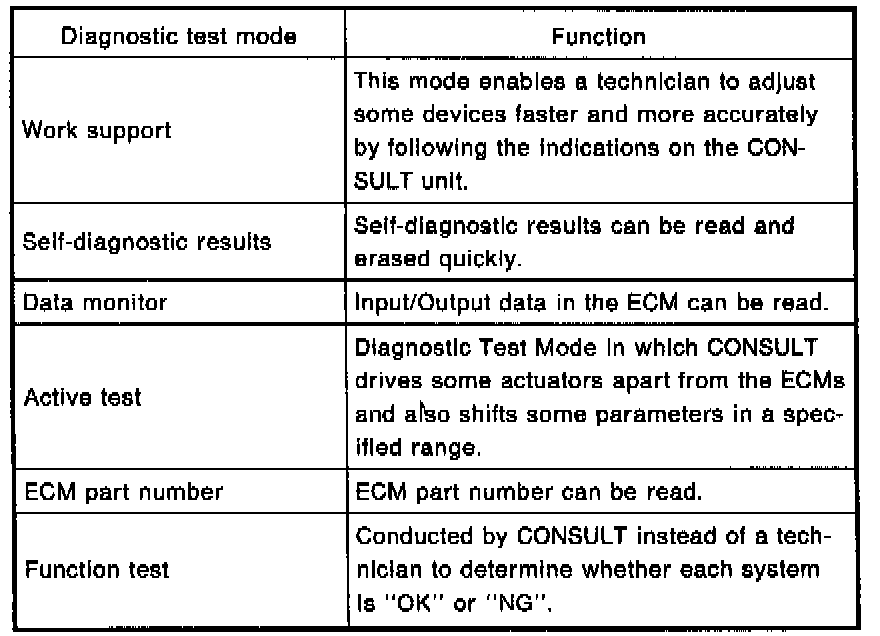

CONSULT Test Mode Function Chart:




CONSULT TEST MODE FUNCTION

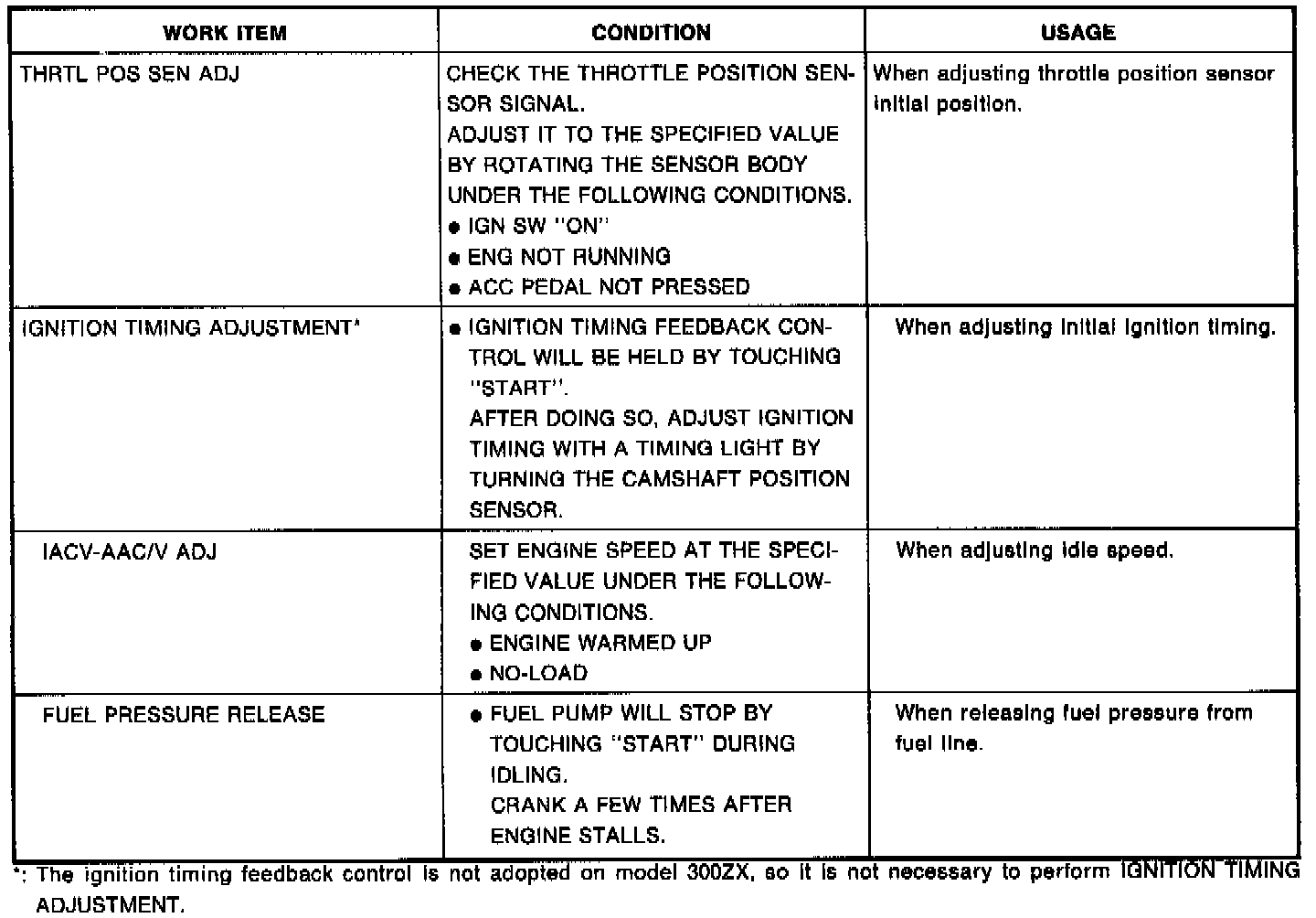

CONSULT Work Support Mode Chart:




CONSULT WORK SUPPORT MODE
