Power Supply Testing
Power Supply Testing

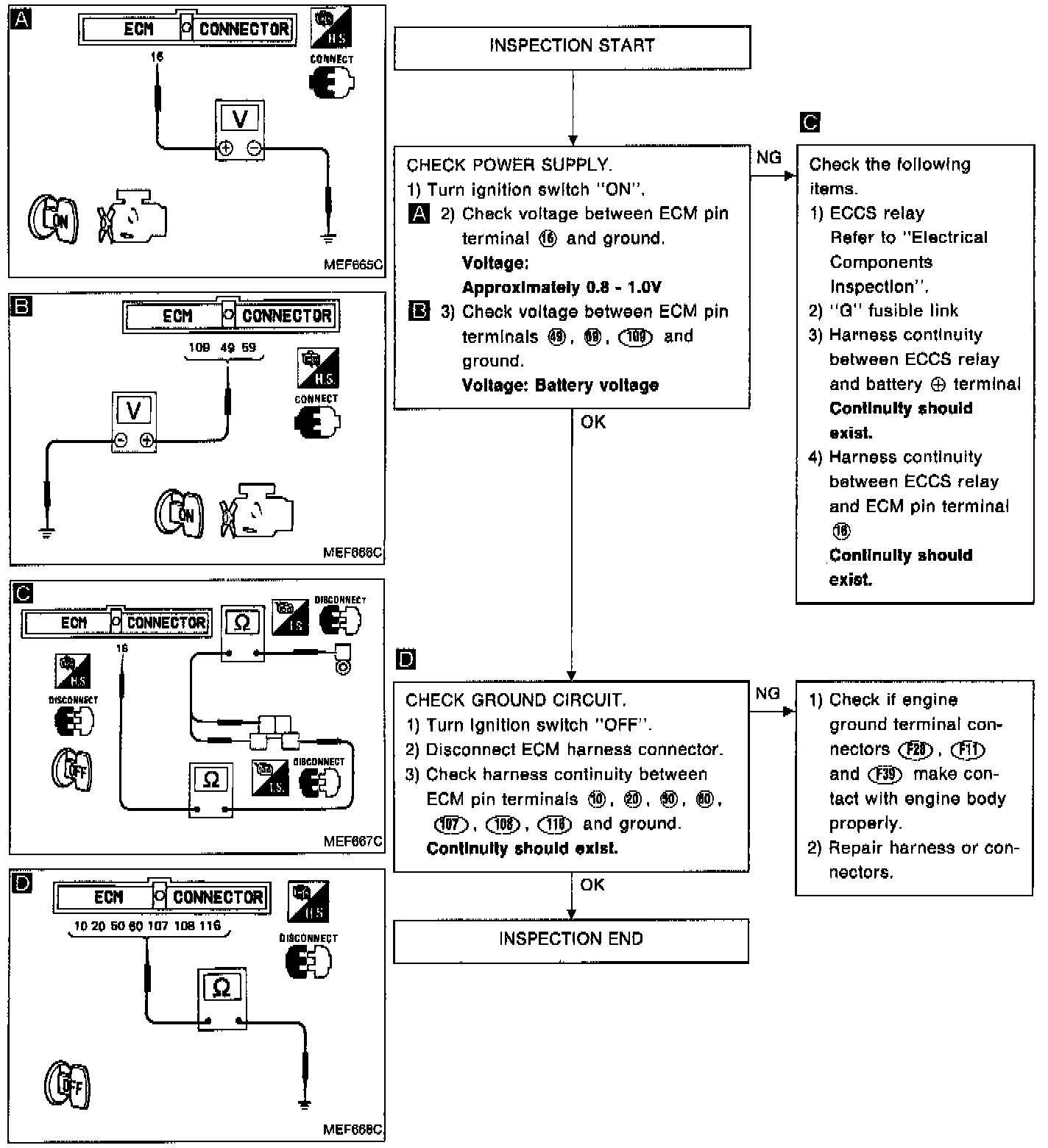

ECU Main Power And Ground Circuit Diagnostic Chart:
DIAGNOSTIC CHART
ECM Main Power And Ground Circuit:
CIRCUIT DIAGRAM

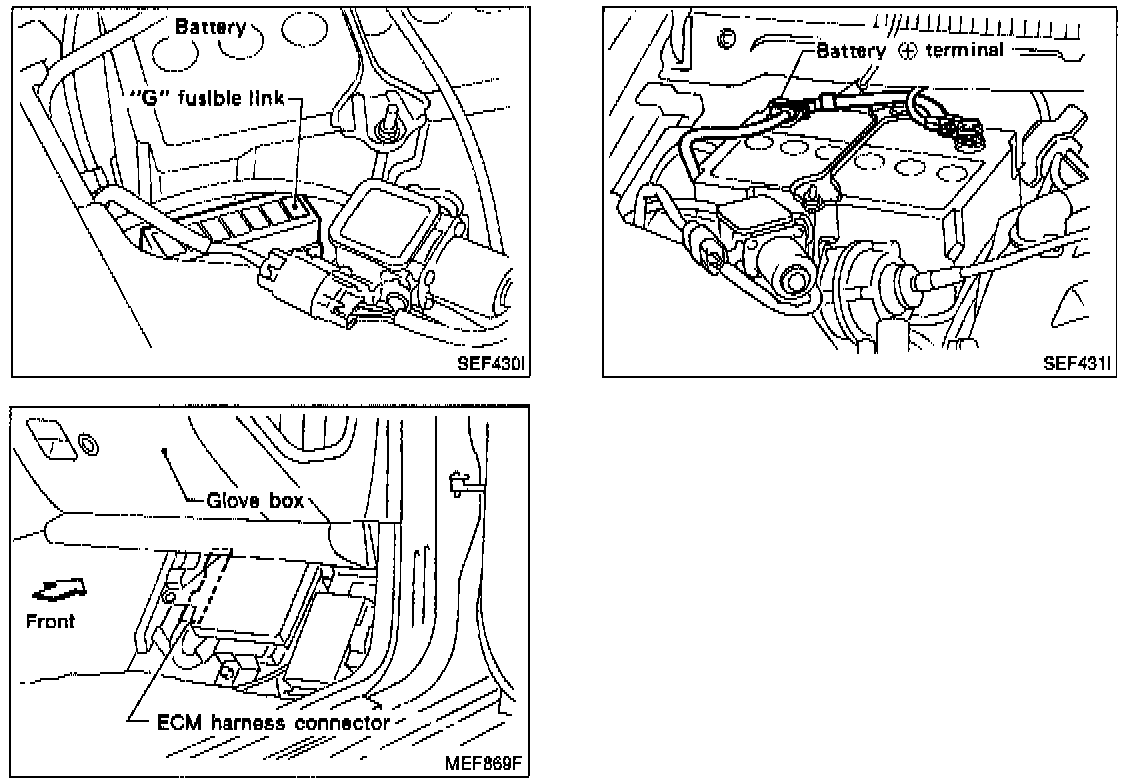

Harness Layout:
HARNESS LAYOUT
