300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Valve Timing Control Circuit
Valve Timing Control Circuit

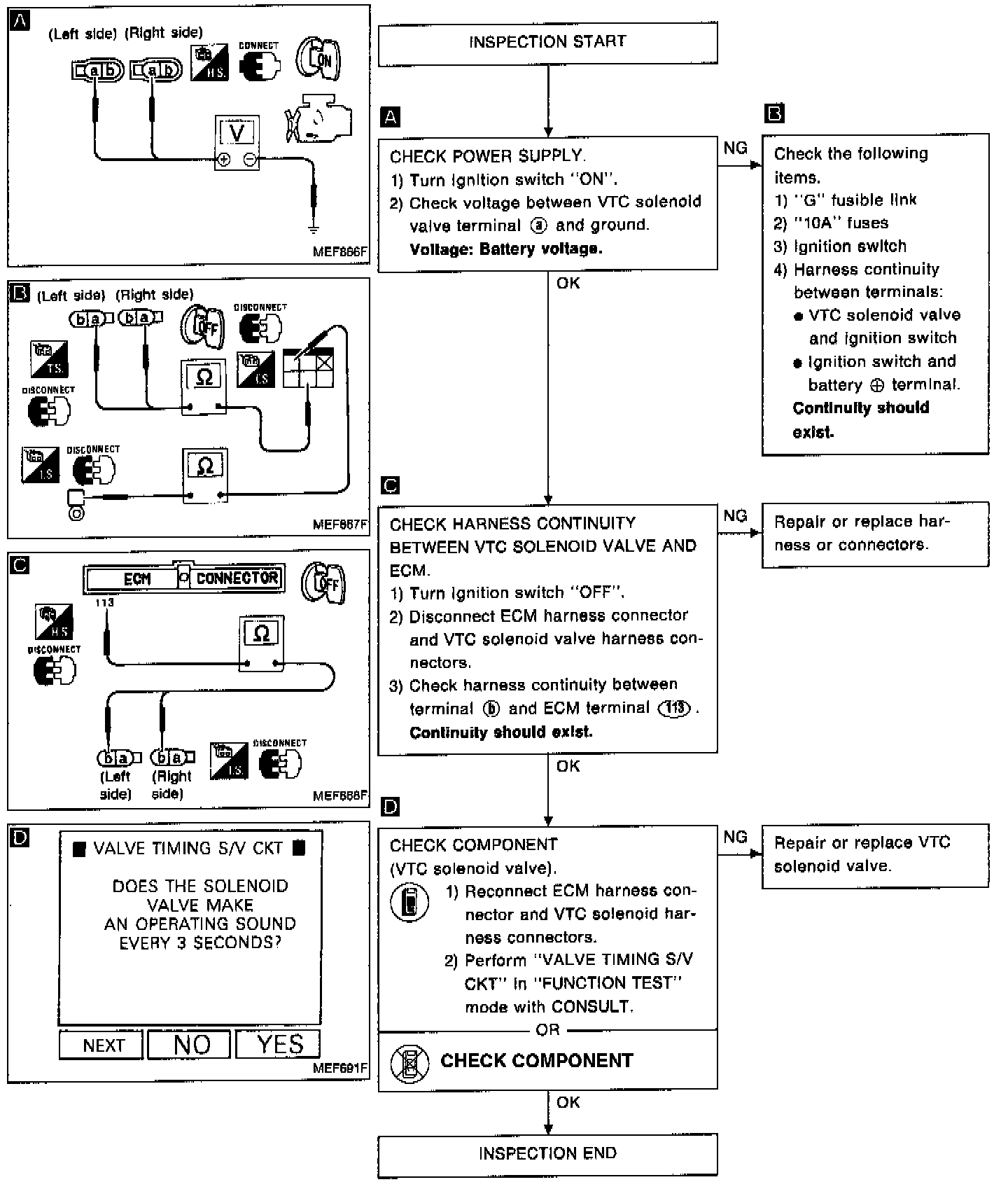

Valve Timing Control Solenoid Circuit Diagnostic Chart:
DIAGNOSTIC CHART

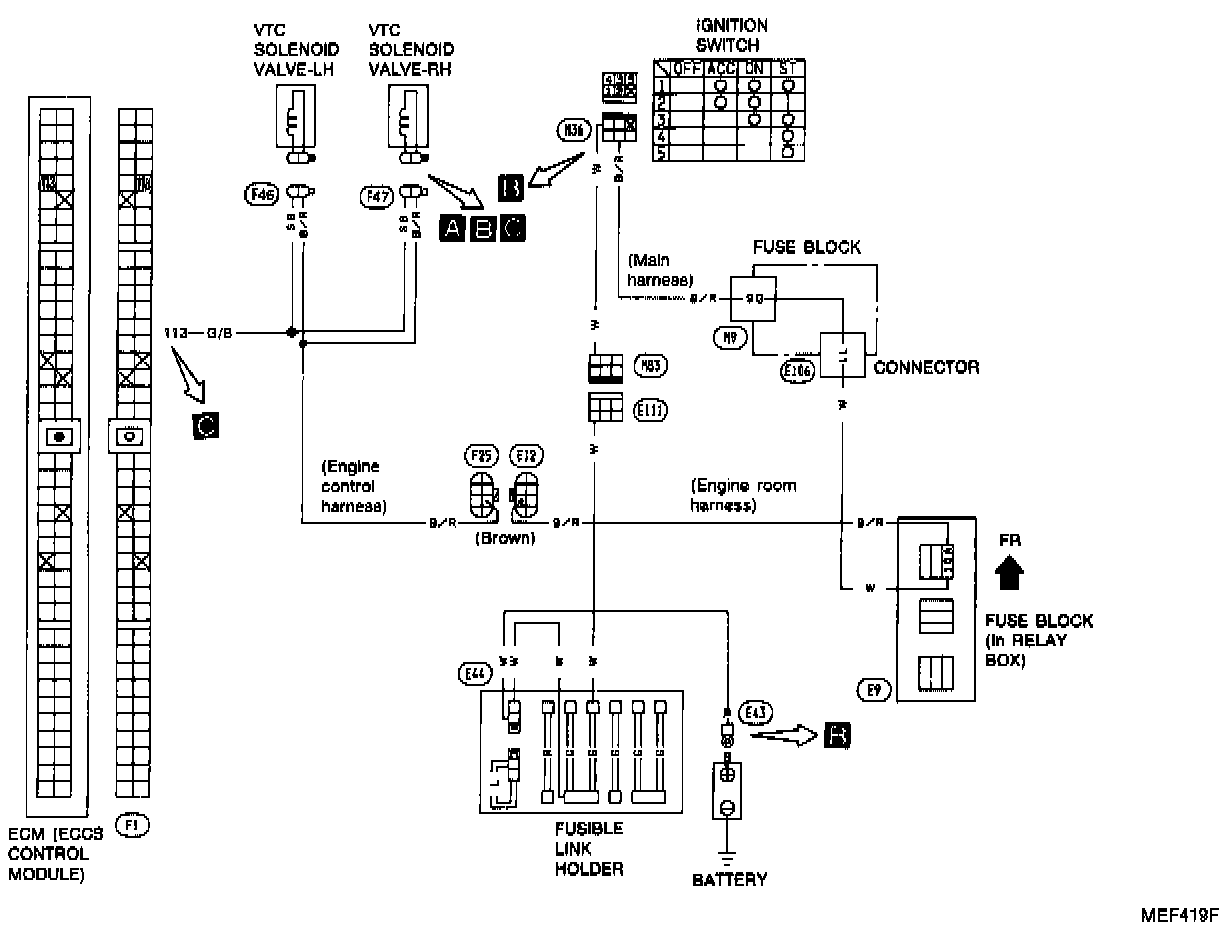

Valve Timing Control Solenoid Circuit:
CIRCUIT DIAGRAM
Harness Layout:
HARNESS LAYOUT
