Fuel Pressure Regulator Control

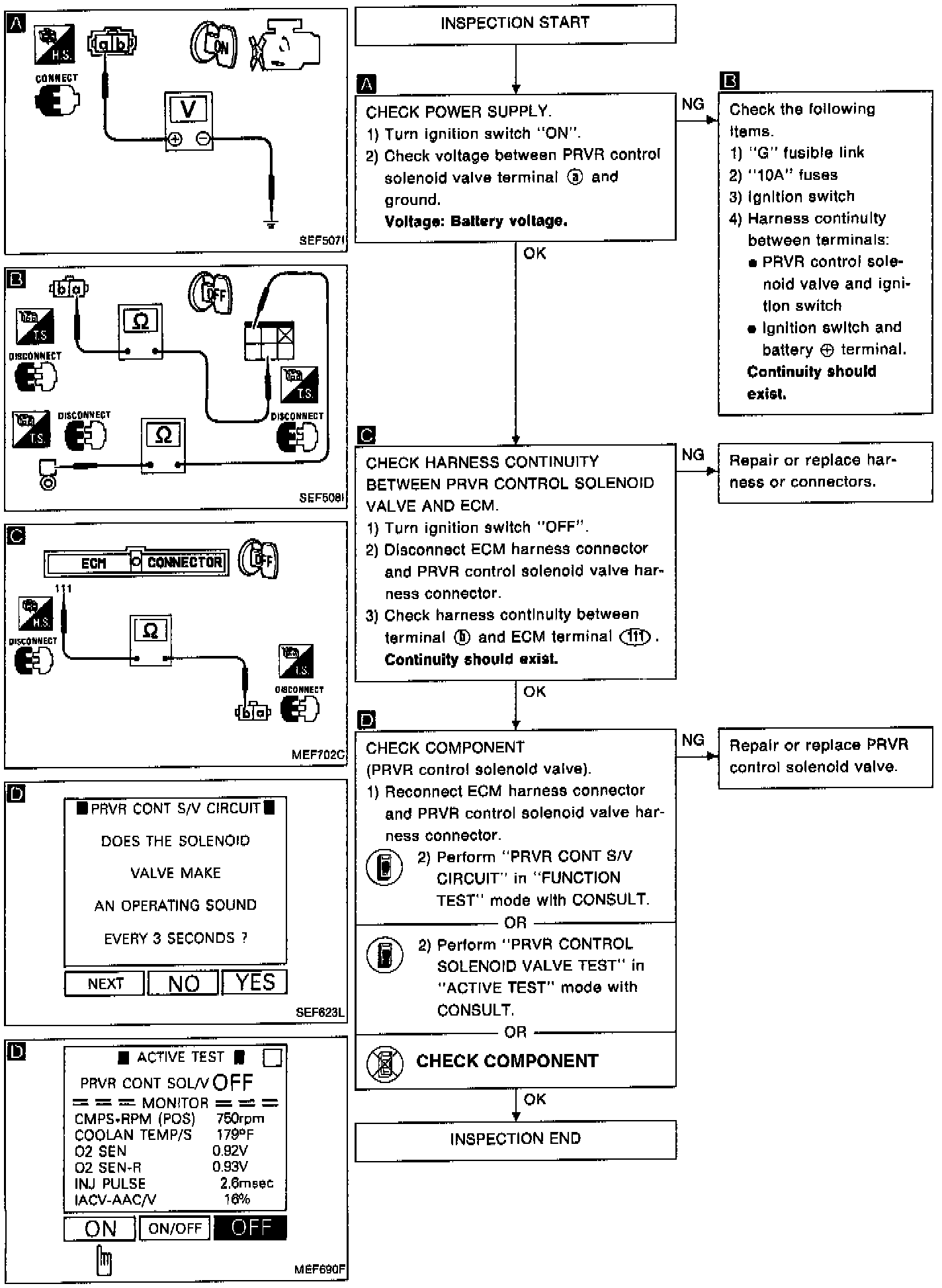

Fuel Pressure Control Solenoid (PRVR) Circuit Diagnostic Chart:





DIAGNOSTIC CHART

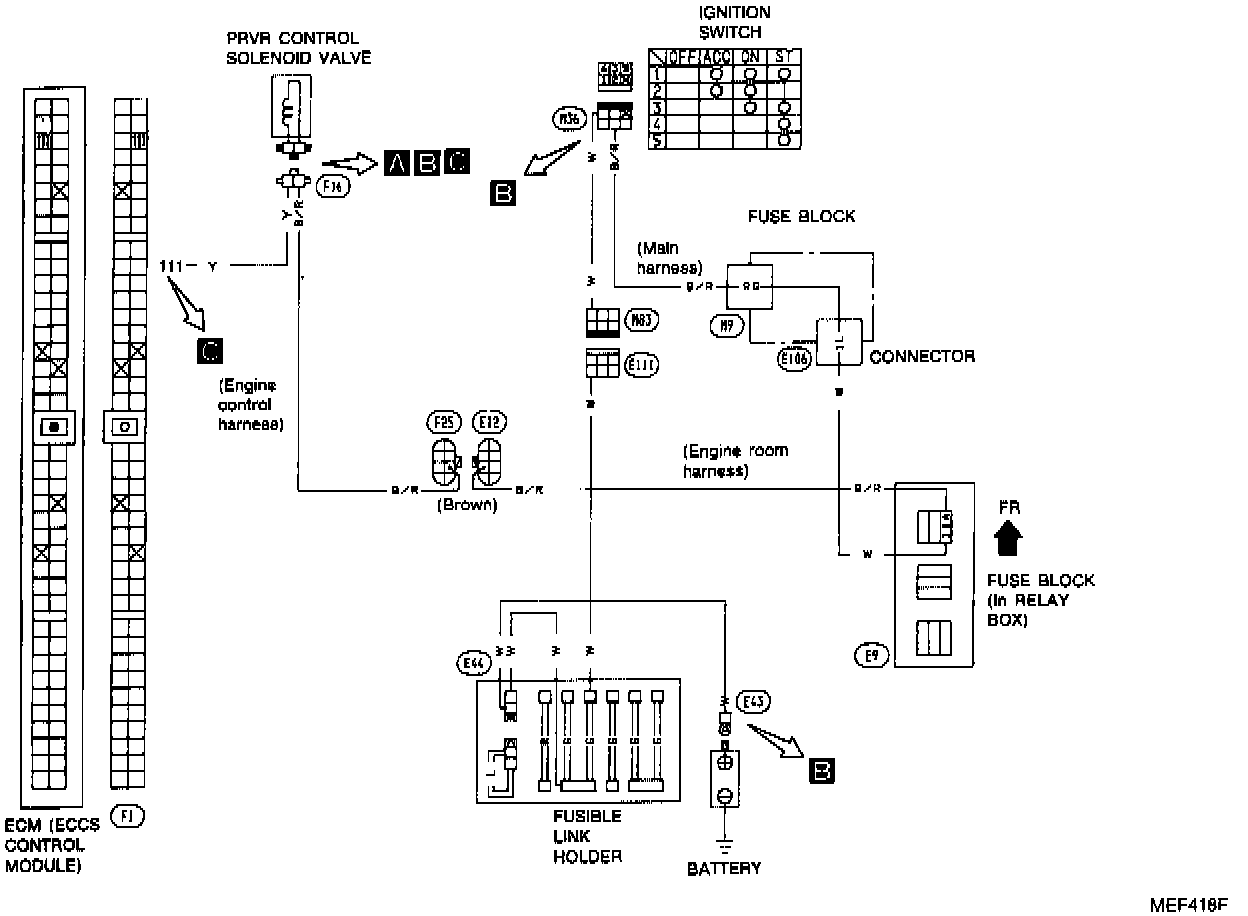

Fuel Pressure Control Solenoid (PRVR) Circuit:





CIRCUIT DIAGRAM

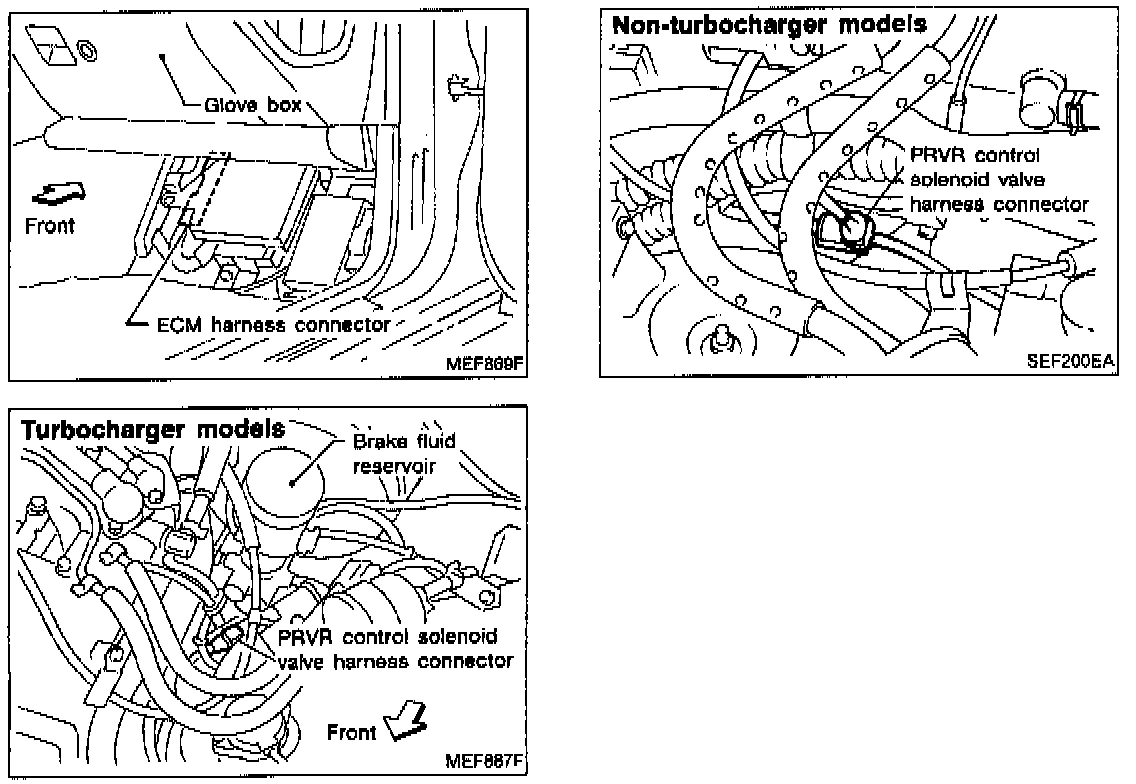

Harness Layout:





HARNESS LAYOUT
