Cooling Fan Control

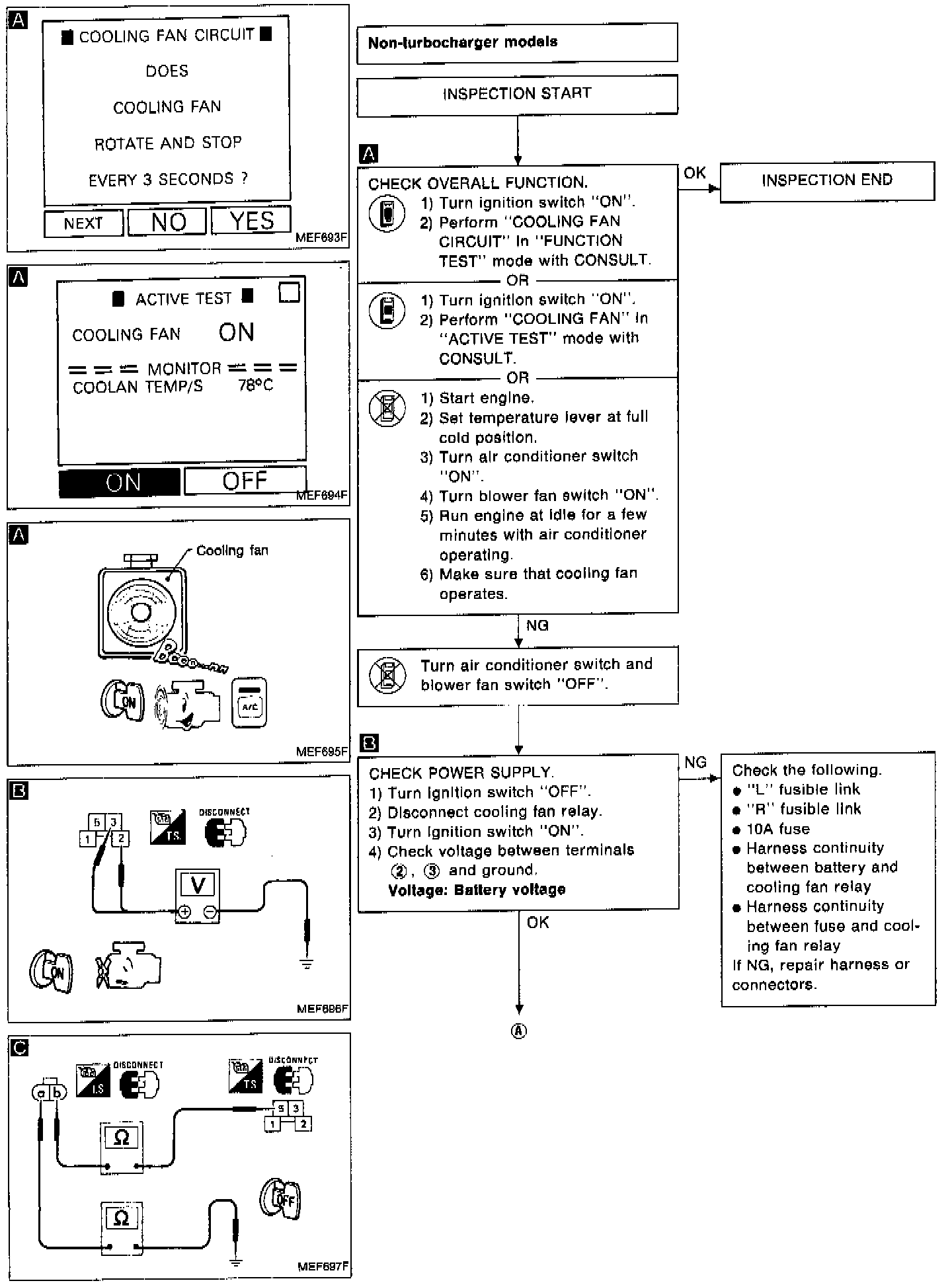

DIAGNOSTIC CHART

Cooling Fan Control Circuit Diagnostic Chart:

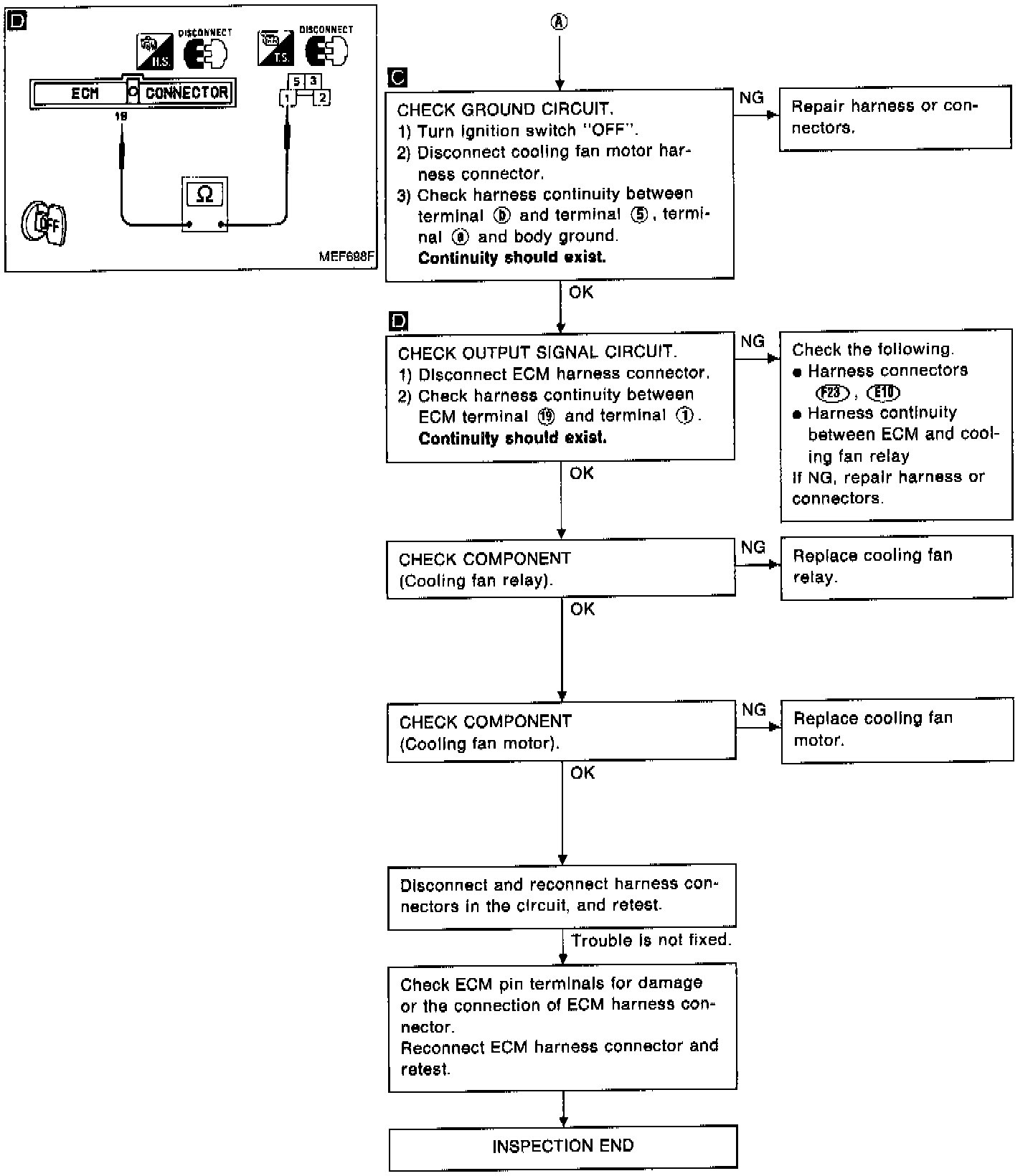

Cooling Fan Control Circuit Diagnostic Chart:






CIRCUIT DIAGRAM

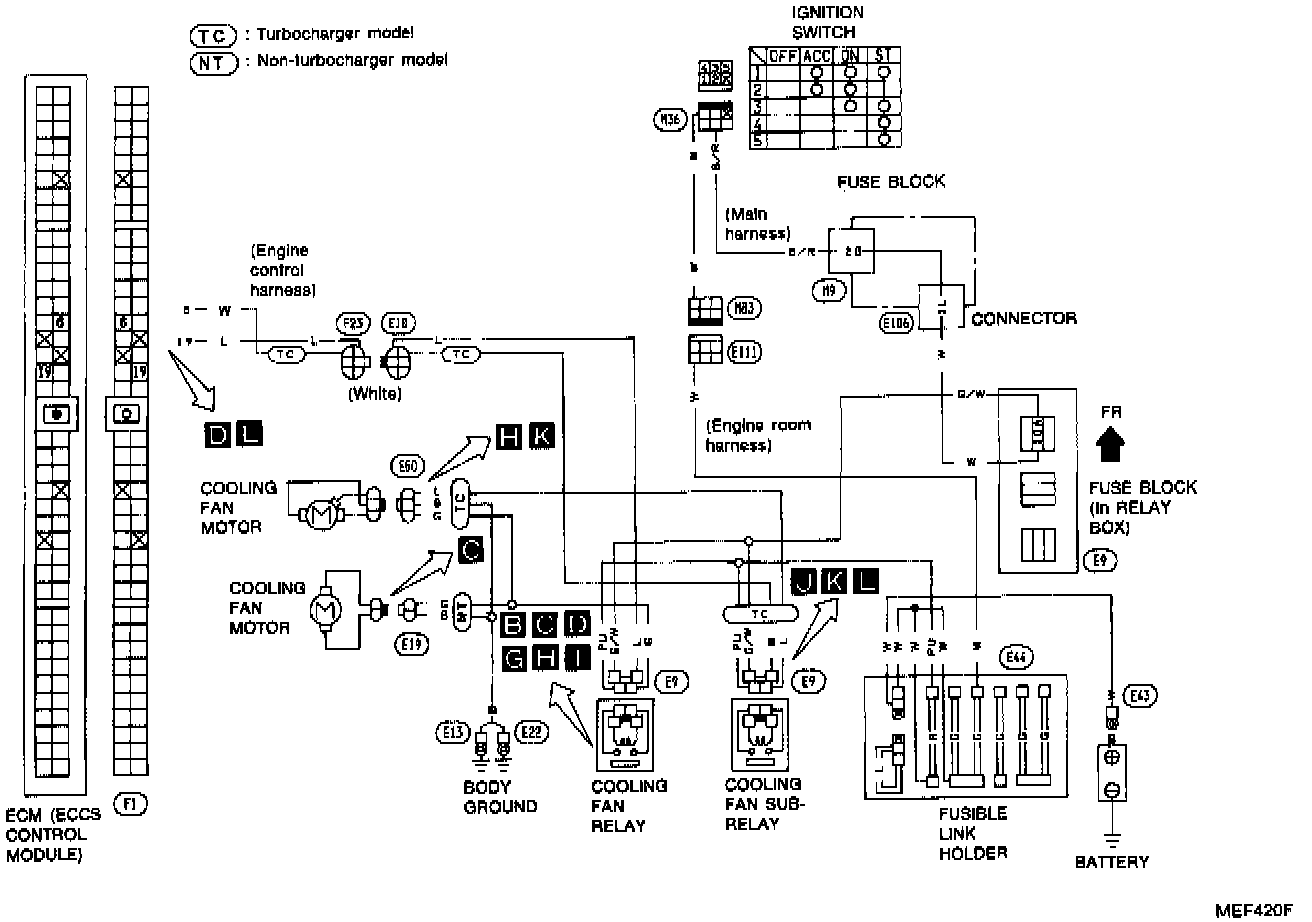

Cooling Fan Control Circuit:

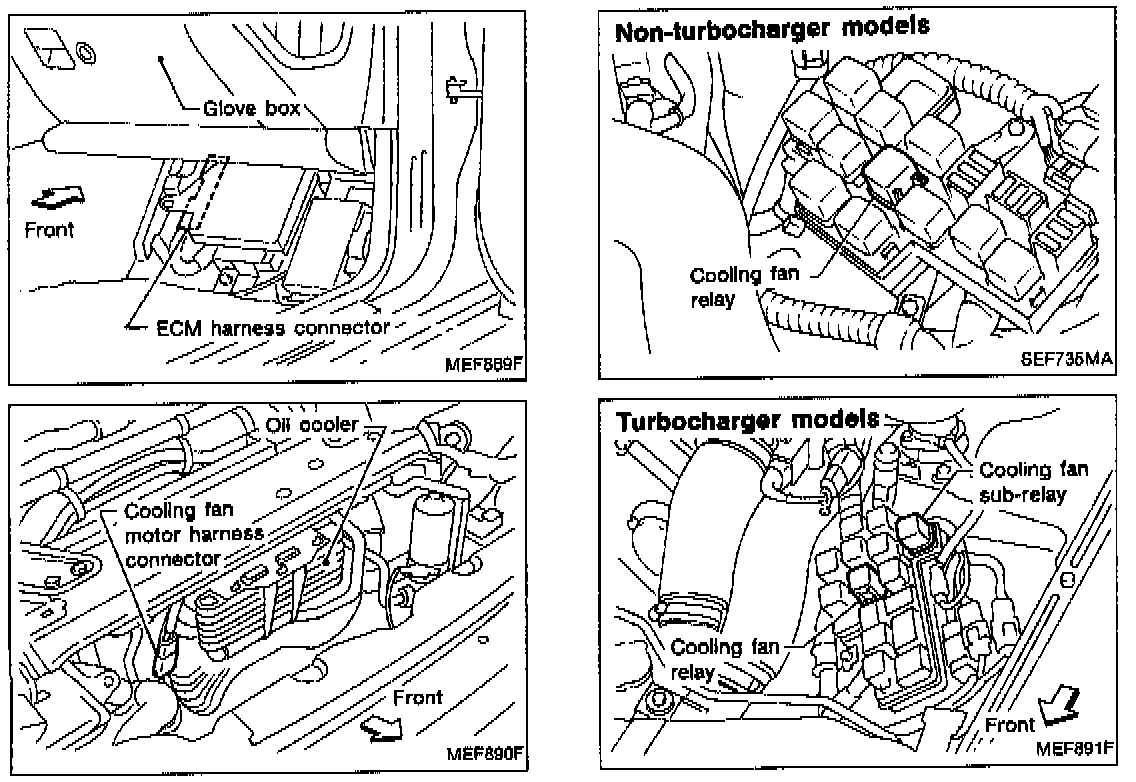

HARNESS LAYOUT

Harness Layout:
