300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Auxiliary Air Control (AAC) Valve Circuit
Auxiliary Air Control (AAC) Valve Circuit
IAC Valve-AAC Valve Circuit Diagnostic Chart:
DIAGNOSTIC CHART
IAC Valve-AAC Valve Circuit:

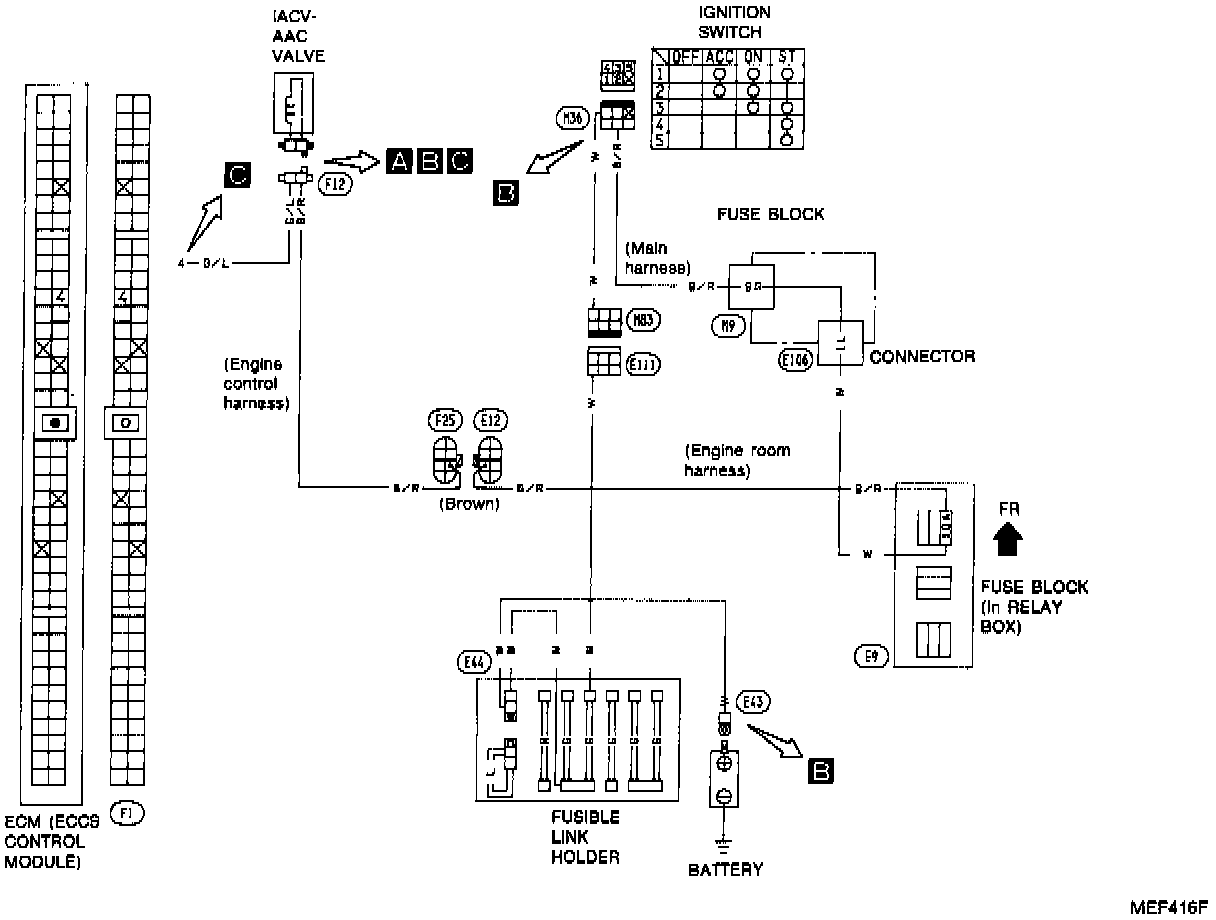

CIRCUIT DIAGRAM
Harness Layout:

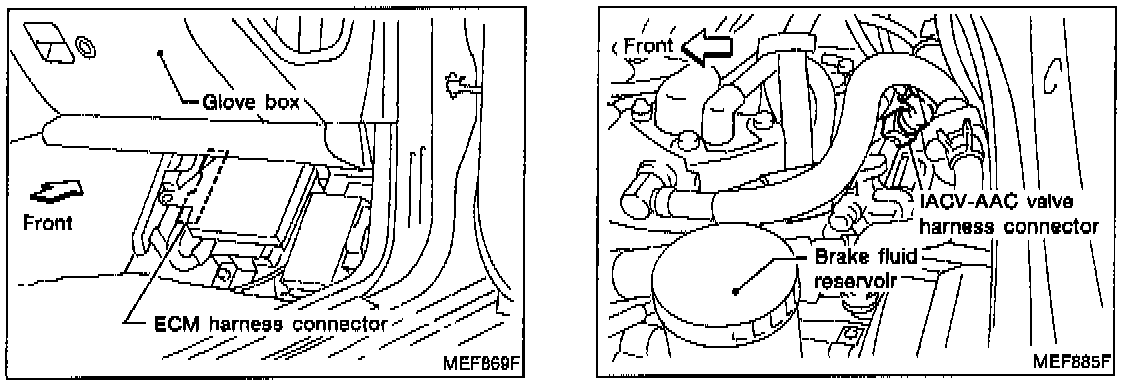

HARNESS LAYOUT
