Variable Valve Timing Solenoid: Testing and Inspection

Valve Timing Control Valve Test:

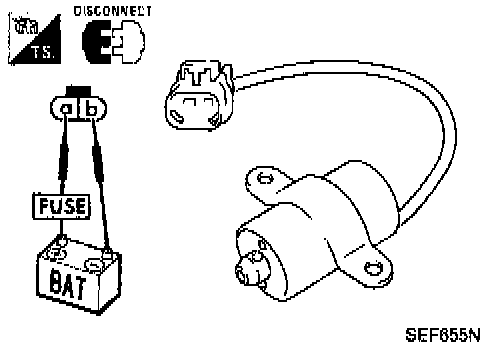

^ Check valve timing control solenoid valve for normal operation by supplying it with battery voltage between terminals "a" and "b".
^ If NG, replace solenoid valve.
