Camshaft Oil Seal: Service and Repair

Camshaft oil seal

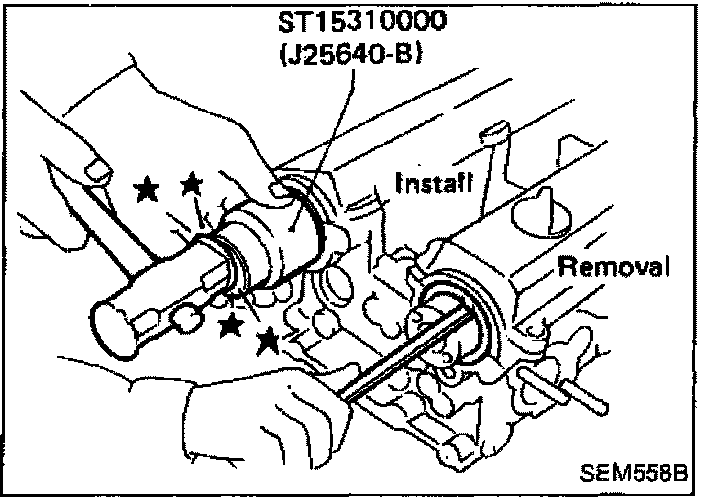

1. Remove timing belt and camshaft sprocket.
2. Remove rear belt cover and camshaft oil seal.

Be careful not to scratch camshaft

3. Apply engine oil to new camshaft oil seal and install it using suitable tool.
