Water Pump: Service and Repair

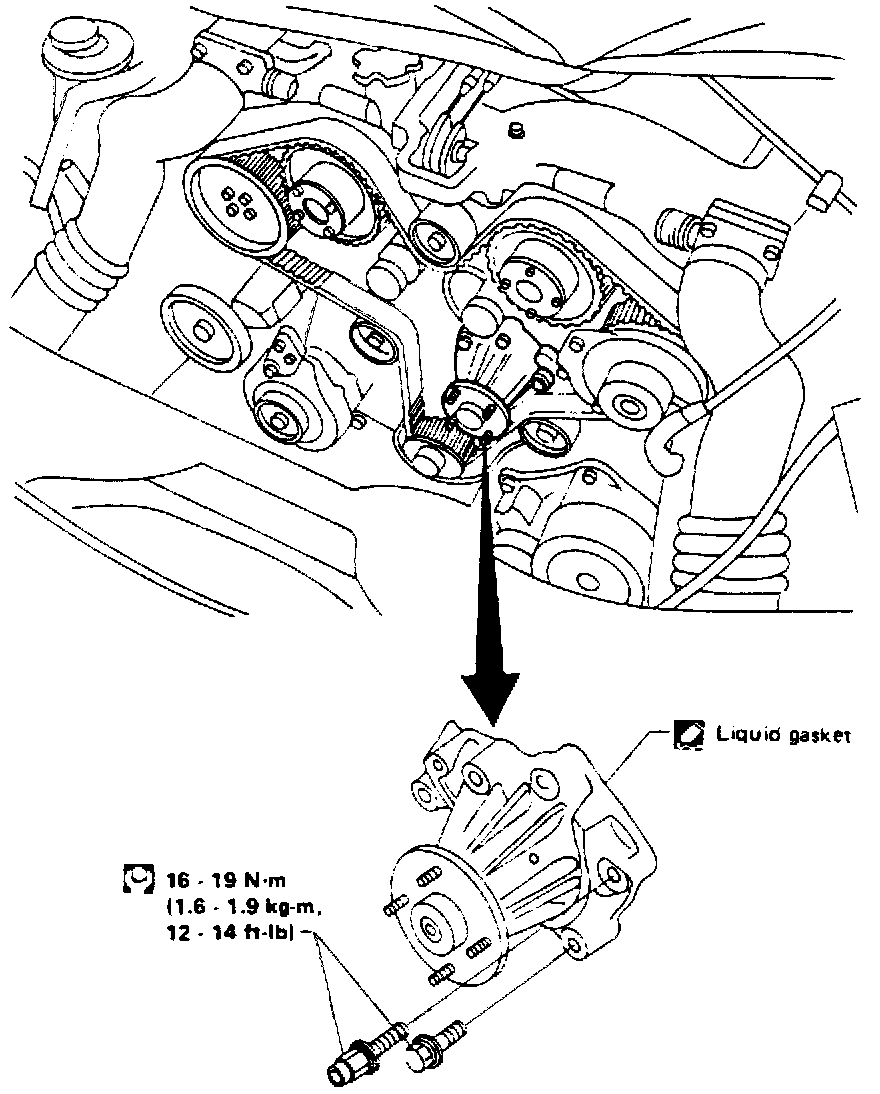

Fig. 21 Water Pump Replacement:

1. Disconnect battery ground cable, then drain engine and radiator coolant.
2. Remove undercover, radiator, drive belts, cooling fan and coupling, water inlet and outlet, crank pulley and timing belt cover.
3. Remove water pump, Fig. 21.
4. Reverse procedure to install.
