Radiator: Service and Repair

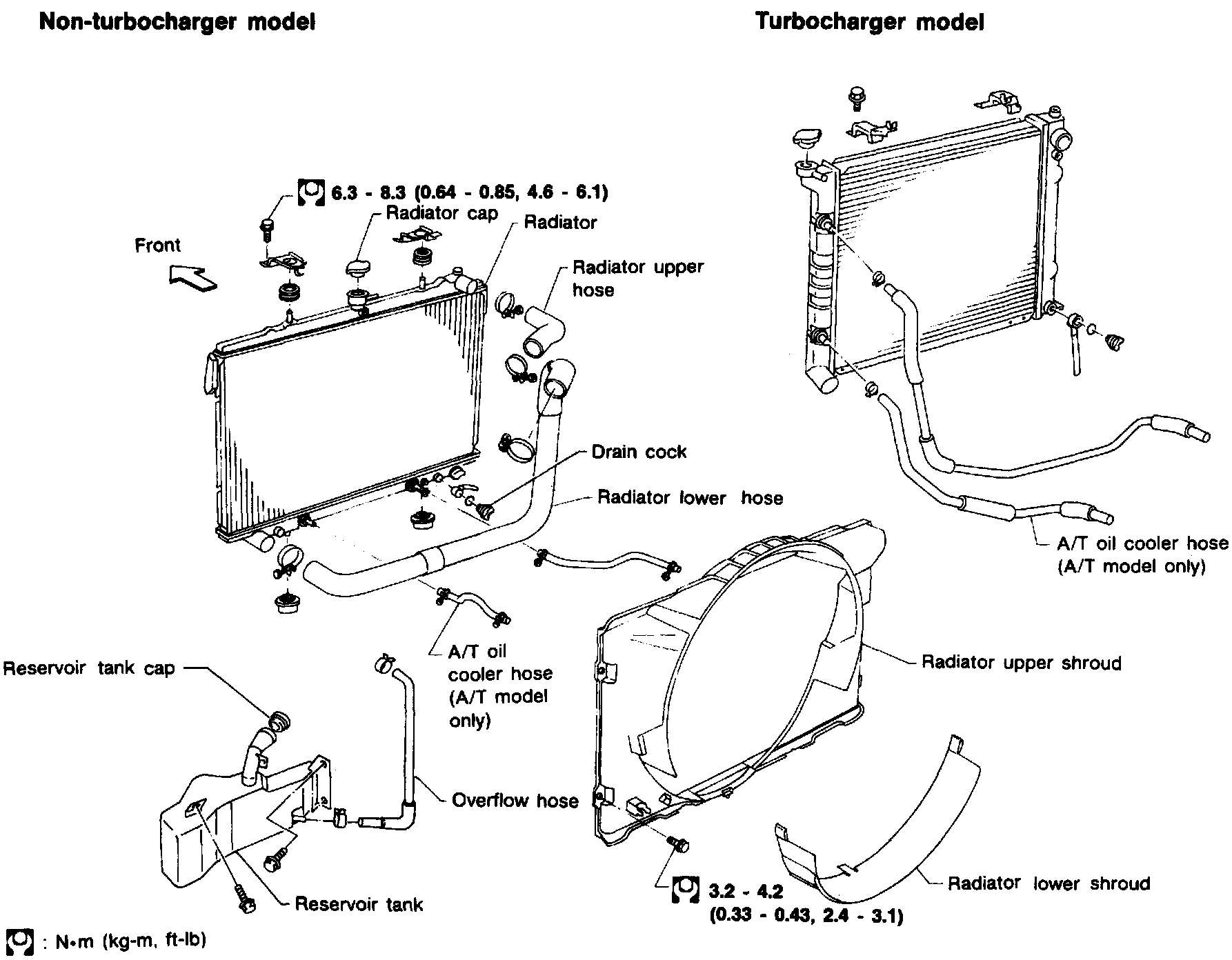

Fig. 22 Radiator Replacement:

1. Remove undercover, then drain coolant.
2. Disconnect upper and lower radiator hoses, Fig. 22.
3. On models with automatic transaxle, remove ATF cooler lines.
4. Remove lower shroud.
5. Remove radiator.
6. Reverse procedure to install.
