Temperature Gauge: Testing and Inspection

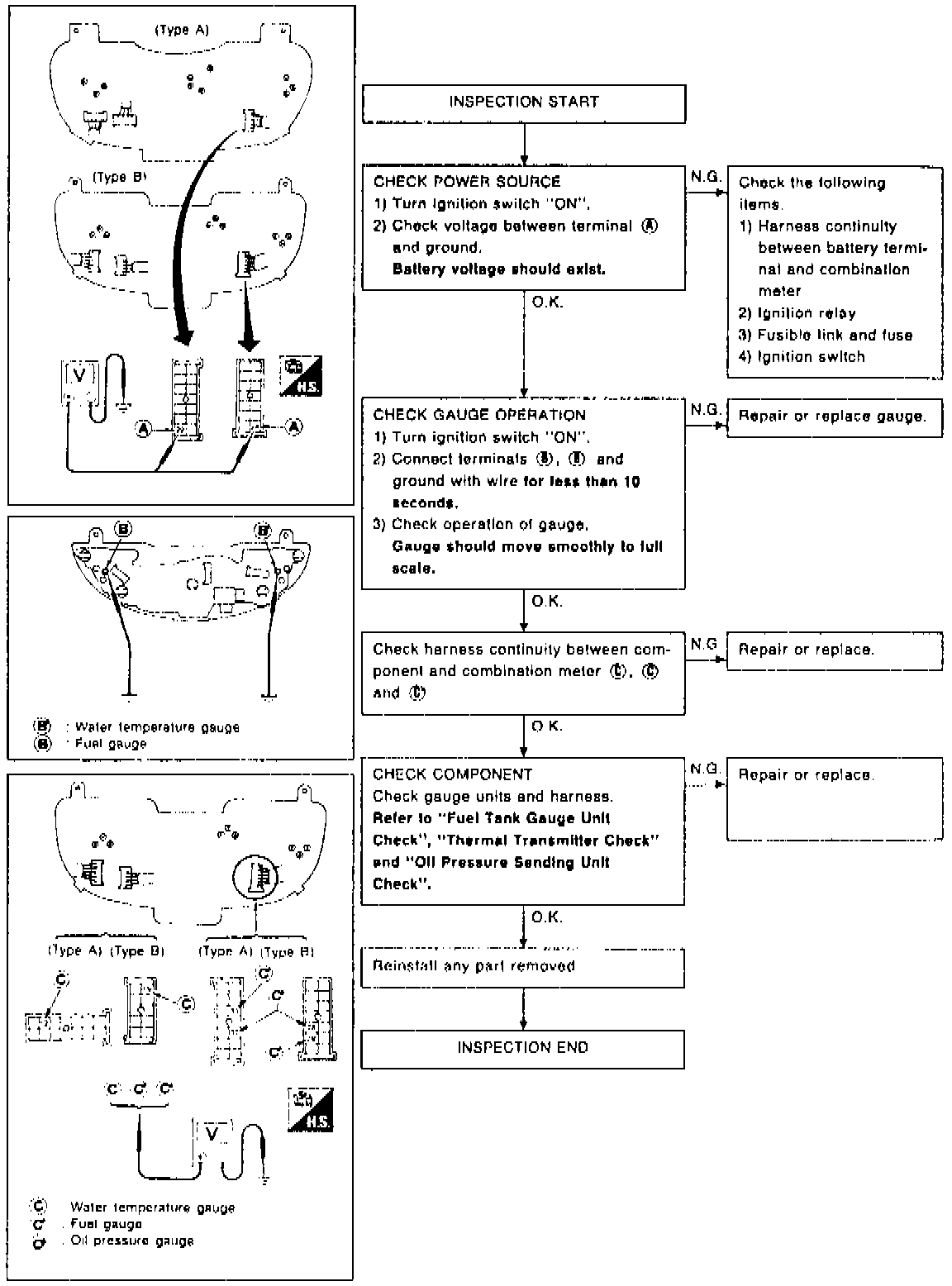

Fig. 18 Fuel Gauge & Water Temperature Gauge Inspection:




Refer to Fig. 18 for fuel and/or temperature gauge diagnosis.
