Nissan-Datsun
>>
1994
>>
300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk Lamp
Trunk Lamp

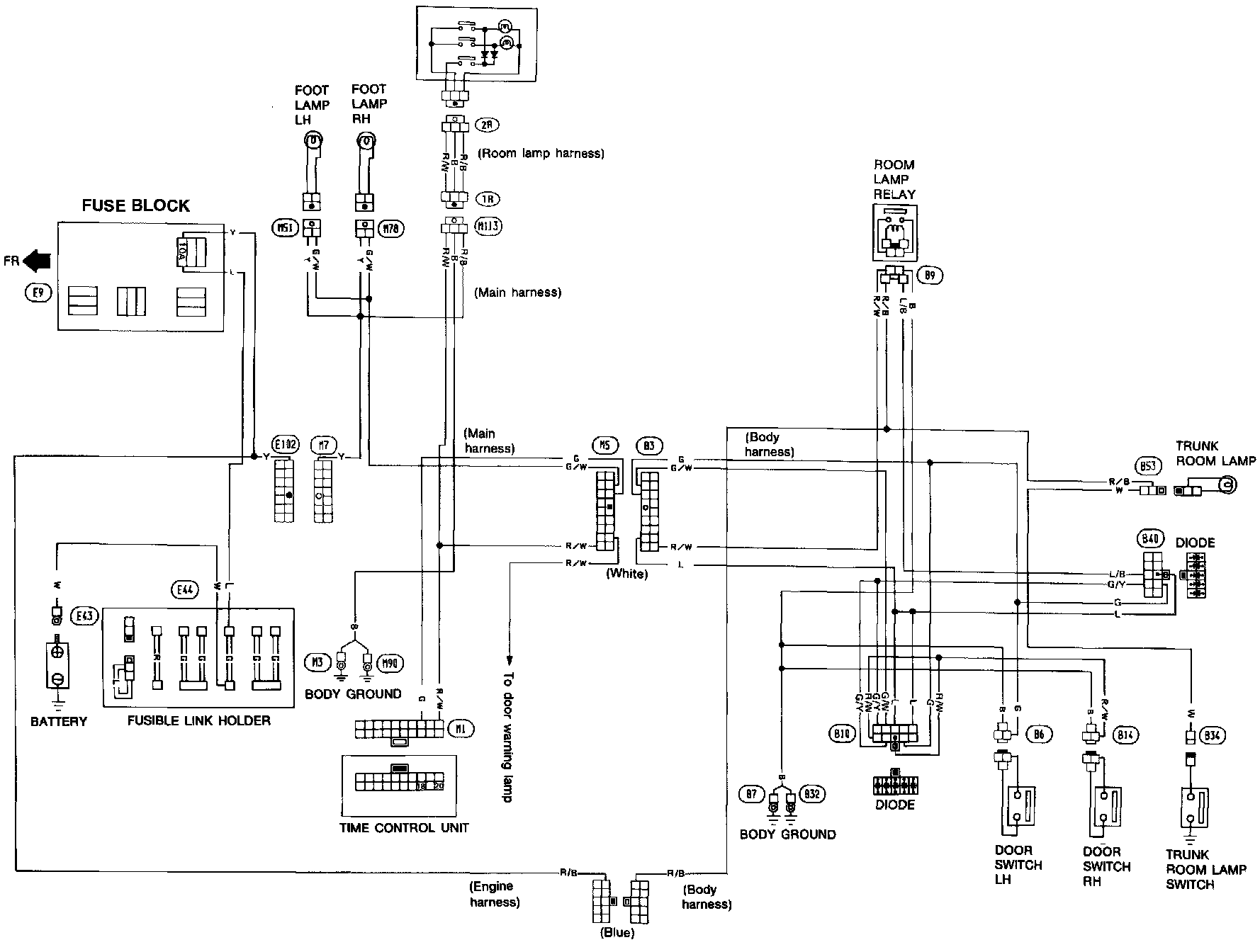

Interior, Spot, Foot And Luggage Room Lamps (Convertible):
