Home >> Nissan-Datsun >> 1994 >> 300ZX Convertible V6-2960cc DOHC (VG30DE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> A.S.C.D. Control Cannot Be Set Properly

A.S.C.D. Control Cannot Be Set Properly

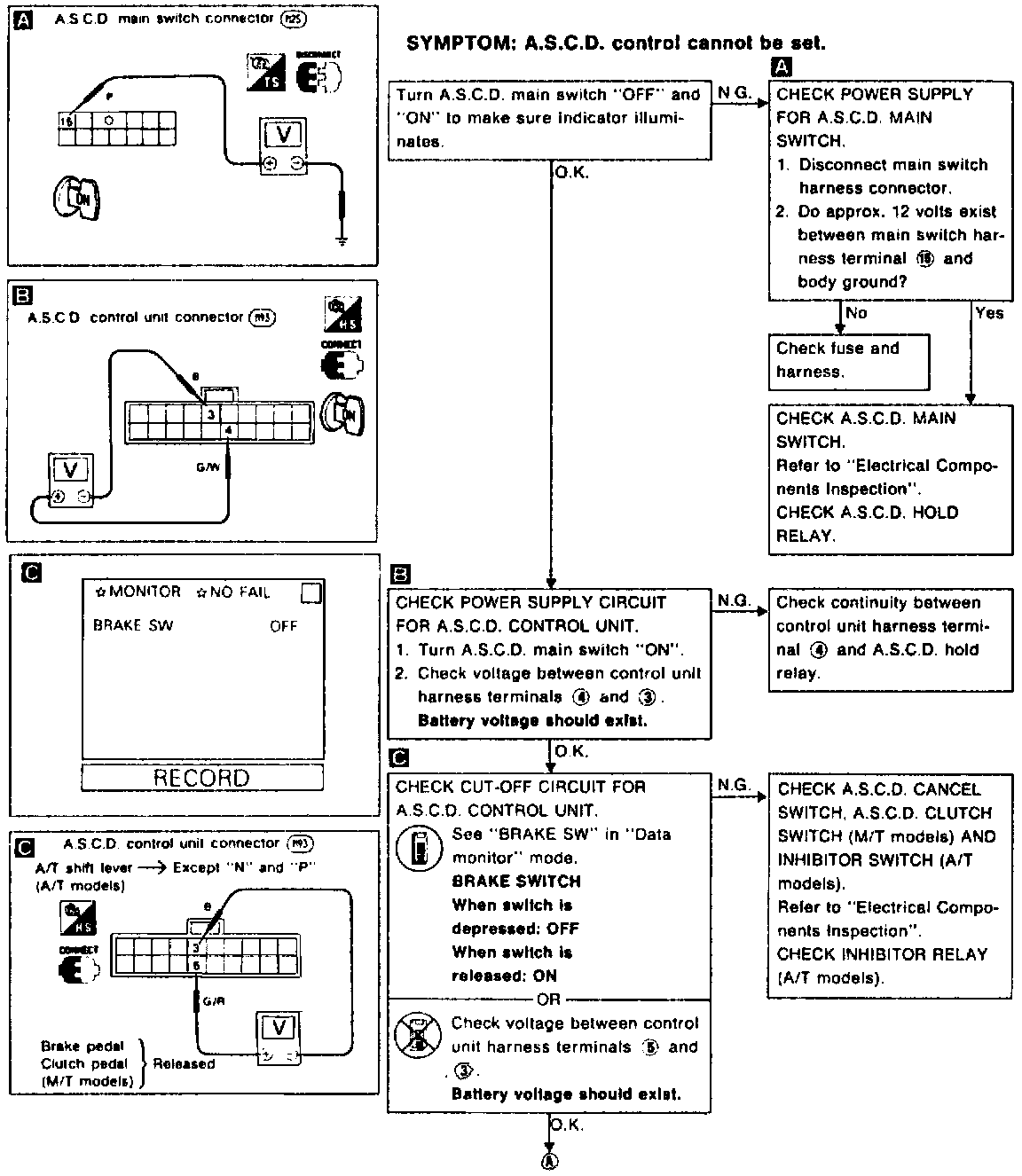

Fig. 64 Test 1: ASCD Control Unit Cannot Be Set (Part 1 Of 3):

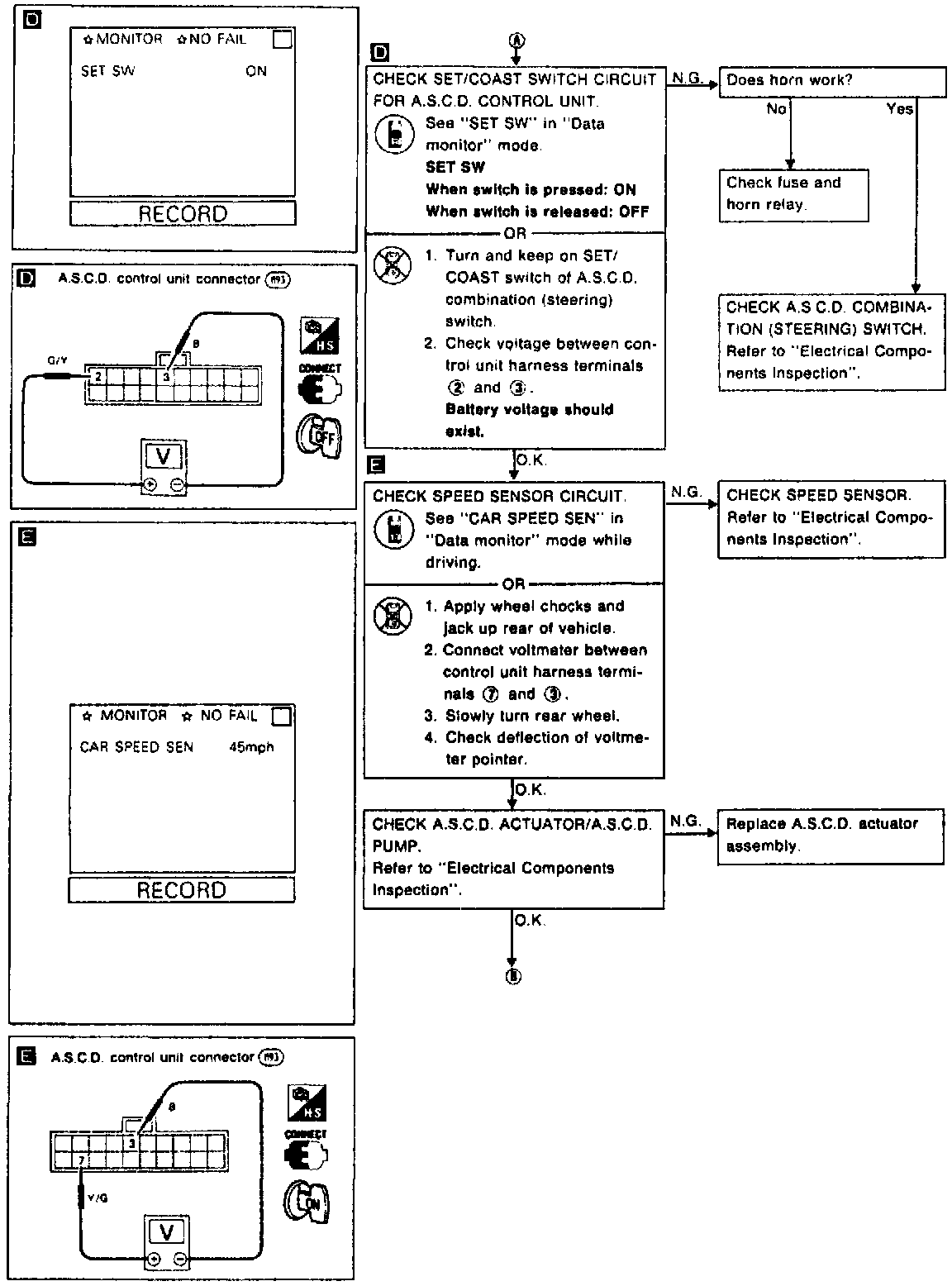

Fig. 64 Test 1: ASCD Control Unit Cannot Be Set (Part 2 Of 3):

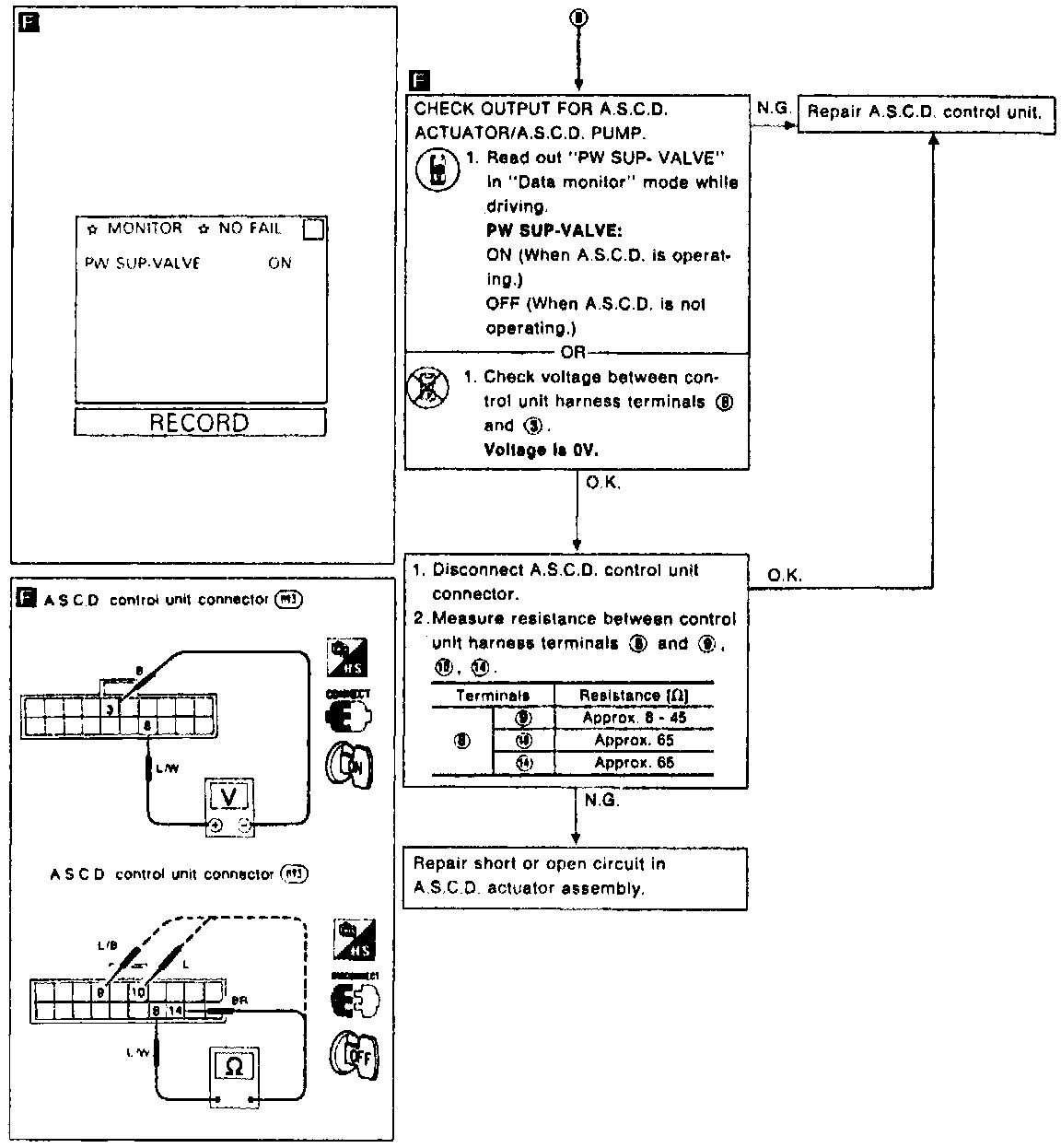

Fig. 64 Test 1: ASCD Control Unit Cannot Be Set (Part 3 Of 3):
