Diagnostic Test Procedure 4

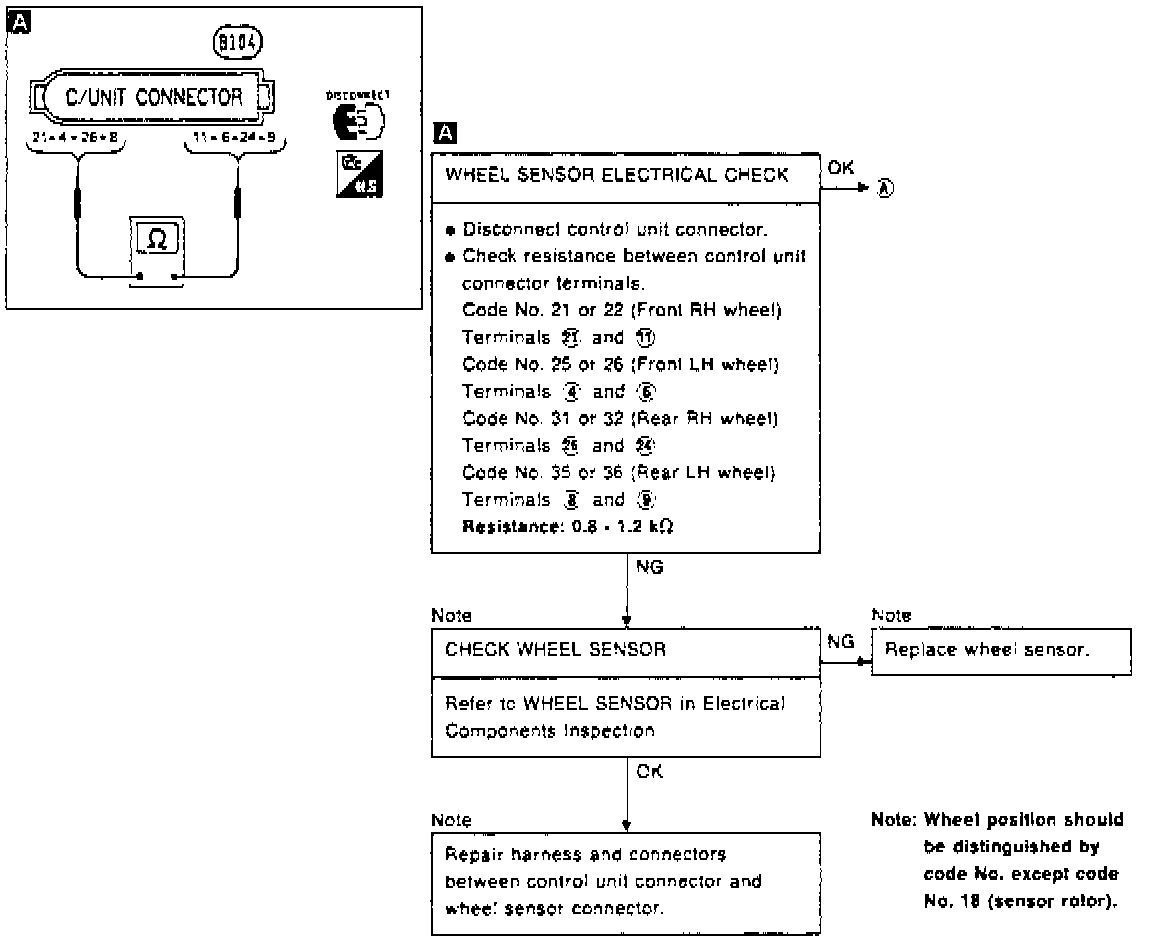

Fig. 121 Test 4: Wheel Sensor Or Rotor (Part 1 Of 2):




PART 1 OF 2

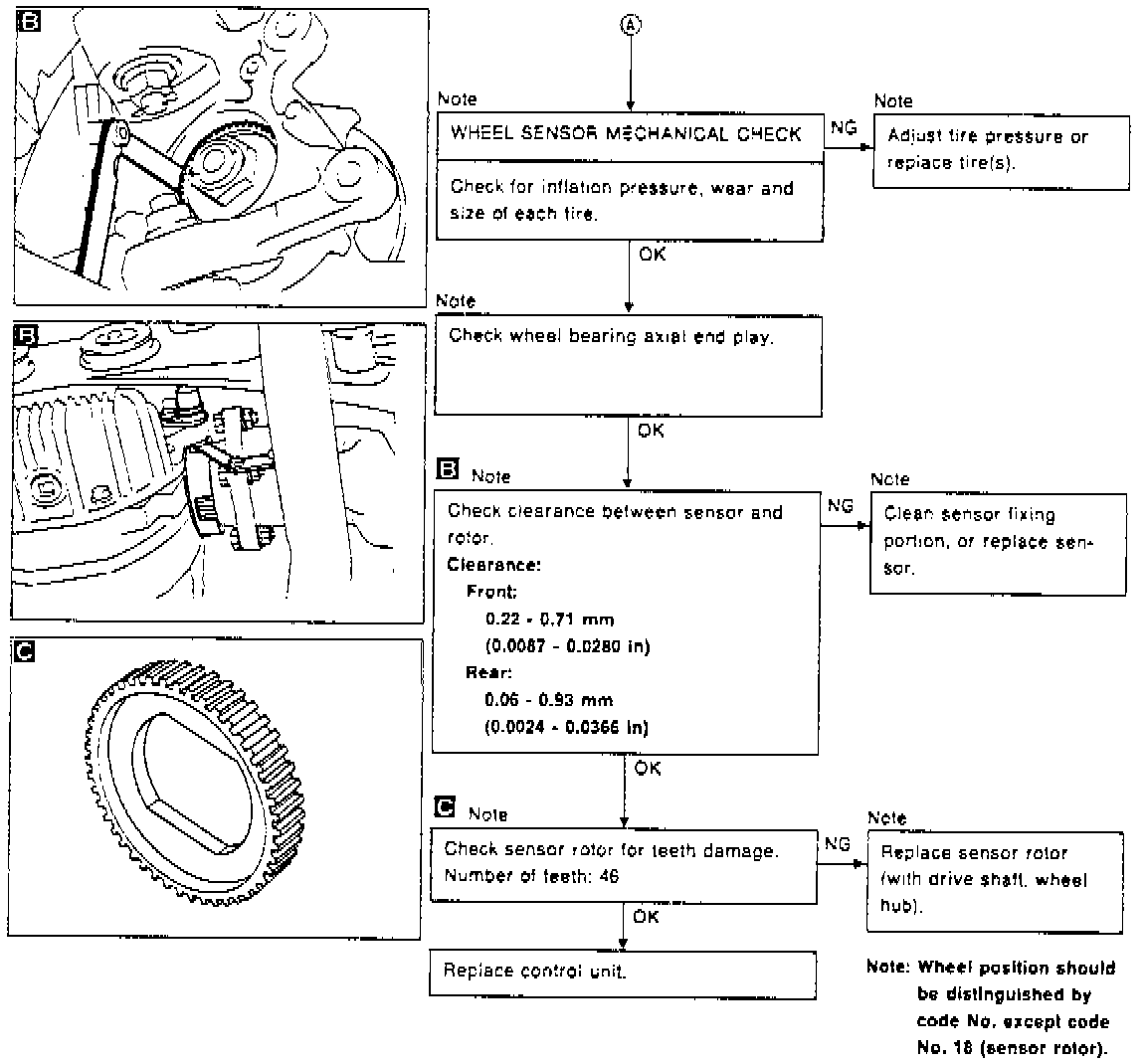

Fig. 121 Test 4: Wheel Sensor Or Rotor (Part 2 Of 2):




PART 2 OF 2
