Nissan-Datsun
>>
1994
>>
300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Convertible Top
>>
Diagrams
>>
Electrical Diagrams
>>
Roof Opener System
Roof Opener System

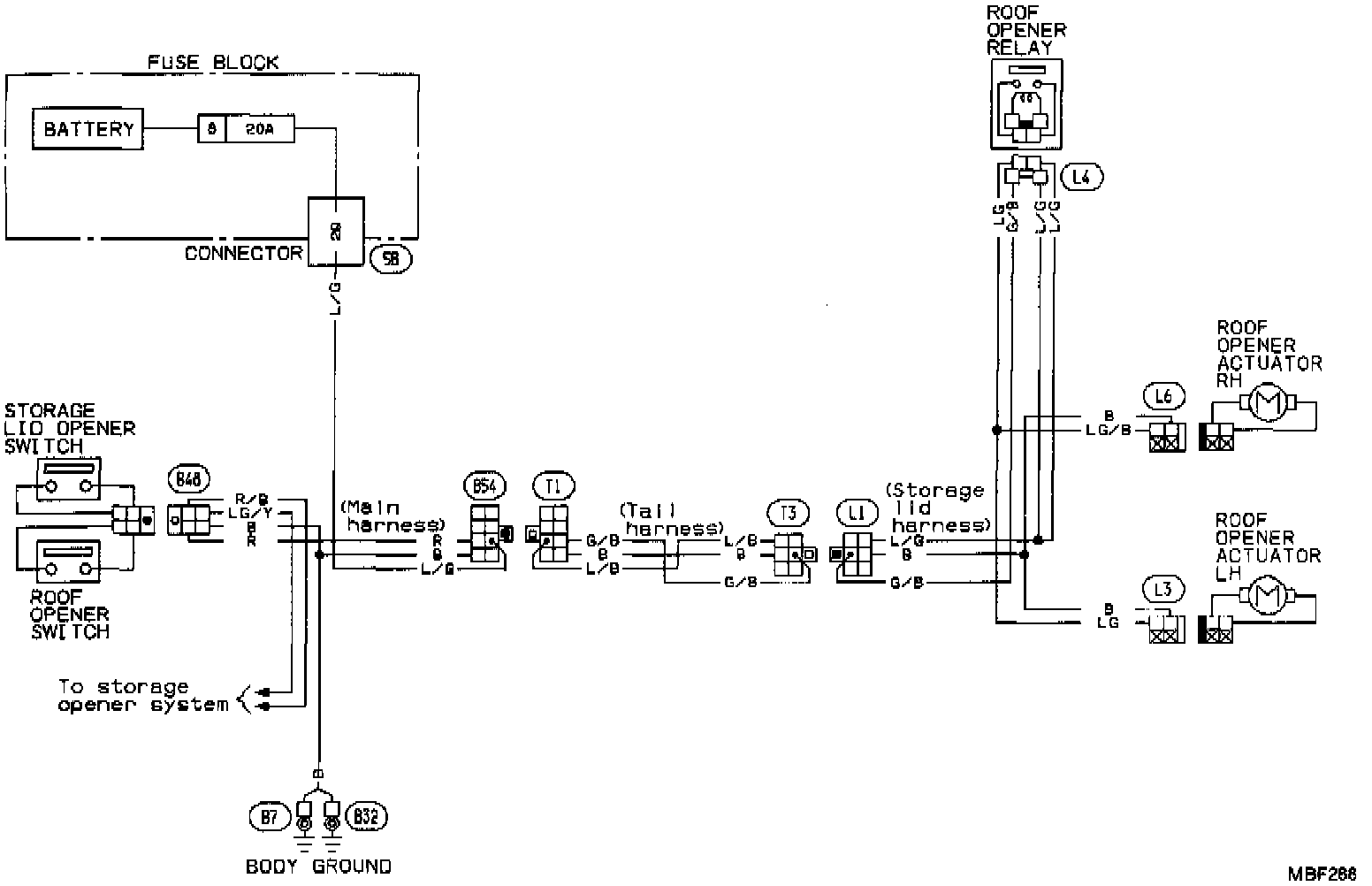

Convertible Roof- Roof Opener System:
