DTC 35
DTC 35

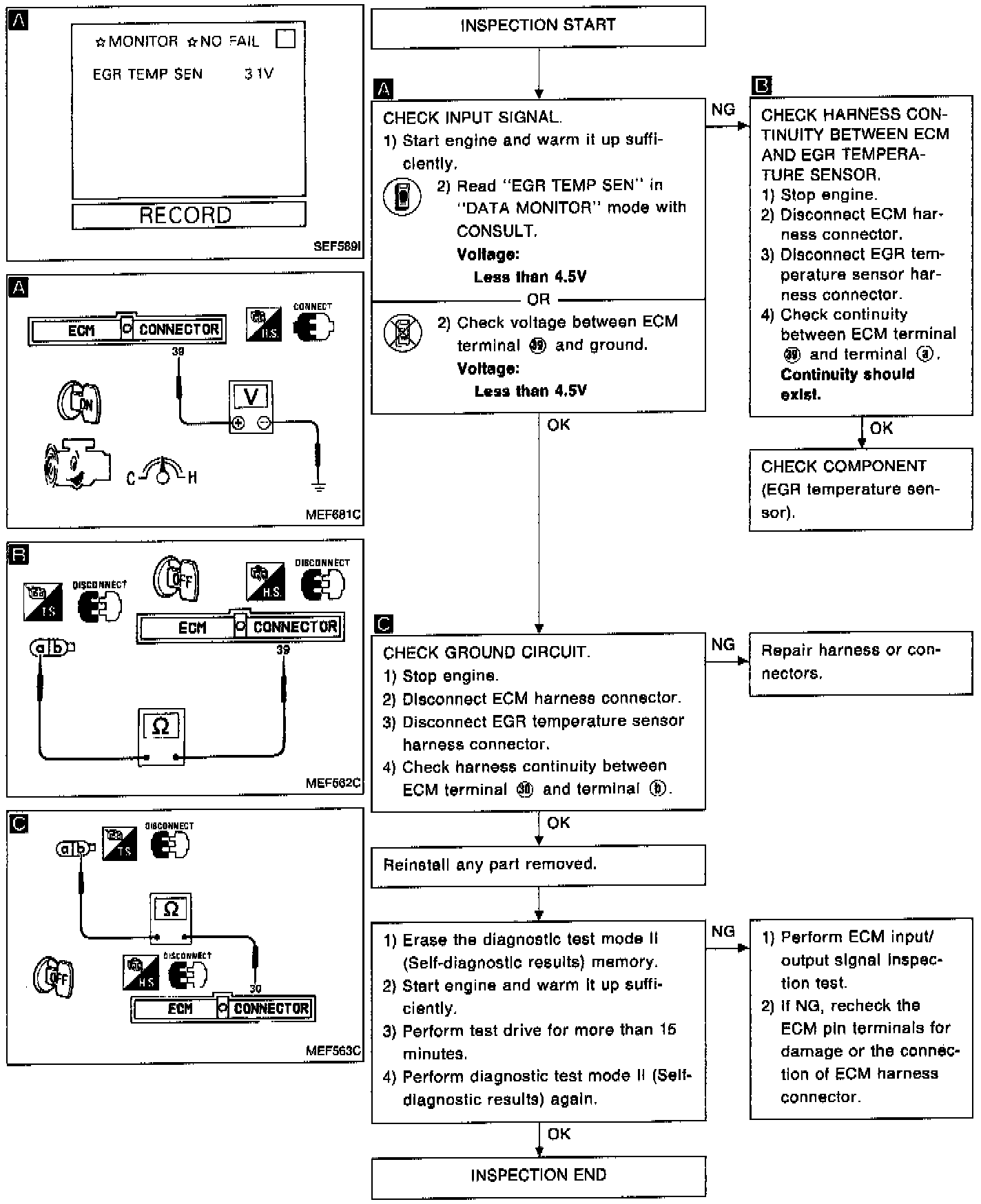

DTC 35 EGR Temperature Sensor Diagnostic Chart:
DIAGNOSTIC CHART
EGR Temperature Sensor Circuit:
CIRCUIT DIAGRAM

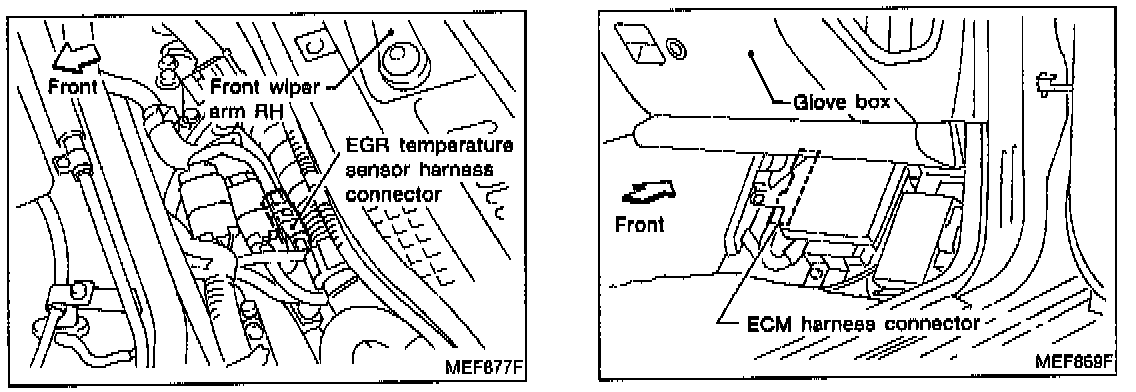

Harness Layout:
HARNESS LAYOUT
