DTC 33
DTC 33

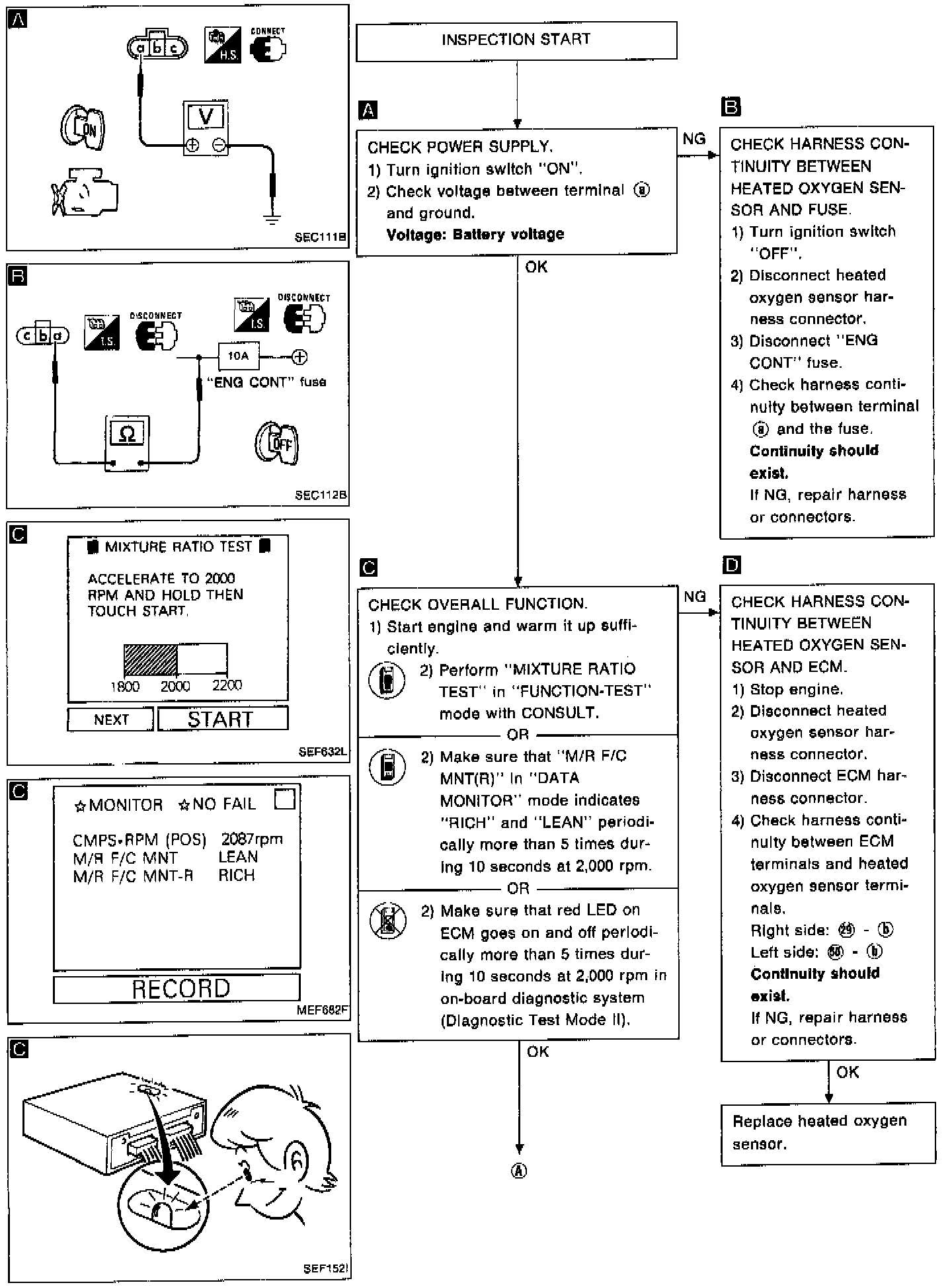

DTC 33/53 O2 Sensor Diagnostic Chart:
DTC 33/53 O2 Sensor Diagnostic Chart:

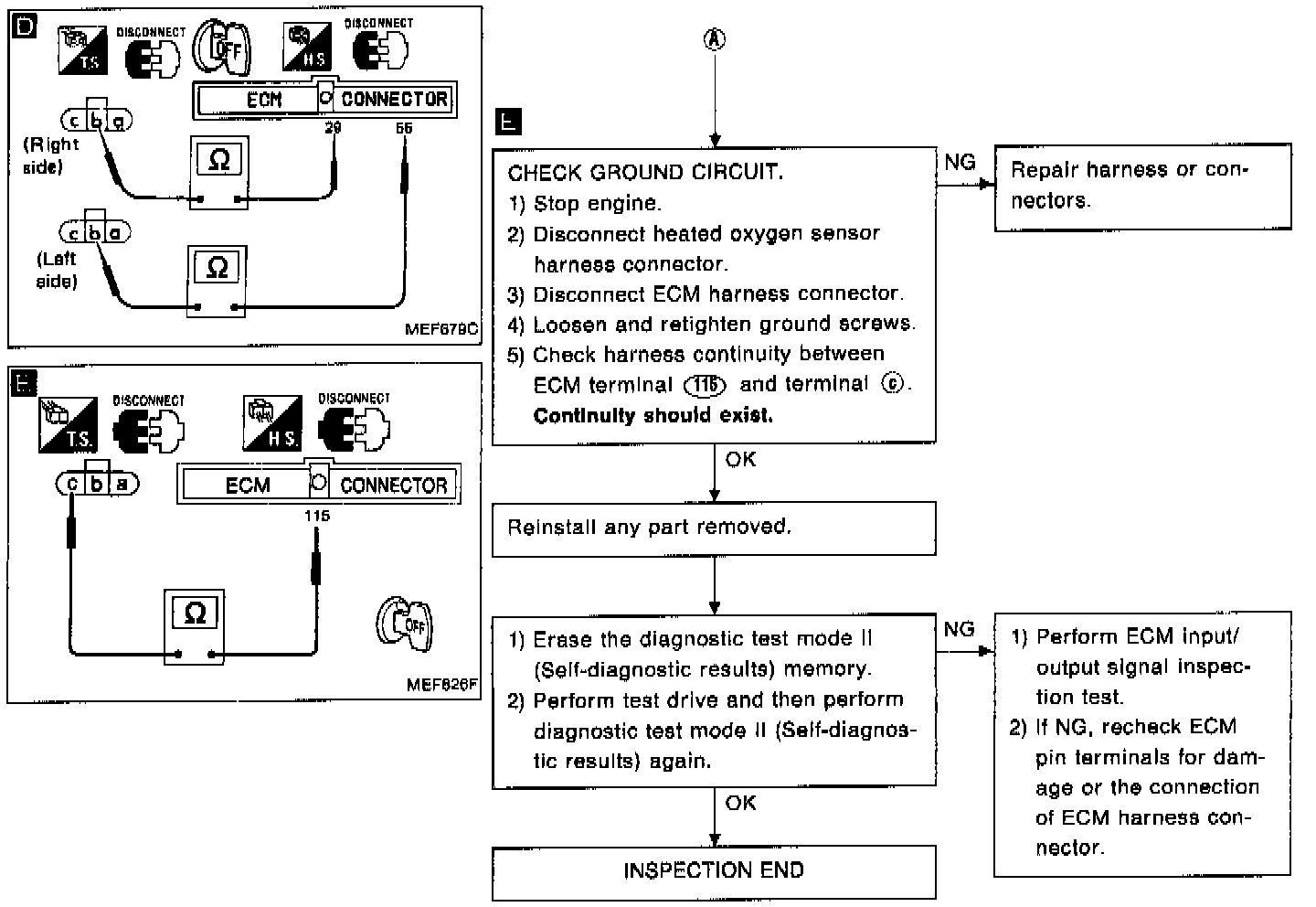

DIAGNOSTIC CHART

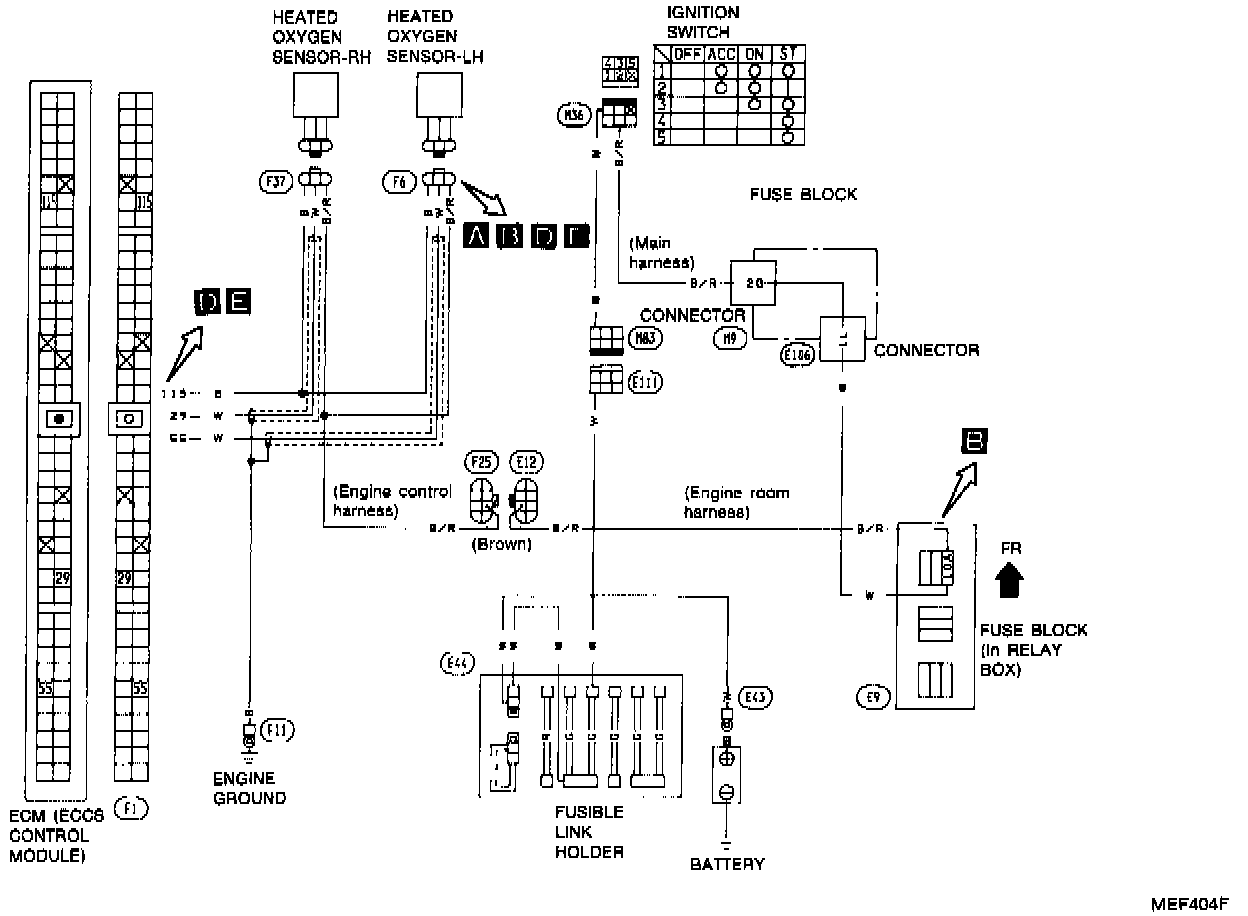

O2 Sensor Circuit:
CIRCUIT DIAGRAM

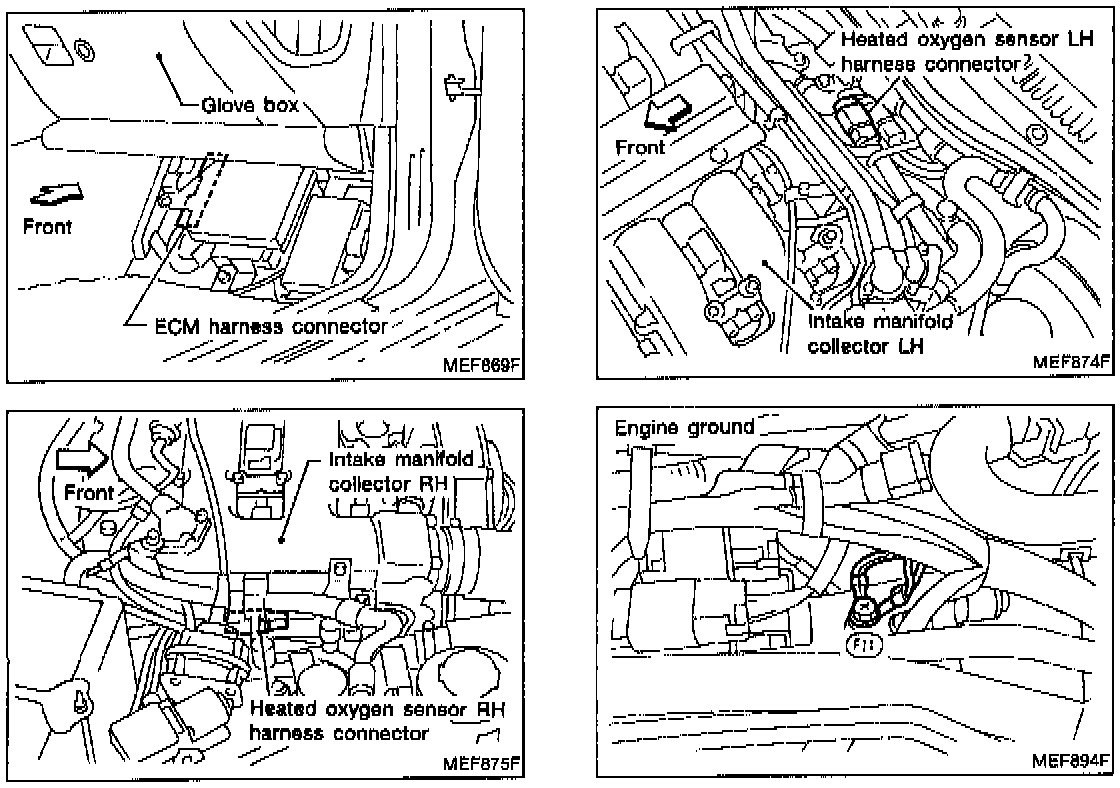

Harness Layout:
HARNESS LAYOUT
